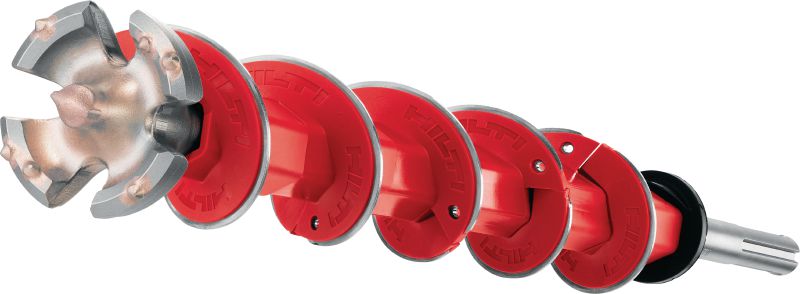

TE-Y-GB (SDS Max) Cruciform drill bit
Bell-shaped bit TE-Y GB 66/59-2 1/2" #2355263
SDS Max (TE-Y) cruciform hammer drill bit for larger-diameter drilling into concrete and masonry
- Base material: Concrete, Masonry, Brick, Sand-lime block
- Working mode: Hammer drilling
- Diameter: 66 mm
ultimate
Choose options
Diameter
- 66 mm
Working length
- 450 mm
Length
- 590 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
AUD 815.00
AUD 815.00 / 1 Piece
Technical Data
Base material
Concrete, Masonry, Brick, Sand-lime block
Working mode
Hammer drilling
Diameter
66 mm
Length
590 mm
Working length
450 mm
Product class
Ultimate
Documents
pdf Operating Instruction TE-Y-GB, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 2.7 MB ]
Features & Applications
Features
- Extreme durability – brazed hard metal-carbide-tipped head means you can drill more with the same cruciform bit
- Fast, smooth drilling – large helix engineered to efficiently transport dust away from the tip of the drill bit
- Easily replaceable helix – you can further prolong the lifespan of these cruciform drill bits by replacing worn helix segments on the jobsite
- Various lengths available – choose from multiple working lengths of steel core with 6 or 9 exchangeable helix segments, to best suit drilling through- or blind holes
- Helix segments and lockring are available as spare parts
Applications

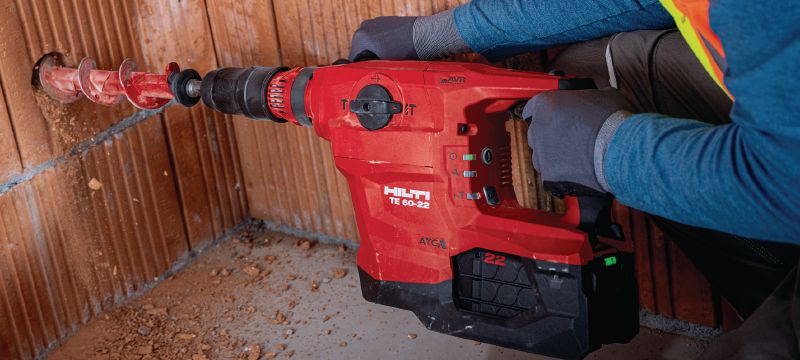

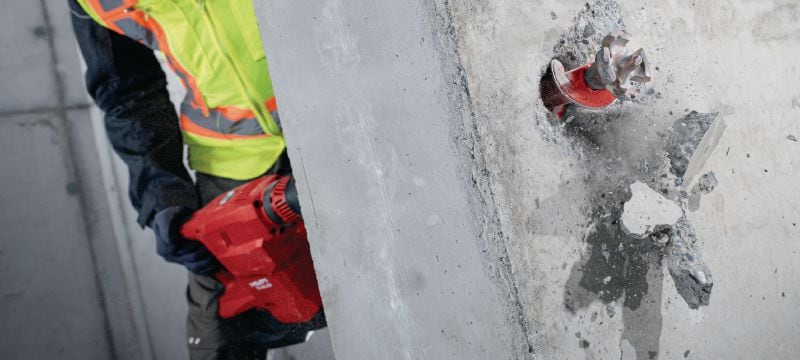

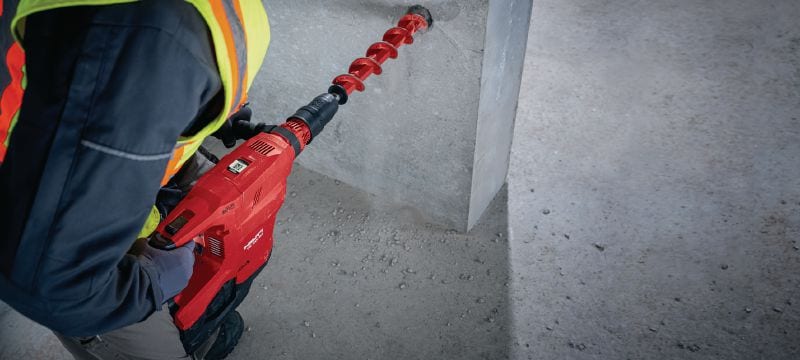

- Drilling larger-diameter penetrations in concrete and masonry
- Through-hole drilling in concrete and masonry
- For use in a wide range of heavy power tools with a TE-Y (SDS Max) connection end
