Nuron

SM 60-22 Cordless Miter Saw

Configurator
Technical Data
Documents
Features & Applications
Related Products
L132896 (3344402)
L149782_cropped (3388188)
L149739_cropped (3480293)
L149773_cropped (3388181)
L149729_cropped (3388177)
L151083_cropped (3527667)
L152017_cropped (3621147)
L152020_cropped (3621183)
L152018_cropped (3621165)

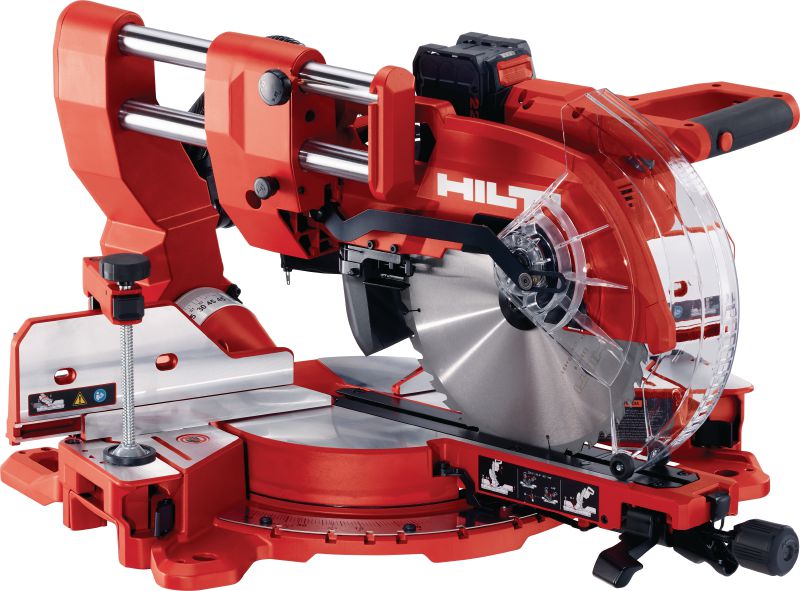

Dual-bevel sliding compound Miter Saw with a cross cut capacity up to 100x355mm│4"x 13-3/4" (Nuron battery platform)

  • Blade diameter: 305 mm
  • Base material: Wood, Plastic
  • No load RPM: gear 1: 4300 rpm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 1,940.00

Technical Data

Blade diameter
305 mm
Base material
Wood, Plastic
No load RPM
gear 1: 4300 rpm
Guiding rail compatibility
No
Max. bevel angle
48 °
Max. mitre angle
60 °
Maximum Cross Cut Capacity
100 x 355 mm
A-weighted emission sound pressure level
101 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
2.5 m/s² 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SM 60-22 01, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 11.9 MB ]
pdf Operating Instruction SM 60-S, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.3 MB ]

Features & Applications

Features

  • Precision cutting – miter (≤ 60° right ≤ 52° left) and bevel (up to 48°) adjusts in both directions for smooth compound cuts and accurate straight cuts throughout the saw's lifetime
  • Variable speed control – 6 speeds (2000-4300 RPM) allow you to match blade speed with material to optimise cutting quality, performance and battery life when paired with our blades
  • Ergonomic and efficient – forward-sliding rail saves space while front-facing bevel adjustments help streamline your workflow
  • Integrated LED shadow queue – queue up your workpiece for faster and more accurate cuts, even in low-light conditions
  • Safer and cleaner – fast blade brake and effective dust removal for a safer and cleaner working environment

Applications

  • Commercial wood framing, especially precise, serial cuts in beams, structural elements and temporary supports
  • Clean cuts for concrete formwork such as tilt walls and architectural concrete
  • Bevel and miter cuts for case work, mill work and interior woodwork such as cabinets, molding and trim
  • Cutting aluminium extrusions on-site for building envelope applications
  • Straight cuts in PVC, ABS and occasional cuts in aluminium and conduit for flush connections in plumbing and electrical installations

For approval or certificate information, please see individual items.
