new

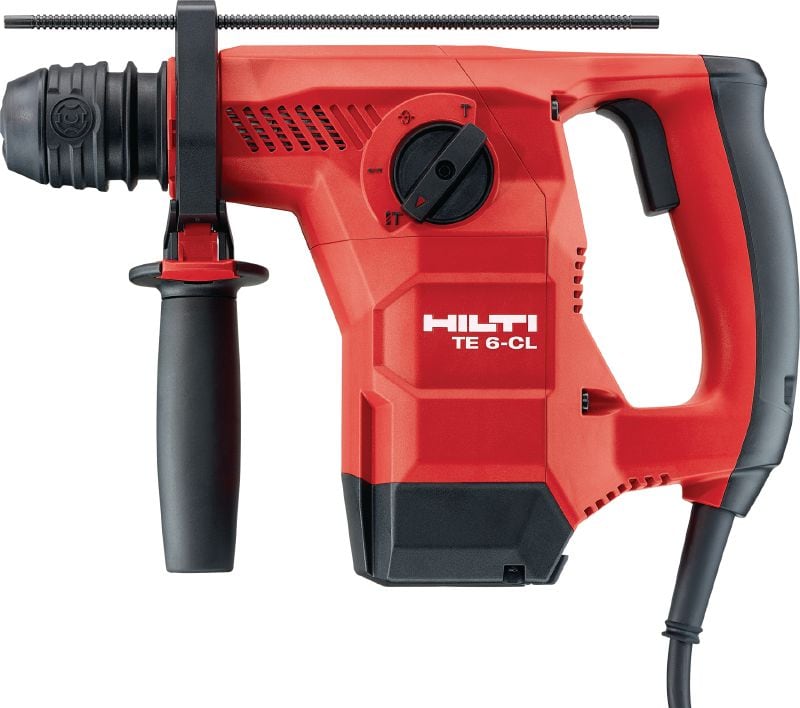

TE 6-CL Rotary hammer
Rotary hammer TE 6-CL 240V case #2251584
Powerful D-grip SDS Plus (TE-C) rotary hammer drill with chipping function
- Weight according EPTA-Procedure 01/2003 without battery: 3.38 kg
- Optimum hammer drilling range: 6 - 16 mm
- Single impact energy: 2.3 J
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
Discounted net
AUD 1,160.00
AUD 1,160.00 / 1 Piece
Technical Data
Weight according EPTA-Procedure 01/2003 without battery
3.38 kg
Optimum hammer drilling range
6 - 16 mm
Single impact energy
2.3 J
Working mode
Hammer drilling, Drilling, Chiselling, Chisel setting
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
960 rpm
Full hammering frequency
4680 impacts/minute
Functionality
Chiselling, Depth gauge, Reverse mode, Removable chuck
Triaxial vibration value for hammer drilling into concrete (ah,HD)
17.3 m/s² 1
Triaxial vibration for chiselling in concrete
10.1 m/s² 2
A-weighted emission sound pressure level
92 dB (A) 3
Rated input power
890 W
Dimensions (LxWxH)
325 x 93 x 221 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Built for speed and longevity – re-engineered to deliver higher drilling performance from an even more reliable, longer-lasting rotary hammer
- 0
- 0
- 0
- 0
Applications

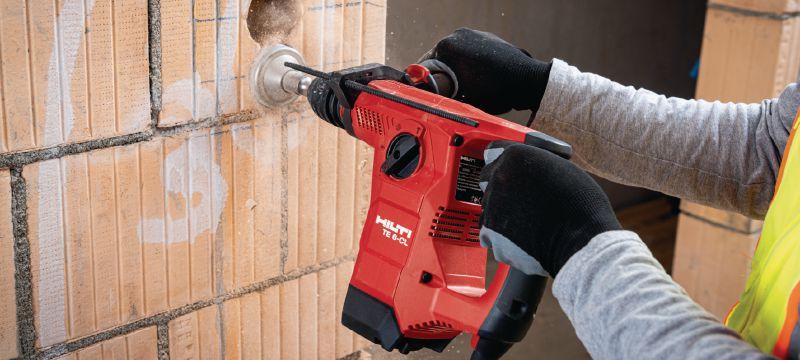

- Drilling and hammer drilling in concrete, masonry and stone
- Drilling anchor holes and formwork assembling
- Concrete chiselling and slag removal
- Chiselling of small channel openings into concrete and masonry
- Precision chiselling in masonry
Related Products
Ultimate SDS Plus (TE-C) hammer drill bits sets with different bit diameters and lengths (metric)
Ultimate SDS Plus (TE-C) hollow drill bit for virtually dust-free hammer drilling in concrete

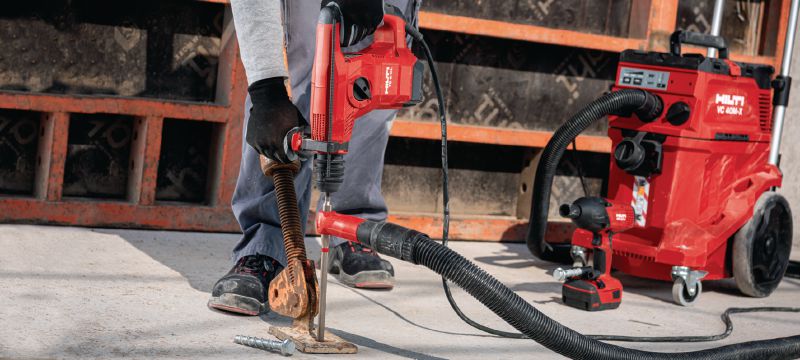

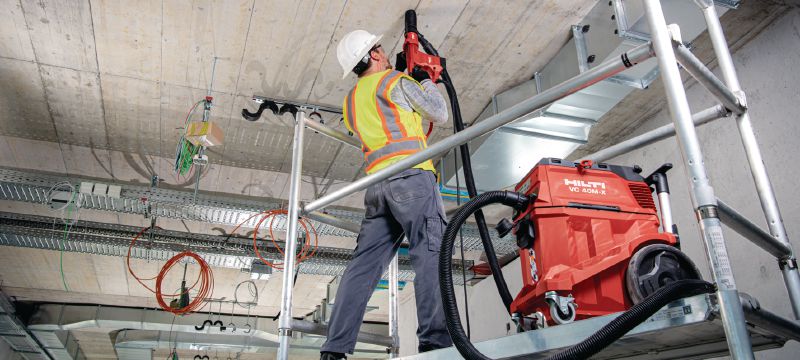

Dust removal system for concrete and masonry drilling with all rotary hammers
