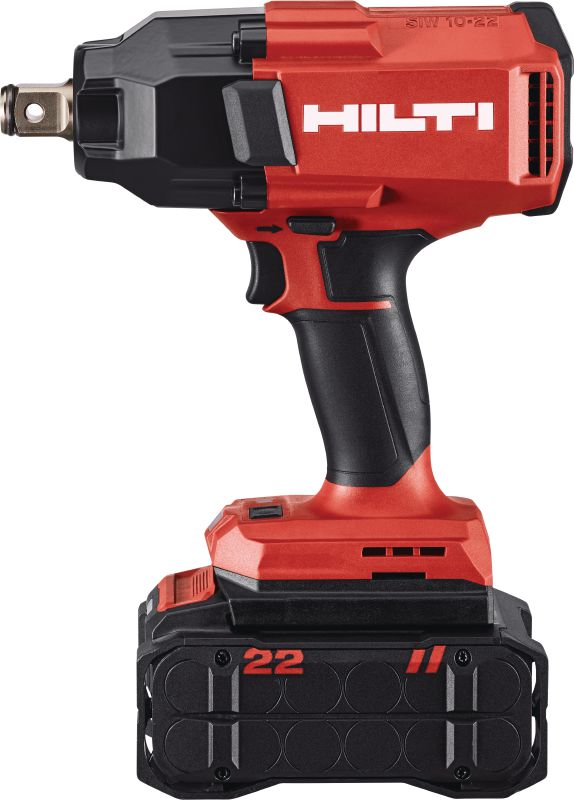

SIW 10-22 ¾" high-torque cordless impact wrench

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 885.00

Technical Data

Anvil type

3/4" through hole with friction ring

Maximum torque

850 Nm (1); 1600 Nm (2) ¹

Nut-busting torque

2000 Nm

Full hammering frequency

2500 impacts/minute

Number of gears

No load RPM

gear 1: 1000 rpm; gear 2: 1250 rpm

Dimensions (LxWxH)

217 x 86 x 235 mm

Tool body weight

2.9 kg

A-weighted emission sound pressure level

100 dB (A) ²

Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 10-22 (01), Arabic, cn, Danish, English, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Download

Features & Applications

Features

Advanced cordless performance – heavy-duty cordless impact wrench offers higher torque and greater power in a more compact body
Designed to last – robust brushless motor and ¾" anvil contribute to the durability and consistent performance of our cordless impact wrenches
More productivity and control – two speed settings and brighter LED light so that you can transition easily from heavy to lighter-duty applications
Less vibration for more user comfort – lower tool vibration enables longer periods of work without user fatigue
On the Nuron battery platform – cordless tools without compromise, thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow

Applications

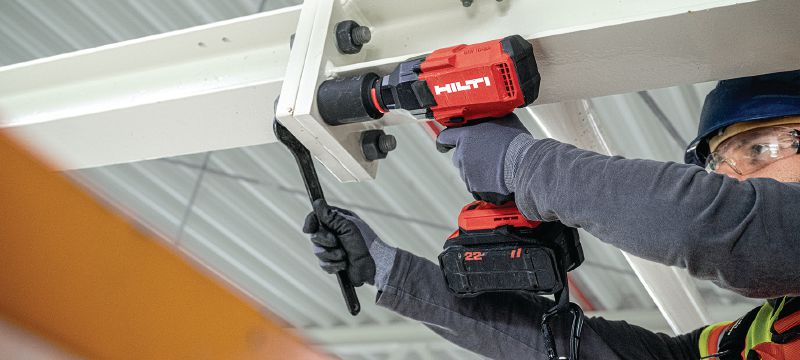

Bolting steel for primary and secondary steel structures, handrails, racking and machinery (up to M30 diameter high-tensile bolts)

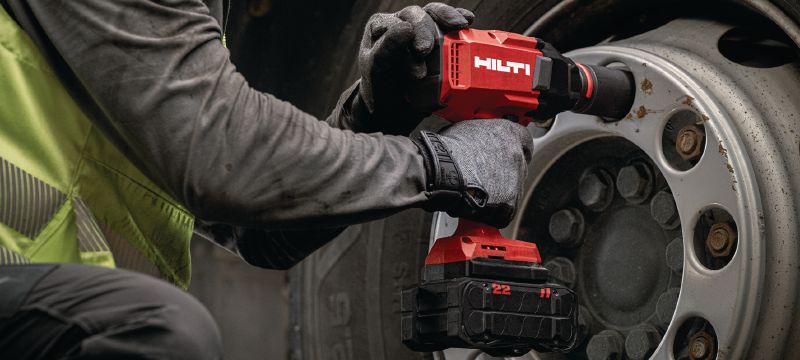

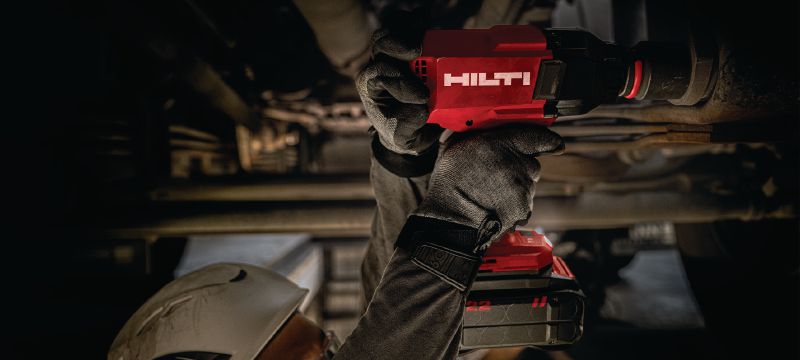

Loosening large rusty bolts for maintenance, operation and repair work

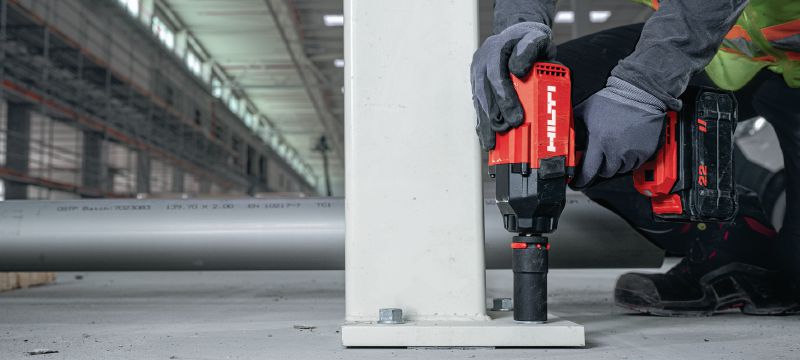

Setting large diameter HUS anchors in concrete for baseplates, formwork props, handrails and temporary fixtures (10-16 mm diameter)
Lag bolting in wood for primary and secondary wood structures, wooden roofs or temporary structures (12-20 mm diameter)
Bolting structural steel connections, pipe flanges, equipment, 1/2"to 1 1/8" diameter structural bolts

For approval or certificate information, please see individual items.
