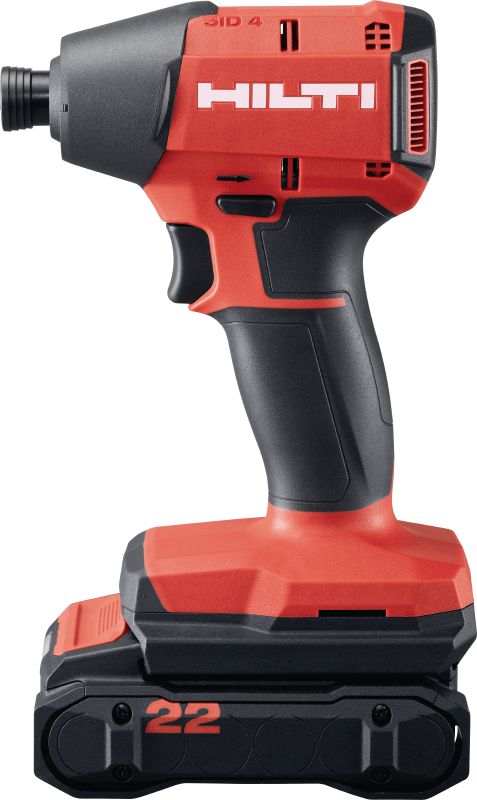

SID 4-22 Cordless impact driver

Compact brushless impact driver optimised for more reliable and efficient non-structural fastening in wood and metal (Nuron battery platform)

Feature: LED light around the chuck
Chuck type: 1/4" hexagonal click-in
No load RPM: gear 1: 3000 rpm

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 348.00

Technical Data

Feature

LED light around the chuck

Chuck type

1/4" hexagonal click-in

No load RPM

gear 1: 3000 rpm

Maximum torque

186 Nm (1) ¹

Full hammering frequency

4400 impacts/minute

Number of gears

Dimensions (LxWxH)

134 x 68 x 204 mm

Tool body weight

0.852 kg

A-weighted emission sound pressure level

95 dB (A) ²

Tri. vibr. val. for impact tightening of fasteners at max. cap. of tool (ah)

10.7 m/s²

Rated voltage

21.6 V

Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SID 4-22 (02), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Download

Features & Applications

Features

Economical alternative to the SID 6-22 – SID 4-22 is Hilti’s recommended cordless impact driver if you don’t need to set hundreds of screws per day
Extra-compact size – at just 134 mm from front to back, this is the ideal impact driver when you need to work in tight spaces
LED lights around the chuck – four built-in lights for a clearer, glare-free view of your work area
Ergonomic grip – textured and contoured for more comfortable control, even when working in awkward positions
Built to last – 1/4" hex click-in chuck, re-engineered gearing, motor cooling and sealed electronics make this our most durable impact driver to date

Applications

Smaller fastening jobs where time-per-fastening is not your biggest concern – such as formwork, prefab and glazing
Self-drilling screws – optimised for drilling through metal, then driving threads to completion

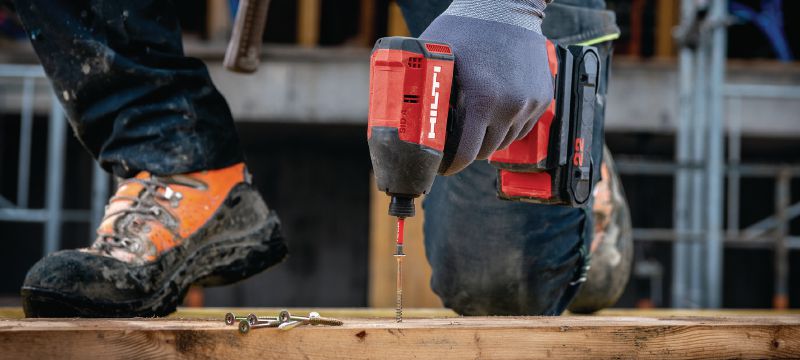

Wood screws – agile cordless impact driver for attaching wood to wood

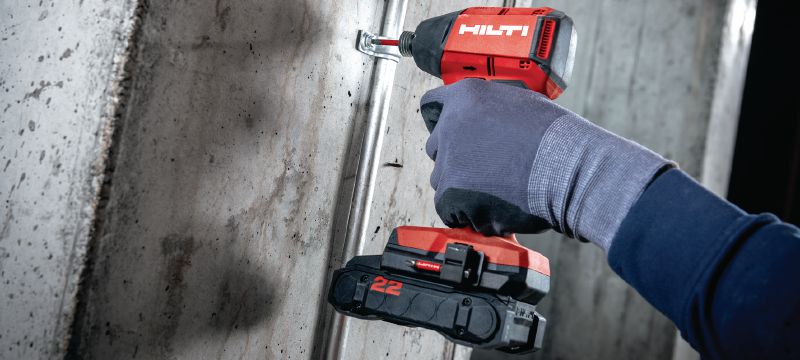

Masonry screws – three gears so torque can be reduced for masonry screws such as HRD
Drilling in wood with spade bits such as WDB-S (max. diameter 25 mm)

For approval or certificate information, please see individual items.
