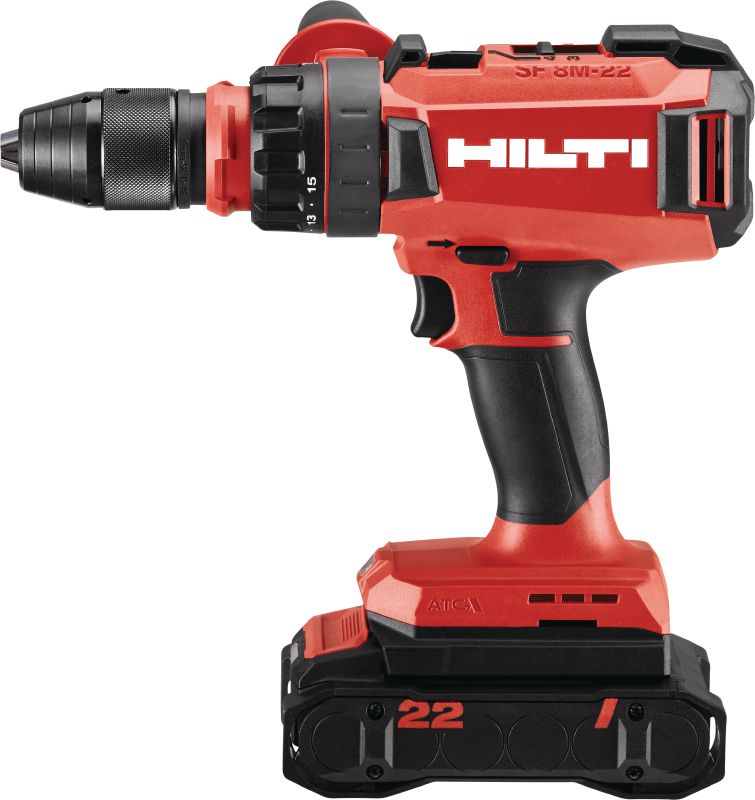

SF 8M-22 cordless drill driver

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 705.00

Technical Data

Maximum torque (soft/hard joint)

55 Nm (soft joint), 75 Nm (hard joint)

No load RPM

gear 1: 365 rpm; gear 2: 625 rpm; gear 3: 1440 rpm; gear 4: 2460 rpm

Chuck clamping range

2 - 13 mm

Number of gears

Torque increments

Dimensions (LxWxH)

242 x 69 x 226 mm

Tool body weight

1.9 kg

A-weighted emission sound pressure level

78 dB (A) ¹

Rated voltage

21.6 V

Triaxial vibration value for drilling into metal (ah,D)

1.6 m/s² ²

According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 8M-22 02, Arabic, Czech, Danish, English, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Turkish, Ukrainian, Chinese, Serbian, Bulgarian, cn, German, Greek, Spanish, Hebrew, Croatian, Hungarian, Italian, Dutch, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish [ 5.6 MB ]

Download

Features & Applications

Features

More flexibility and productivity with interchangeable chucks - innovative chuck design allows for different chucks to be swapped out in seconds (thread tapping M3-M16, self-tightening chuck, universal chucks)
Better performance in metal - higher RPM of 2460 combined with soft joint torque (60Nm) and four speeds enable the cordless drill driver to handle demanding metal drilling and screwdriving with ease
More peace of mind - specialised chuck with self-tightening function designed for metal drilling protects against drill bit slippage
Safer work environments - Hilti's Active Torque Control (ATC) helps prevent the tool body from uncontrolled spinning if the drill bit sticks and an LED work light in the base provides a clear view of your work area
Increased dependability - a powerful battery and brushless motor allow for more drilling and driving per charge at consistently high speeds

Applications

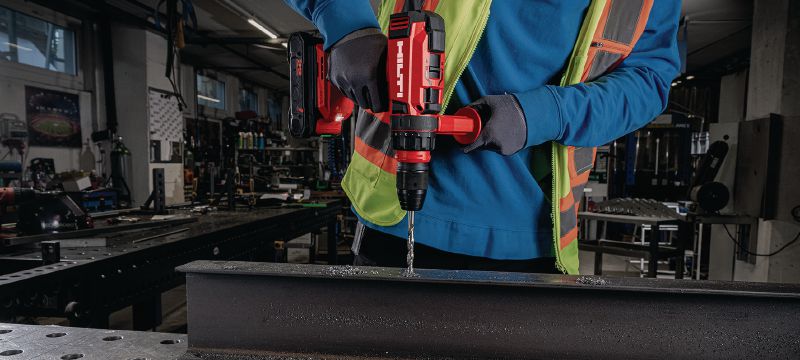

Drilling in metal with HSS bits up to 20 mm diameter
Drilling in sheet metal up to 3 mm thick with step drill bits up to 40 mm diameter

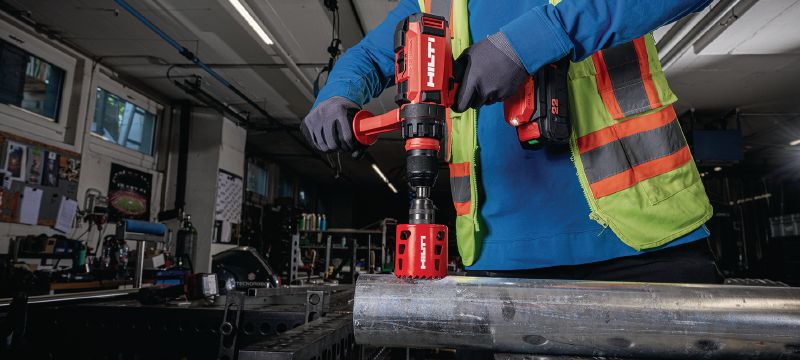

Drilling holes in metal using hole saws up to 102 mm

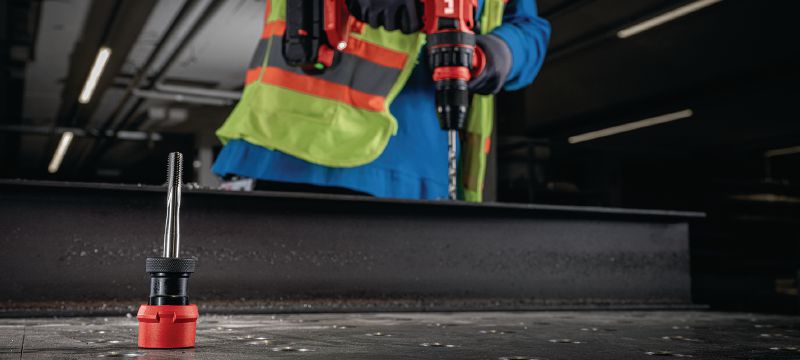

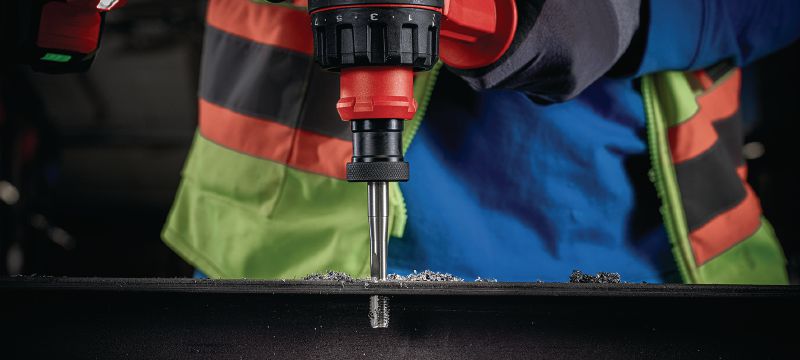

Thread tapping up to size M16 (square shank bits suitable with thread tap chucks)
Countersinking in metal up to 31 mm diameter

For approval or certificate information, please see individual items.
