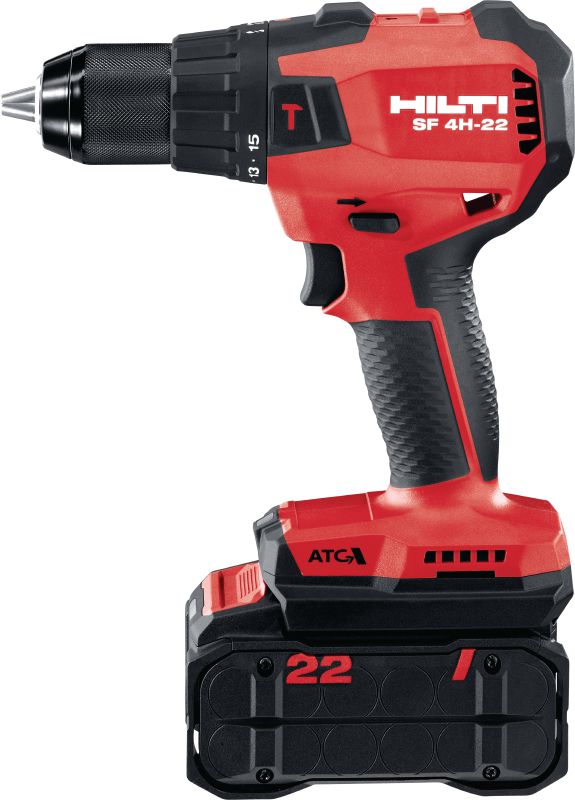

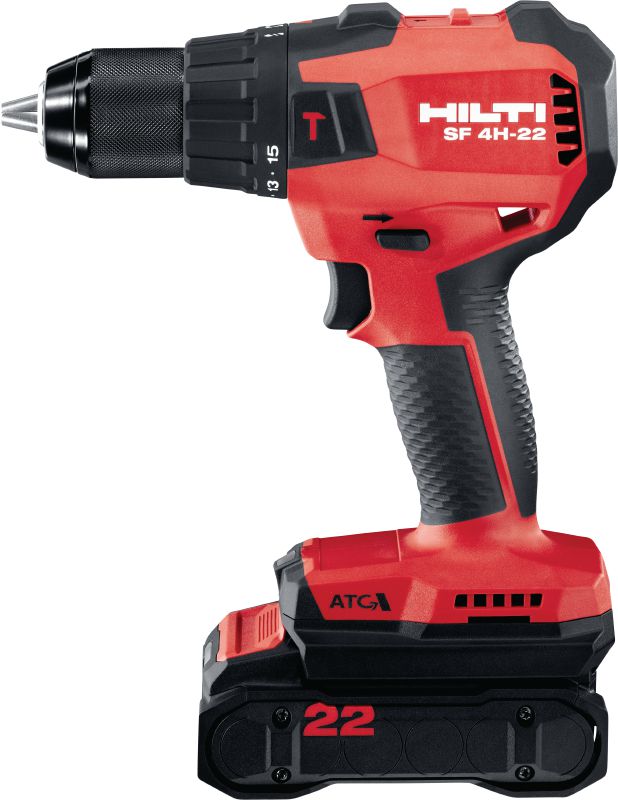

SF 4H-22 Cordless hammer drill driver

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 450.00

Technical Data

Maximum torque (soft/hard joint)

36 Nm (soft joint), 62 Nm (hard joint)

No load RPM

gear 1: 610 rpm; gear 2: 2100 rpm

Chuck clamping range

2 - 13 mm

Number of gears

Torque increments

Dimensions (LxWxH)

190 x 68 x 215 mm

Tool body weight

1.4 kg

A-weighted emission sound pressure level

92 dB (A) ¹

Rated voltage

21.6 V

Triaxial vibration value for drilling into metal (ah,D)

1.4 m/s² ²

According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 4-22 (02), SF 4H-22 (02), Arabic, cn, Danish, English, Spanish, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.3 MB ]

Download

Features & Applications

Features

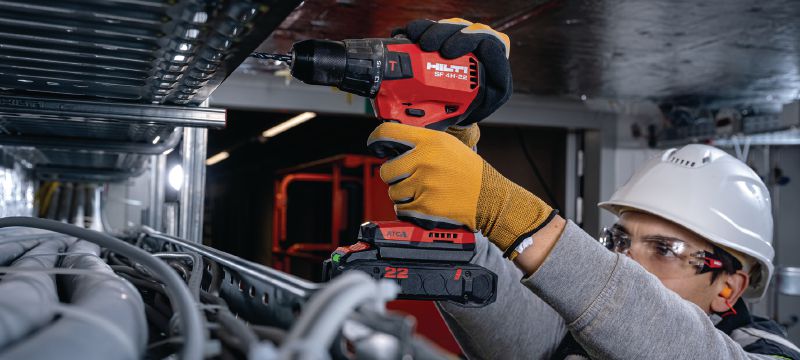

More productive work – compact and capable cordless hammer drill driver for working in tight spaces or overhead – including on masonry – without compromising on efficiency
Faster drilling and driving – delivers the highest-RPM and torque from any Hilti compact hammer drill driver thanks to high-output Nuron batteries
Built to last – full metal chuck, brushless motor and optimised cooling to better withstand intense use under tough jobsite conditions
Advanced safety features – Active Torque Control (ATC) helps to prevent the tool body from uncontrolled spinning if the drill bit sticks, and an LED work light in the base provides a clear view of your work area
On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, energy-saving drill bits and a range of services to keep you more productive, today and tomorrow

Applications

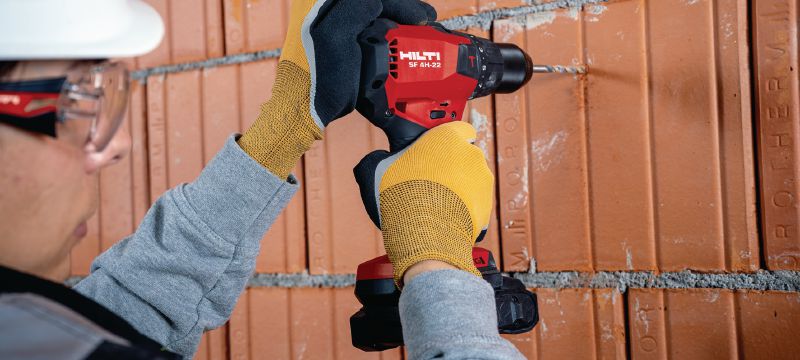

Hammer drilling in brick, masonry and aerated concrete (max. diameter 8 mm)
Drilling in wood (max. diameter 25 mm) and steel (max. diameter 8 mm)

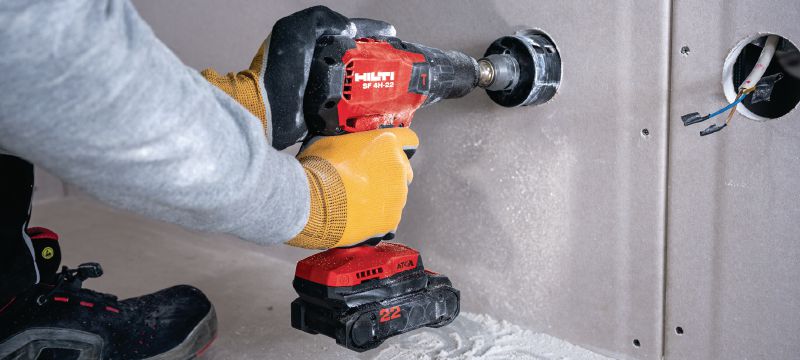

Hole sawing in wood (max. diameter 82 mm)
Drilling with auger and spade bits in wood (max. diameter 25 mm)
Driving screws in steel (max. diameter 4.8 mm)

For approval or certificate information, please see individual items.
