DSH 600-22 battery cut-off saw

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 1,800.00

Technical Data

Base materials

All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral

Dimensions (LxWxH)

660 x 290 x 350 mm

Protection class

IEC Battery operated

Work environment

Interior and exterior

Arbor Size

Option 1 : 25.4 mm; Option 2: 20 mm

A-weighted emission sound power level

108 dB (A) ¹

According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DSH 600-22 (01), Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Slovak, Swedish [ 10.2 MB ]

Download

pdf Operating Instruction DC-D, DG-CW, DC-TP, Russian, English, Spanish, French, Portuguese [ 3.1 MB ]

Download

Features & Applications

Features

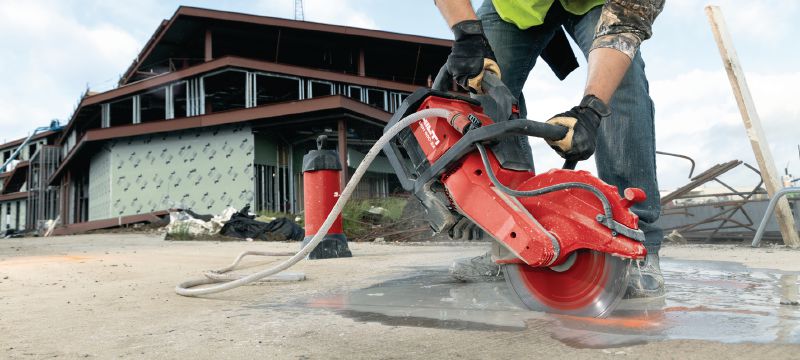

Battery-powered cut-off saw for heavy-duty tasks – DSH 600-22 gets the same work done as a 60cc gas cut-off saw, but without the fumes, noise, extra maintenance and fuel mix issues
Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-255 Nuron batteries and 300mm SPX univ. A cordless-optimized blades
Lower running costs – no fuel to buy or mix; less maintenance and up to double the lifespan of a gas saw thanks to a brushless electric motor
Improved safety features – fume-free, quieter, lower-vibration cutting and a fast-acting blade brake (approx. 4 seconds)
Better maneuverability – weighing just 8.9 kg (or 12.2 kg including two B 22-170 batteries and a 300 mm blade), this cut off saw is engineered for comfortable handling during all-day cutting

Applications

Cutting concrete and masonry – such as making new openings or trimming blocks to size (max. cutting depth 120 mm with 300 mm blades)
Paving – cutting curbstones, pavers and asphalt
Metalwork – cutting metal deck, reinforcing bar, steel sheet, metal track and pipes
Cutting indoors – battery-powered cut-off saws are quieter and fume-free
Virtually dust-free cutting when used with a compatible water supply, or lower-dust cutting using a compatible vacuum cleaner and DSH-DRS accessories (please verify your local silica dust exposure limits)

For approval or certificate information, please see individual items.
