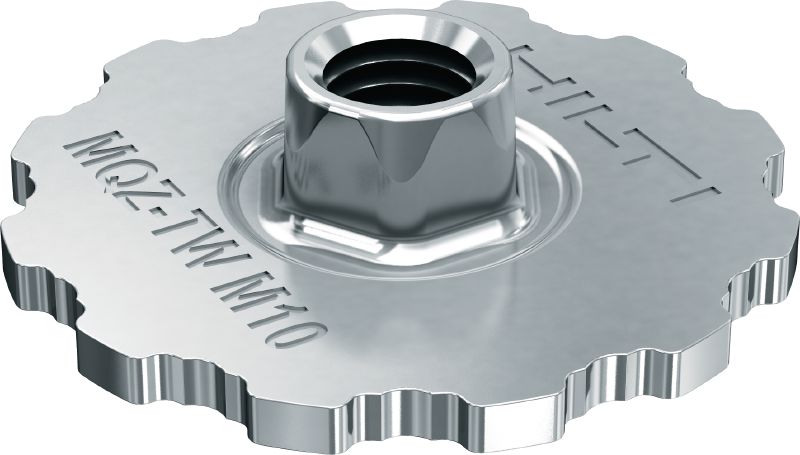

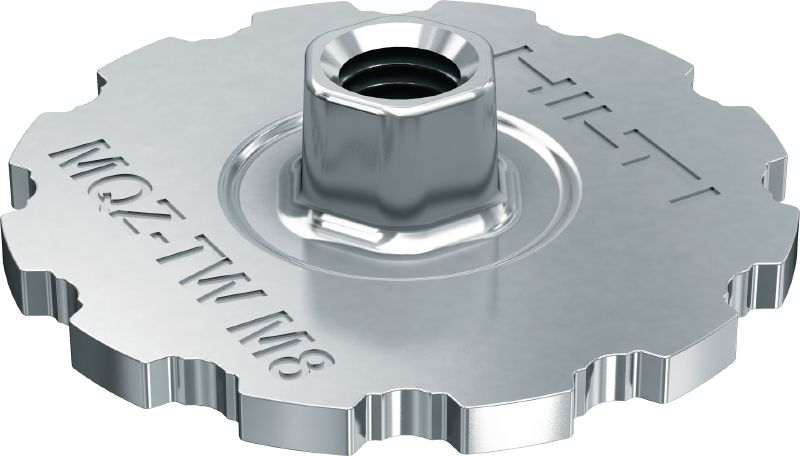

MQZ-TW Trapeze wheel

Configurator
Technical Data
Documents
Features & Applications
Related Products
MQZ-TW (83618)
MQZ-TW (83617)
MQZ-TW (83667)
MQZ-TW (83653)

Ultimate galvanised adjustable channel plate for trapeze applications

  • Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025, DC04 - DIN EN 10130
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
ultimate

Choose options

Thread connection - M
  • M8
  • M10
Wrench size
  • 11 mm
  • 13 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 155.00

Technical Data

Details
Technical illustrations
Material composition
DD11 MOD - HN 547, S235JR - DIN EN 10025, DC04 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Ultimate

Documents

pdf Operating Instruction MQZ-TW-M8-M10, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 555.5 KB ]

Features & Applications

Features

  • Single-piece part combining nut and washer
  • Shaped for optimal handling convenience
  • Faster and less error-prone installation compared to traditional alternatives
  • Tool-free installation possible – M10 version is self-locking

Applications

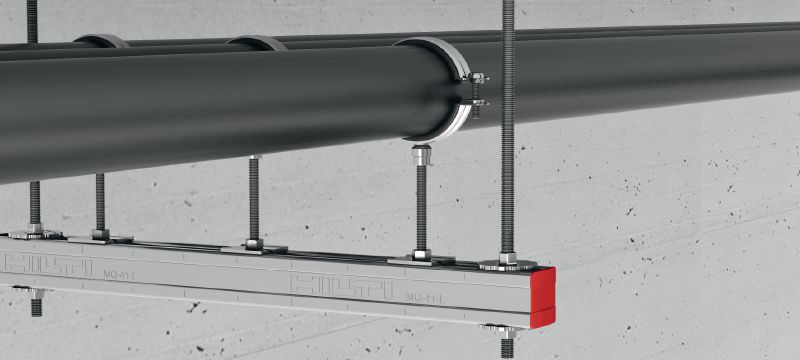

  • Fastening installation channels to threaded rods
  • Connecting threaded rod to strut channels
  • Adjusting the height of threaded rod to strut channels connections

For approval or certificate information, please see individual items.
