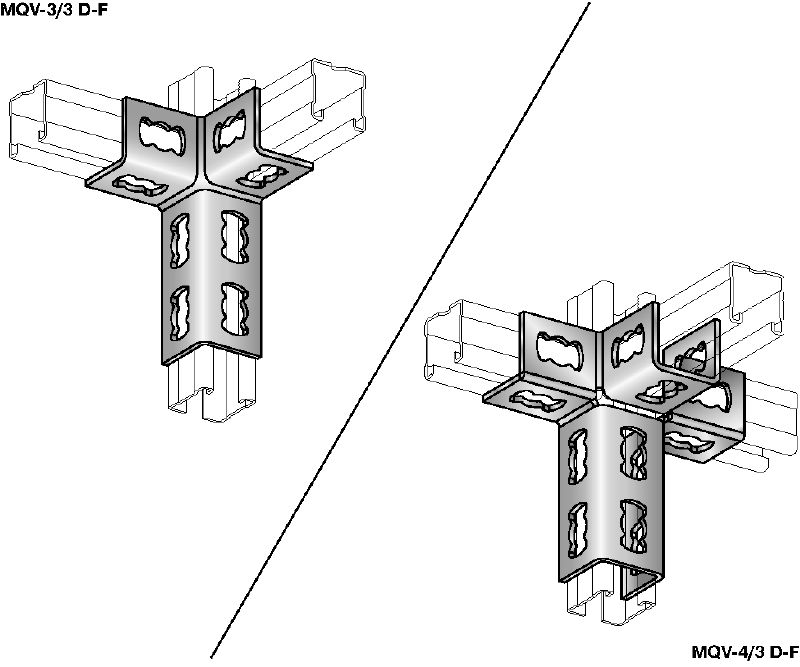

MQV-3D-F Channel connector

Connector MQV-4/3 D-F #304154

IS_HNA_221_o.eps
IS_ME_221.eps
IS_HNA_221.eps

Hot-dip galvanised (HDG) channel connector for three-dimensional structures

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Choose options

Angle
  • 90 °
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 251.90
AUD 25.19
/
1 Piece

Technical Data

Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

pdf Operating Instruction MQV-4/3 D, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 725.3 KB ]

Features & Applications

Features

  • Three-dimensional connector – engineered for high load capacity
  • Adjustable – easily fitted and repositioned along strut channels
  • Universal – complete many different applications using few parts
  • Compatible with push button channel connectors – for much faster, adaptable assembly
  • Three dimensional

Applications

  • Connector for 3D channel design
  • Compatible with multiple MQ strut channels
