MGS 2-R medium-duty base plates

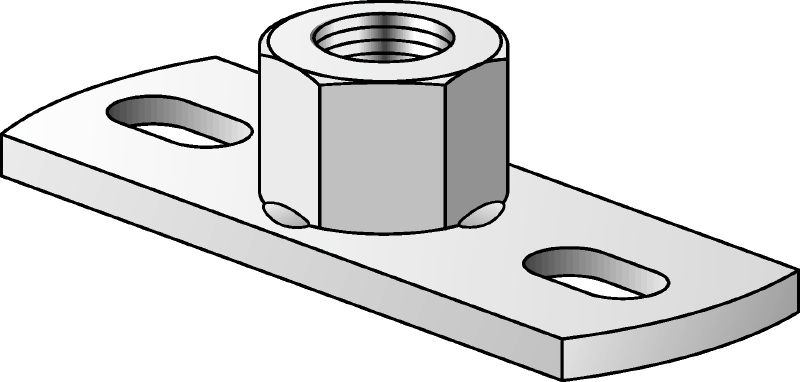

2-hole Baseplate MGS 2-R-M16 #246932
Stainless steel (A4) medium-duty base plate to fasten metric threaded rods with two anchor points
- Thread connection - M: M16
- Height - H: 20 mm
- Maximum tensile load - F: 3.5 kN
Choose options
Thread connection - M
- M16
Height - H
- 20 mm
Maximum tensile load - F
- 3.5 kN
Pack size
- 10 pc
Quantity
Packs
Total Piece
10
Discounted net
AUD 1,188.00
AUD 23.76 / 1 Piece
Technical Data
Thread connection - M
M16
Height - H
20 mm
Maximum tensile load - F
3.5 kN
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Number of holes
2
Weight
0.17 kg
Features & Applications
Features
- Easy installation of threaded rods
- Secure connection with 2 anchor points
Applications
- Fastening medium-duty pipes to concrete with two fastening points
- Recommended for use in corrosive environments
