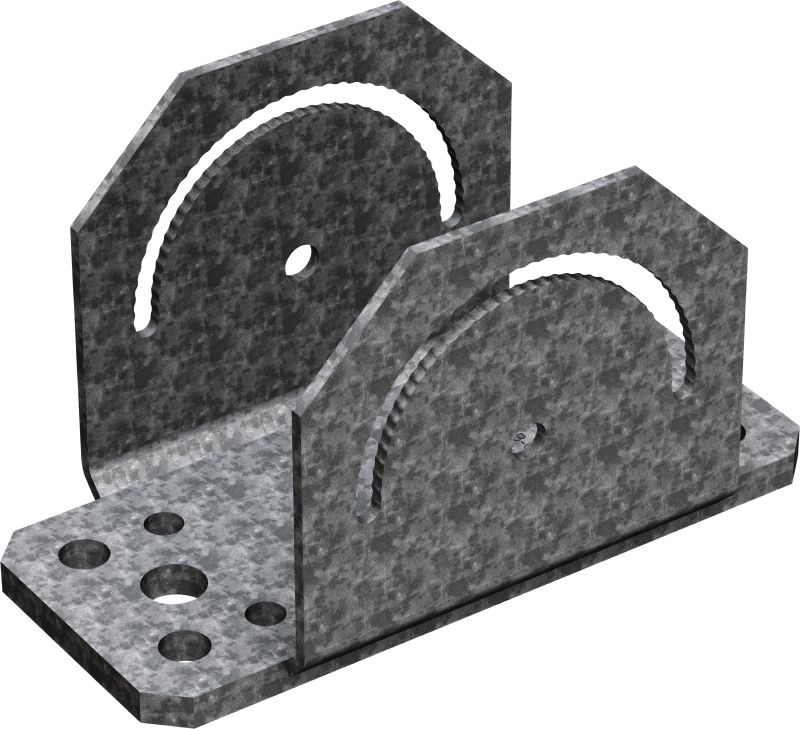

MT-B GL AB OC Angled baseplate

Baseplate MT-B GL AB OC #2353811

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003805_v1 (2440550)

Heavy-duty angled baseplate for bracing, long span supports or inclined surfaces, for outdoor use with low pollution

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 10 mm

Choose options

Pack size
  • 6 pc
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 726.00
AUD 121.00 / 1 Piece

Technical Data

Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
10 mm
Weight
2.27 kg
Environmental conditions
Outdoor, low to moderate pollution (C3)

Documents

Approval document
Certificate
Sustainability Documentation
Operating Instruction
pdf ETA-23-0826 Static MT Base Connectors, English [ 2.4 MB ]

Features & Applications

Features

  • Higher load resistance – more bolting points and stronger construction than previous Hilti baseplates
  • Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Mounting MT-80, MT-90 and MT-100 girders on inclined steel surfaces
  • Mounting MT-80, MT-90 and MT-100 at an angle ranging from +/- 90 degrees for bracing or long span supports
  • Fastening heavy-duty, floor-mounted single pipe supports
