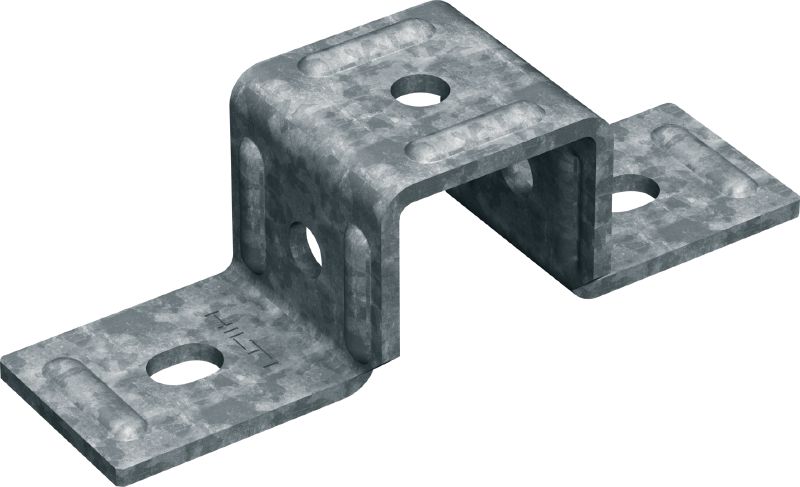

MT-CC-BC 40/50 OC U-Fitting
New productItem #r13701104
Clamp for cross-connection of one MT strut channel to concrete, for outdoor use with low pollution
- Material composition: Q235 or better steel
- Surface finish: Outdoor Coated - HDG
- Material thickness: 4 mm
Share
Features
- Compatible with MT Twist-Lock and MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
- Universal – complete many different applications using few parts
- Twist-lock and Thread Forming Bolt channel connector takes up shear and tensile loads
- Compatible with multiple strut channel/girder profiles
- Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
Applications
- Cross-connection of one strut channel to concrete
- Suitable for use in moderately corrosive environments

Technical Data
Documents
-
- Operating Instruction MT-CC-BC/S-40/50, Chinese (traditional), Italian, Hebrew, Serbian, German, Russia, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Sardinian, Malay, Spanish, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 1.4 MB ]
