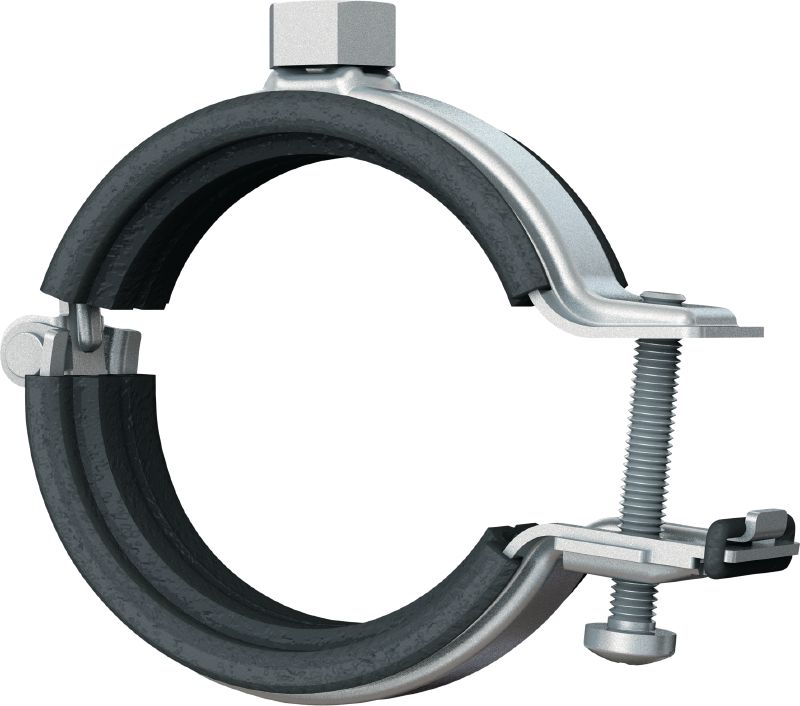

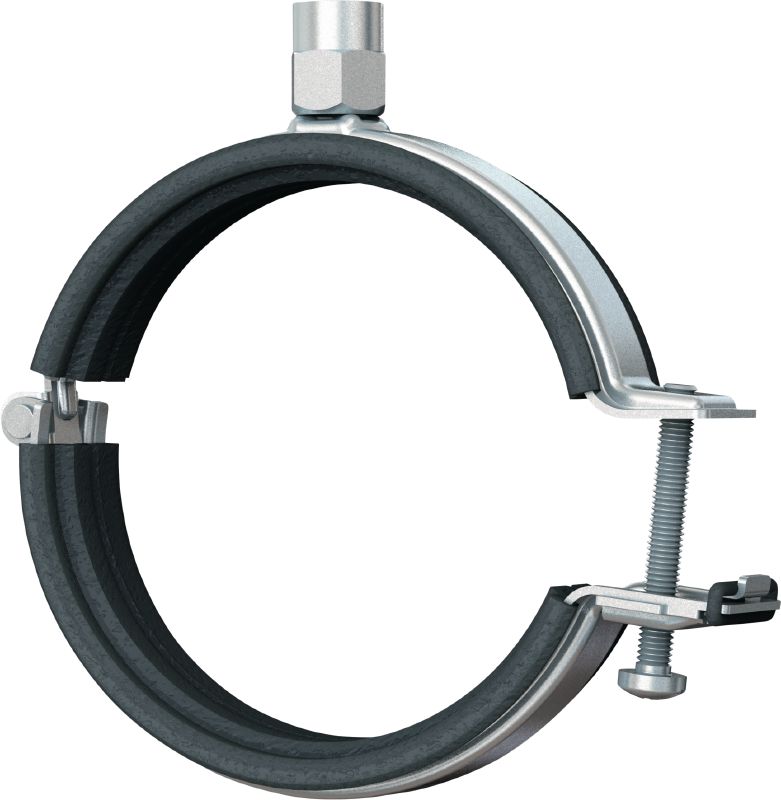

MP-L-I Quick-close light-duty pipe clamp

Pipe clamp MP-L-I 157-170 M8/M10 #2172931

Configurator
Technical Data
Documents
Features & Applications
Related Products
L108026_cropped (185936)
L108047_cropped (185939)
L108052_cropped (185938)
LCG001733_v2_cropped (180589)
LCG001738_v3_cropped (180593)
IS_MP-L-I-M8-M10_0001 (183209)

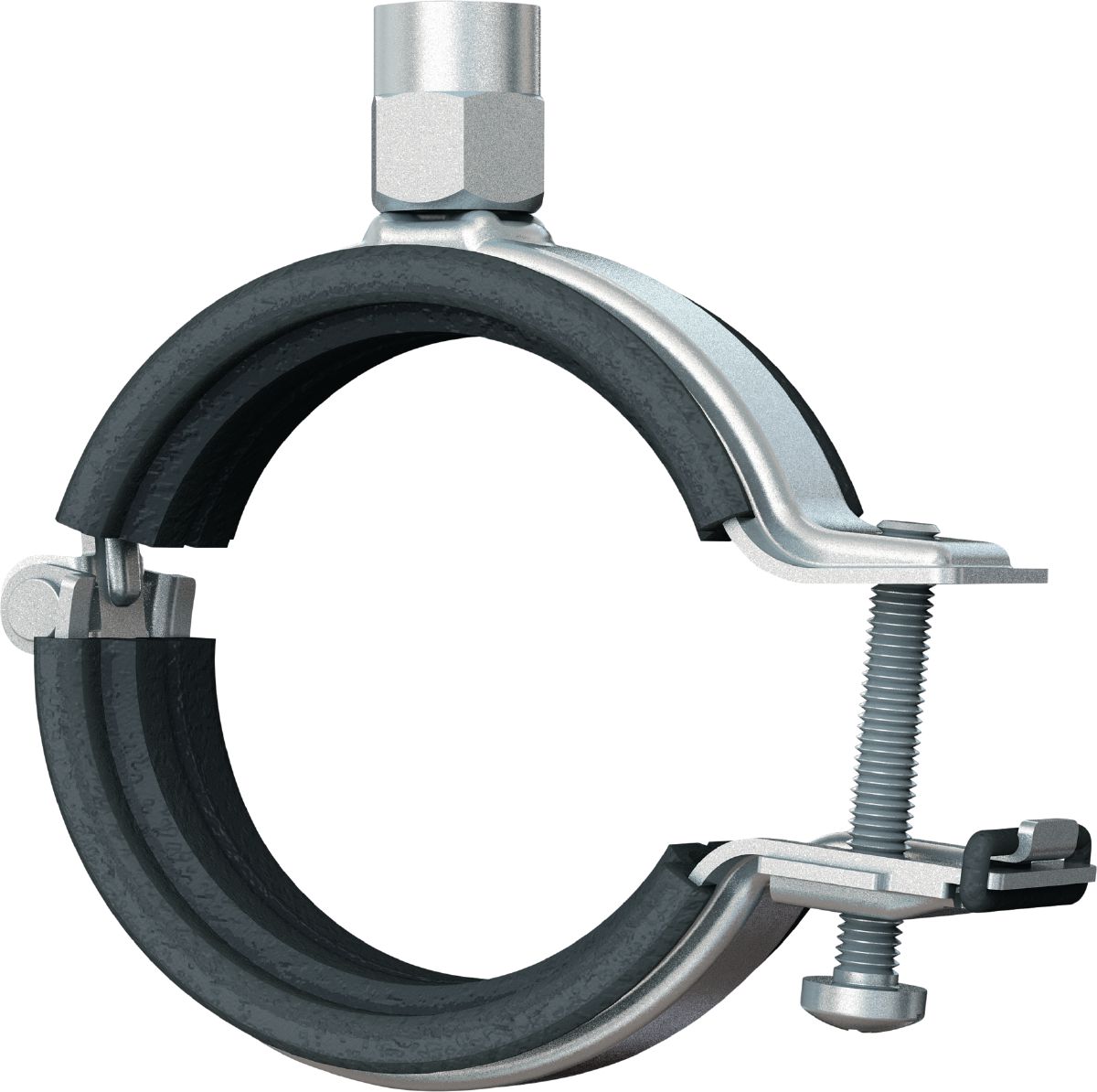

Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications

  • Approvals: ETA
  • Noise reduction: 18.5 dB (A)
  • Temperature resistance: -40 - 110 °C
premium

Choose options

Clamping range - D
  • 157 - 170 mm
Thread connection - M
  • M8, M10
Nominal pipe size (imperial)
  • 6 in
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Approvals
ETA
Noise reduction
18.5 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
60° ±5° Shore A
Tightening torque
2 Nm
Product class
Premium

Documents

Approval document
Brochure
Documentation
Test Report
Sustainability Documentation
Operating Instruction
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • One-screw safety flap closure – easy single-handed closing and re-opening
  • Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
  • Secured hinge with wide, infinitely adjustable opening angle
  • Safety flap closure mechanism prevents unintentional re-opening
  • Securely attached profiled rubber inlay with tested sound decoupling values

Applications

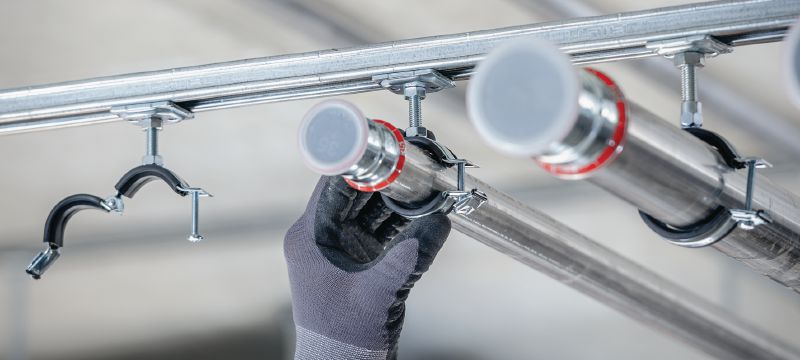

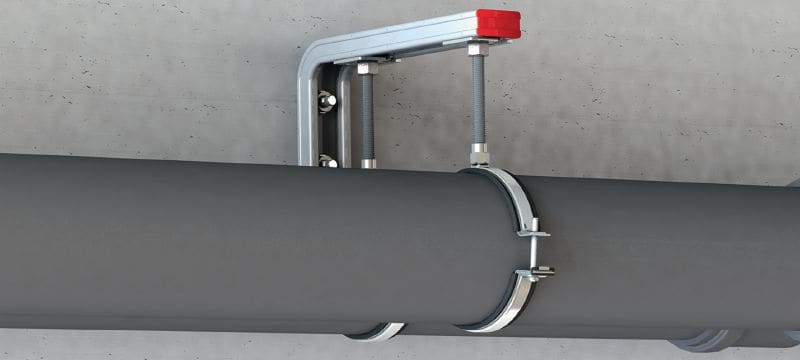

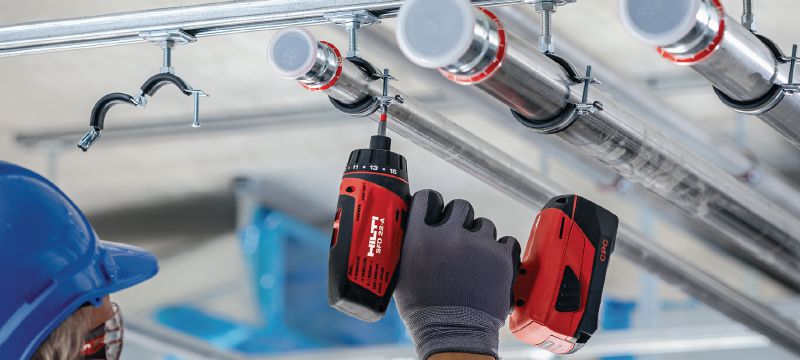

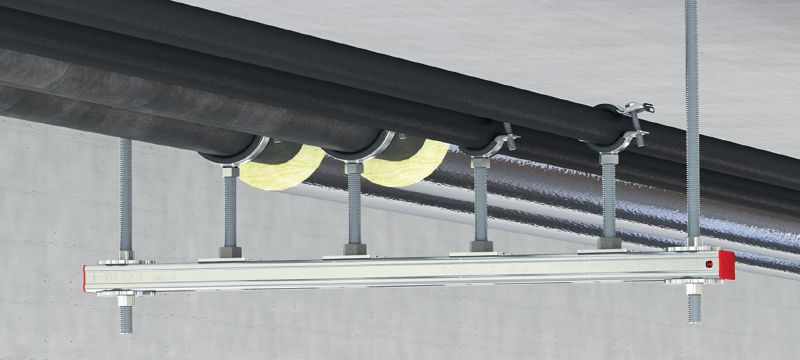

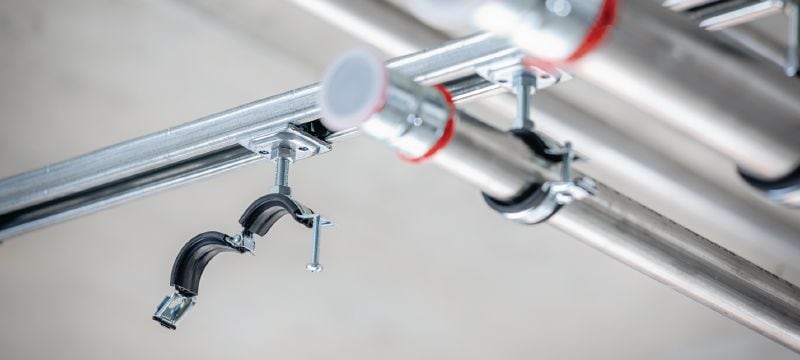

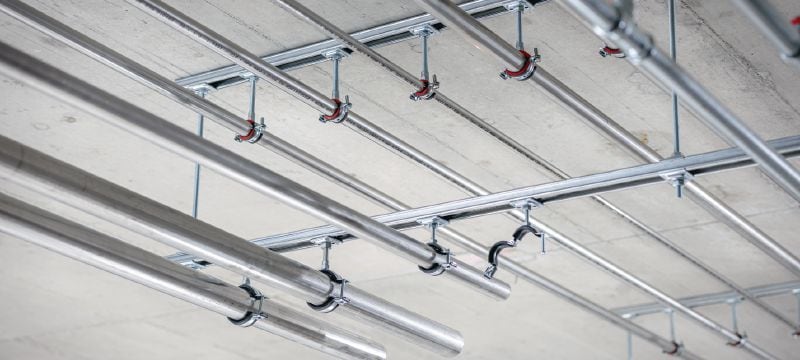

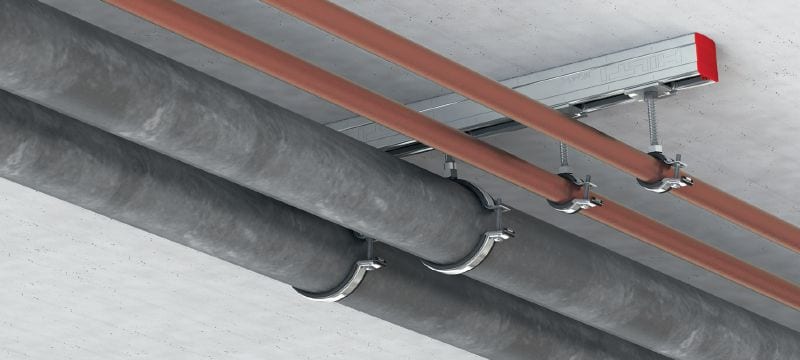

  • Light-duty pipe installations up to 6"
  • Fastening fresh water, waste water and heating pipes
  • Sanitary and heating applications with pipes of various materials
  • Recommended for use in dry, interior environments
  • Ceiling, floor and wall applications
