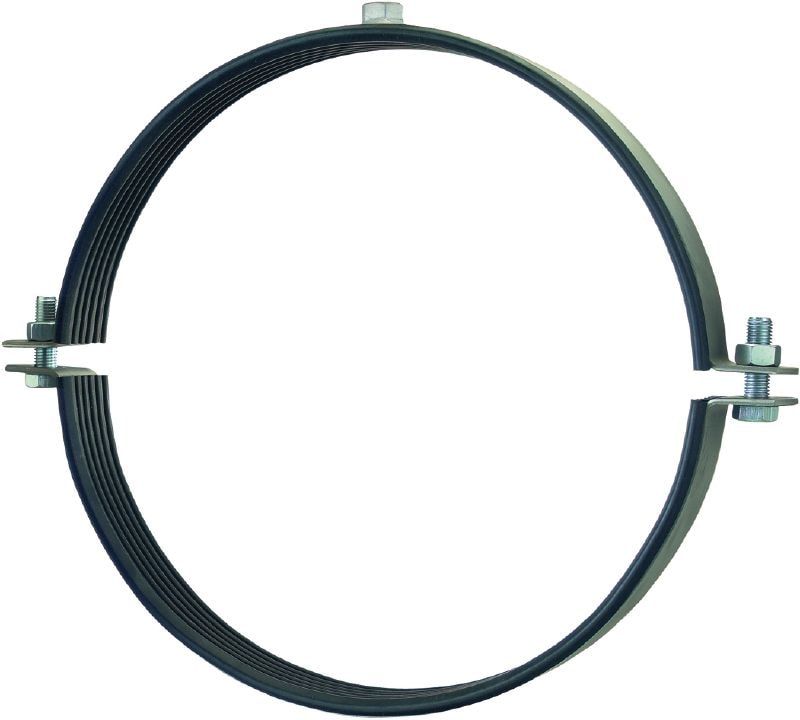

MP-MRXI heavy-duty pipe clamp
Pipe ring MP-MRXI 244.5 M16 stnls #374213
Stainless steel (A4) pipe clamp with sound insulation for extra heavy-duty applications
- Noise reduction: 16 dB (A)
- Temperature resistance: -50 - 120 °C
- Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
premium
Choose options
Clamping range - D
- 244 - 253 mm
Thread connection - M
- M16
Pack size
- 10 pc
Quantity
Packs
Total Piece
10
Discounted net
AUD 2,280.00
AUD 228.00 / 1 Piece
Technical Data
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Tightening torque
20 Nm
Product class
Premium
Documents
Features & Applications
Features
- Solid connection head, welded all around
- Strong clamping screws for high load values
- Non-slip, pre-fitted profiled rubber inlay
- Suitable for installing pipes under dynamic loading if used with vibration-damping components
- High resistance to corrosion (A4 stainless steel)

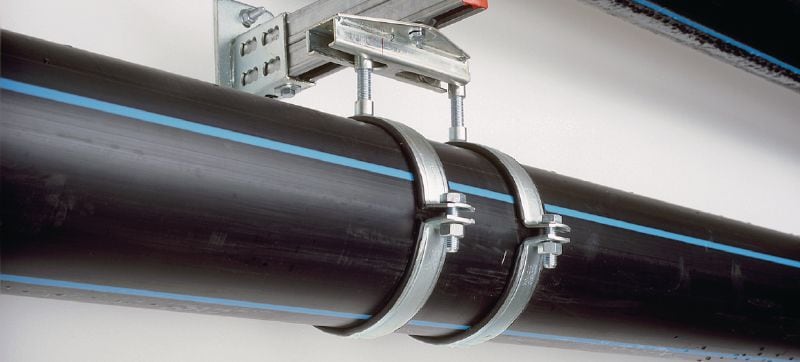

Applications
- heavy-duty pipe installations up to 508 mm
- Installing industrial pipes
- Mounting pipes in food industry (except production) and in water treatment
- heavy-duty plumbing and heating applications
