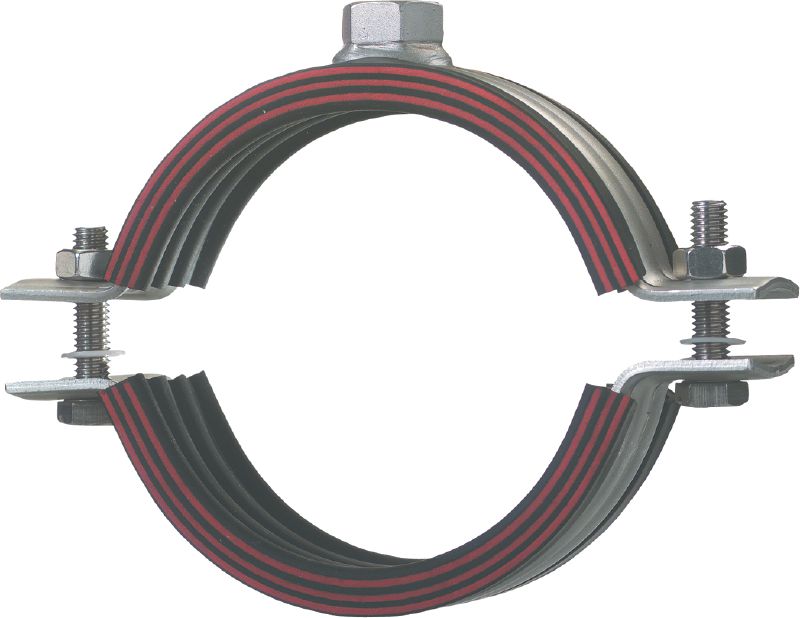

MP-MRI heavy-duty pipe clamp
Pipe ring MP-MRI 193,7 M16 stnls #372057
Stainless steel (A4) pipe clamp with sound insulation for heavy-duty applications
- Noise reduction: 18 dB (A)
- Temperature resistance: -50 - 120 °C
- Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
premium
Choose options
Clamping range - D
- 190 - 200 mm
Thread connection - M
- M16
Pack size
- 10 pc
Quantity
Packs
Total Piece
10
Discounted net
AUD 939.60
AUD 93.96 / 1 Piece
Technical Data
Noise reduction
18 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Tightening torque
3 Nm
Product class
Premium
Documents
Features & Applications
Features
- Increased rigidity due to profiled clamping band
- Solid connection head, welded all around
- Pipe ring with verified fire resistance as per DIN 4102, part 2
- High resistance to corrosion (A4 stainless steel)

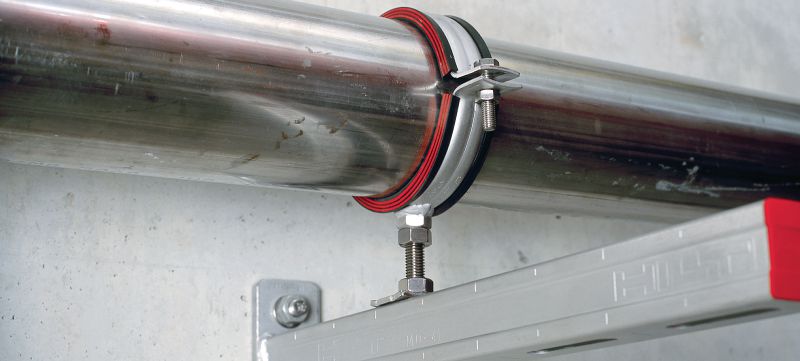

Applications
- heavy-duty pipe installations up to 224 mm
- Installing industrial pipes
- Mounting pipes in food industry (except production) and in water treatment
- heavy-duty plumbing and heating applications
- Fastening of heavy-duty pipes in corrosive environments
