MP-MI heavy-duty pipe clamp

MP-MI
MP-MI DL/EL
eps-file
MP-MI
MP-MI
MP-MI DL/EL
28513_G.eps
28513_C.eps
28513_DL_EL.eps

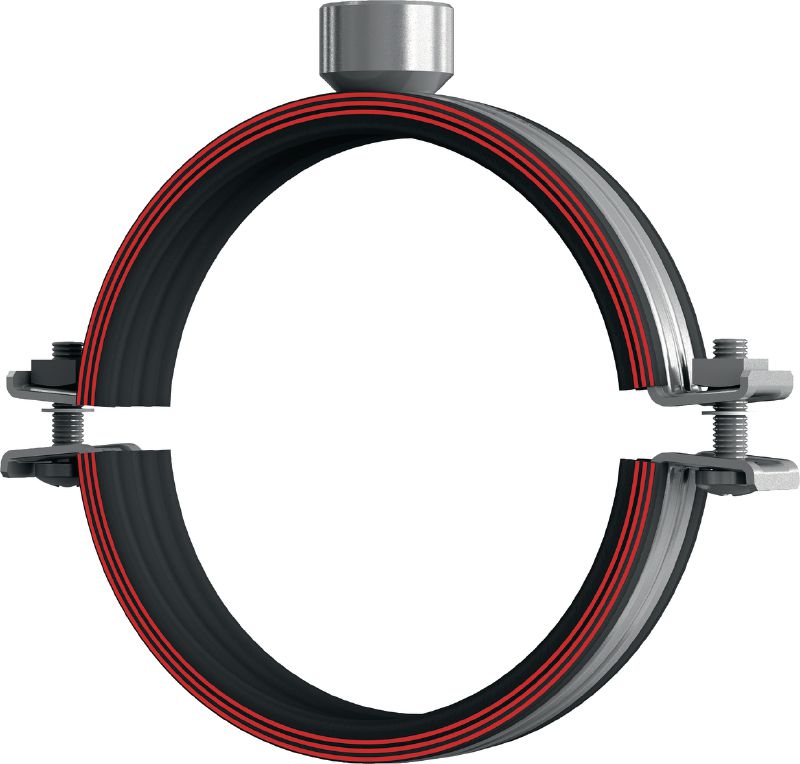

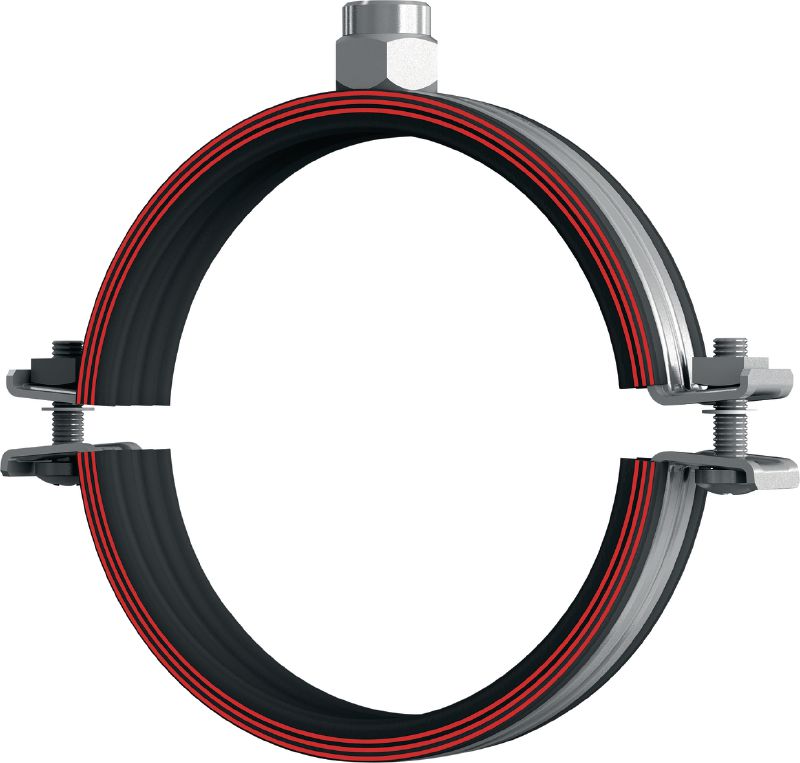

Galvanised pipe clamp with sound insulation for heavy-duty applications

  • Noise reduction: 19 dB (A)
  • Temperature resistance: -40 - 110 °C
  • Material composition: S235JRG - DIN EN 10025

Choose options

Clamping range - D
  • 108 - 114 mm
  • 114 - 119 mm
Thread connection - M
  • M10, M12
  • M16
Nominal pipe size (imperial)
  • 4 in
Pack size
  • 5 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 91.55

Technical Data

Noise reduction
19 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A

Documents

pdf Brochure_W4580_0523_g_Data_Center_Solutions__en_2023 [ 5.9 MB ]

Features & Applications

Features

  • Solid, welded nuts for closing screws (diameter 68/72 mm and above)
  • Pre-assembled non-slip rubber profile
  • Profiled clamp band for higher rigidity

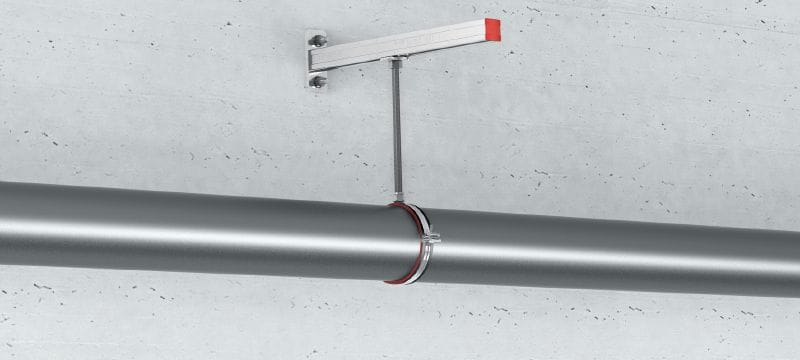

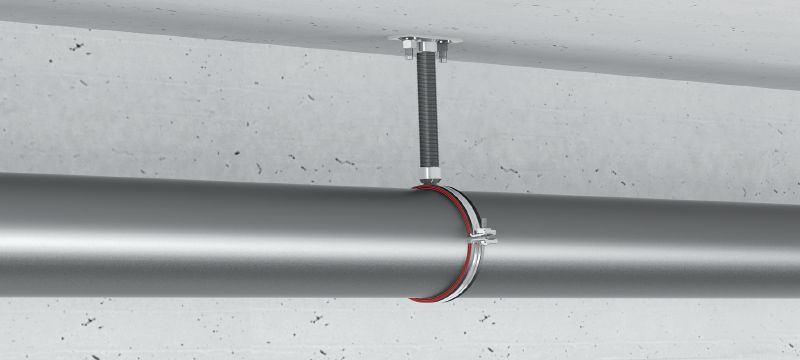

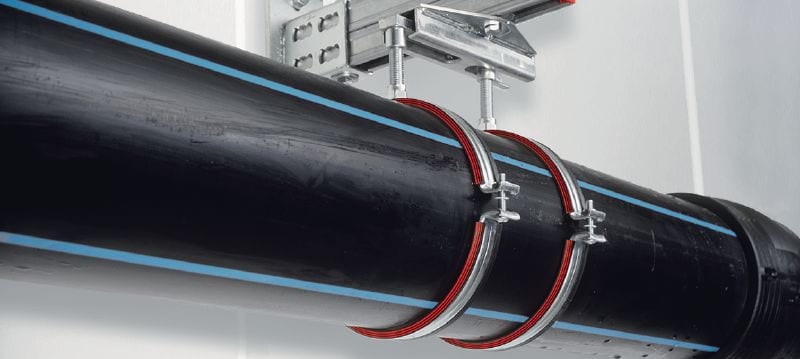

Applications

  • heavy-duty pipe installations up to 273 mm
  • Installing industrial pipes
  • Mounting process and control queues
  • heavy-duty plumbing and heating applications
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
