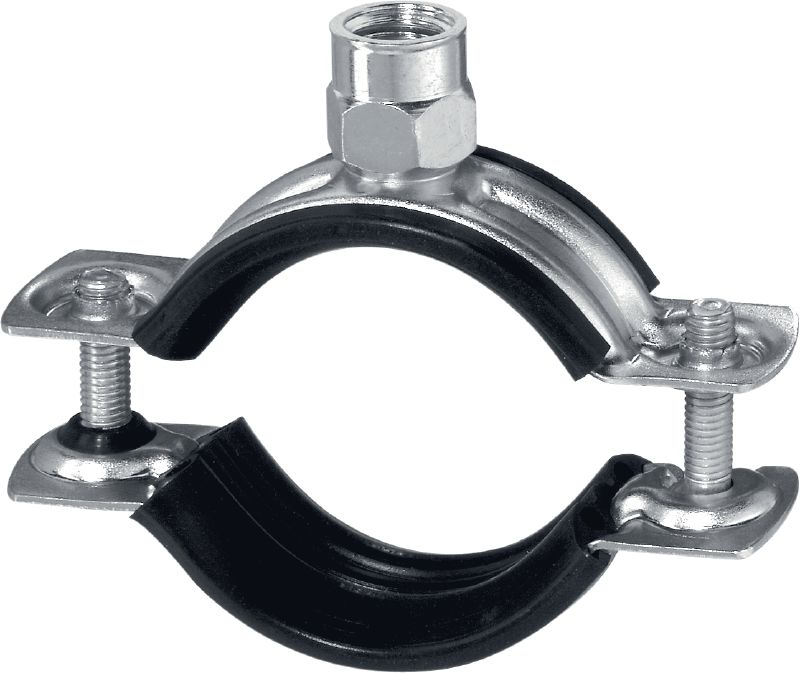

MP-HI Quick-close light-duty pipe clamp

Resid. pipe ring MP-HI 59-66 M8/M10 #386411

Configurator
Technical Data
Documents
Features & Applications
Related Products
17214.tif
17213.tif
MP-HI129
MP-HI Residential pipe rings

Galvanised pipe clamp with sound insulation and quick closure for high productivity in light-duty applications

  • Approvals: ETA
  • Noise reduction: 17 dB (A)
  • Temperature resistance: -40 - 110 °C
premium

Choose options

Clamping range - D
  • 59 - 66 mm
Thread connection - M
  • M8, M10
Nominal pipe size (imperial)
  • 2 in
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 81.30
AUD 8.13 / 1 Piece

Technical Data

Details
Technical illustrations
Approvals
ETA
Noise reduction
17 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
45° ±5° Shore A
Tightening torque
2 Nm
Product class
Premium

Documents

Approval document
Documentation
Sustainability Documentation
Operating Instruction
pdf ETA 21/0803 MP-HI & MP-H (28.01.2022), English, German, French [ 2.3 MB ]

Features & Applications

Features

  • Two-screw pipe clamp with side swiveling mechanism
  • Complete clamping range – in every size from the smallest to largest available diameter across the entire product range
  • Click closure for easier and faster pre-fixing
  • Adhesive-bonded acoustic insulation inlay – helps to prevent drop-out during installation
  • Welded M8/M10 double connection head for more flexibility

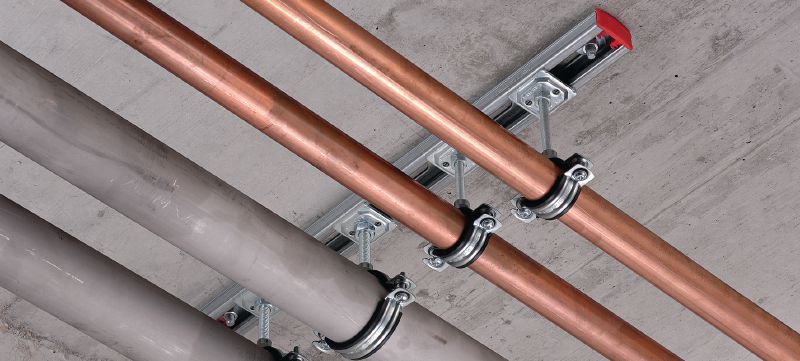

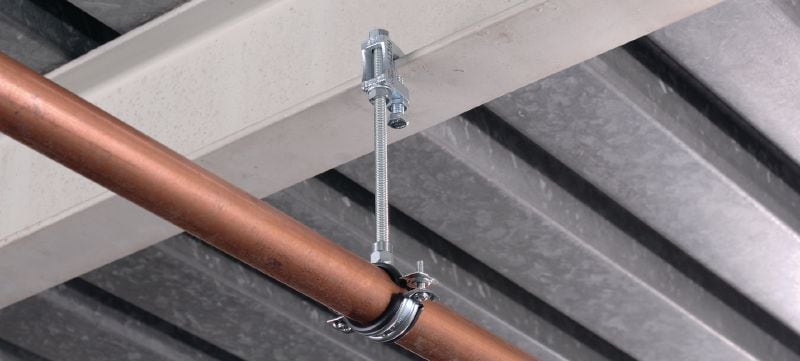

Applications

  • Light-duty pipe installations up to 6" (or 172mm)
  • Fastening fresh water, waste water and heating pipes
  • Sanitary, heating and gas applications with pipes of various materials
  • Recommended for use in dry, interior environments
  • Fastening drinking water pipes and heating pipes in residential and industrial construction
