MP-U-I Quick-close pipe clamp

Pipe clamp MP-U-I 62-67 M8/10 #2242270

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003534_v2 (223712)
LCG003543_v3 (223697)
LCG003536_v2 (223714)
LCG003552_v1_cropped (223745)
LCG003548_v5_cropped (223743)
LCG003548_v3_cropped (223741)
LCG003553_v2_cropped (223744)
LCG003554_v1_cropped (223747)
IS_MP-U-I_00030 (223732)

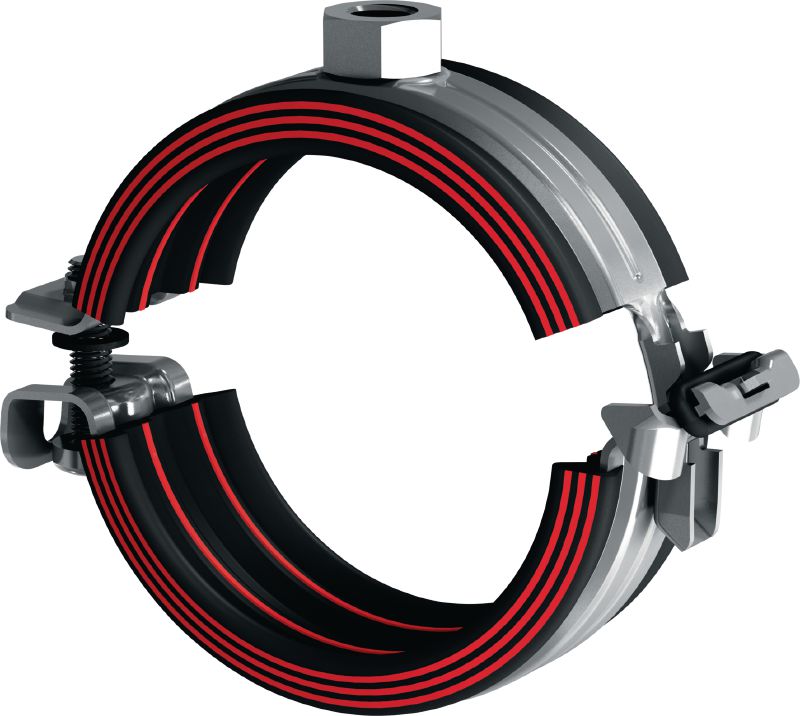

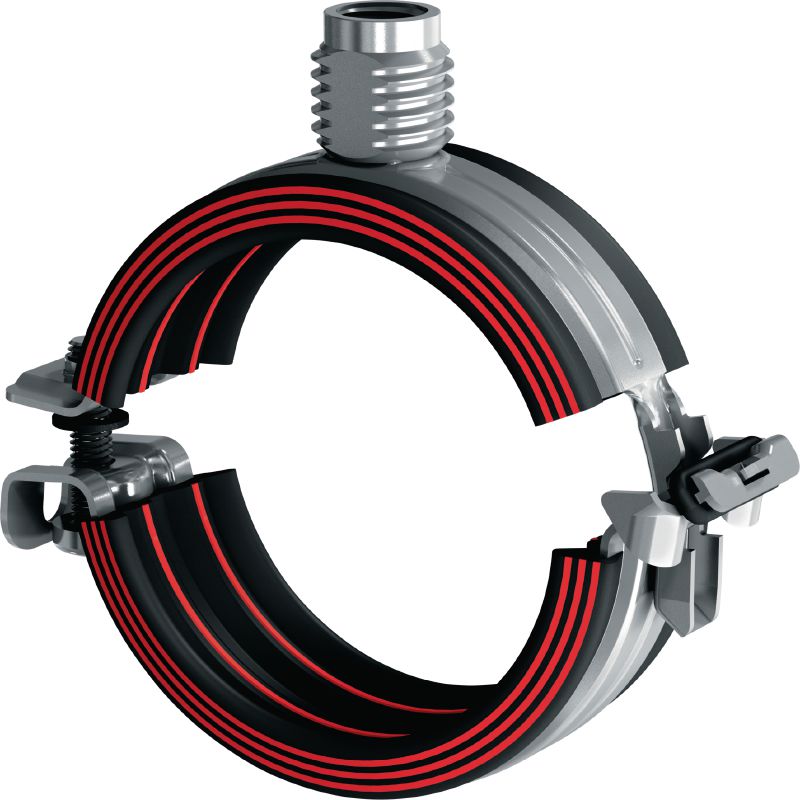

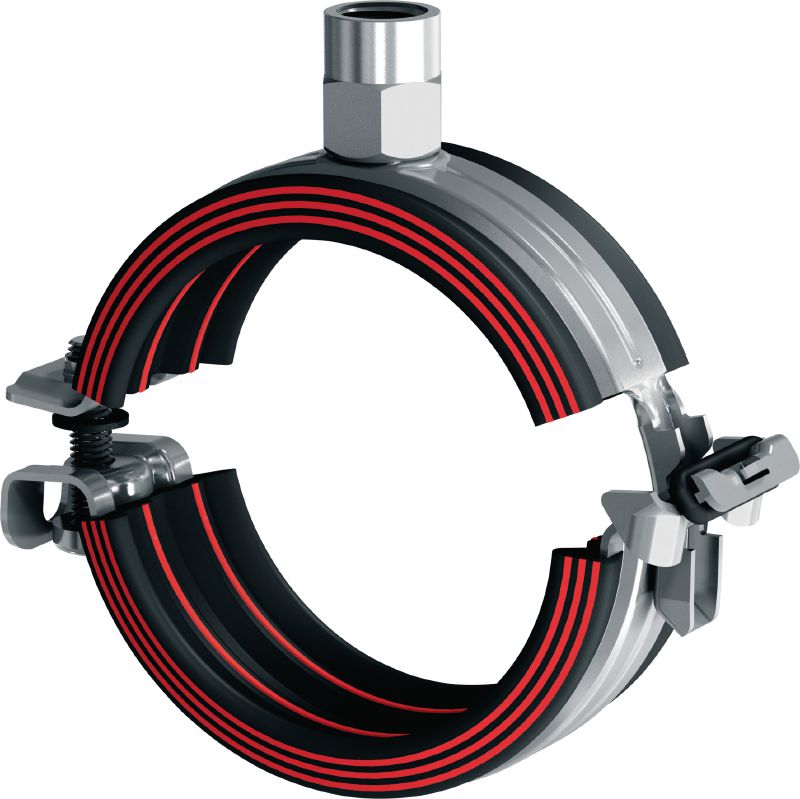

Galvanised pipe clamp with sound insulation and quick closure for maximum productivity in medium-duty applications

  • Approvals: Acoustic insulation DIN 4109 inspected, ETA
  • Fire resistance (yes/no): Yes
  • Noise reduction: 19.4 dB (A)

Choose options

Clamping range - D
  • 62 - 67 mm
Thread connection - M
  • M8, M10
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Approvals
Acoustic insulation DIN 4109 inspected, ETA
Fire resistance (yes/no)
Yes
Noise reduction
19.4 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130, DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
TPE (thermoplastic elastomer)
Hardness insulation material
59°/90° ±3° Shore A
Tightening torque
2 Nm

Documents

Approval document
Test Report
Brochure
Documentation
Sustainability Documentation
Operating Instruction
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]
pdf ETA 20/0952 MP-U-I, MP-U & MP-U-G (30.11.2022), English, German, French [ 6 MB ]

Features & Applications

Features

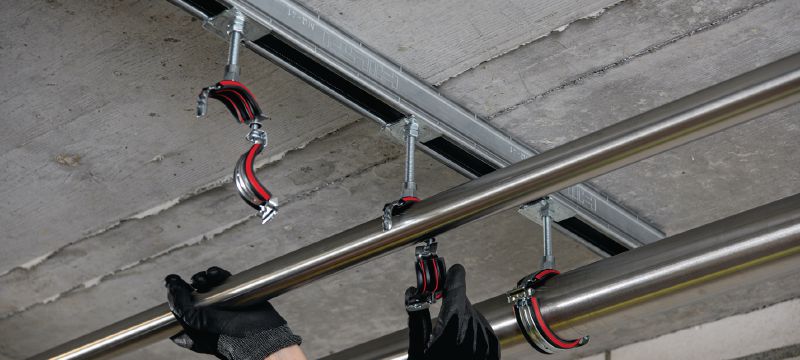

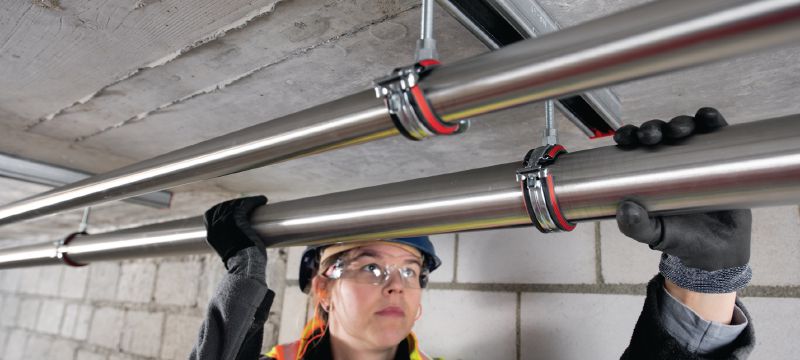

  • Quick-closing safety mechanism – makes pipe installation faster, easier and more reliable, especially overhead

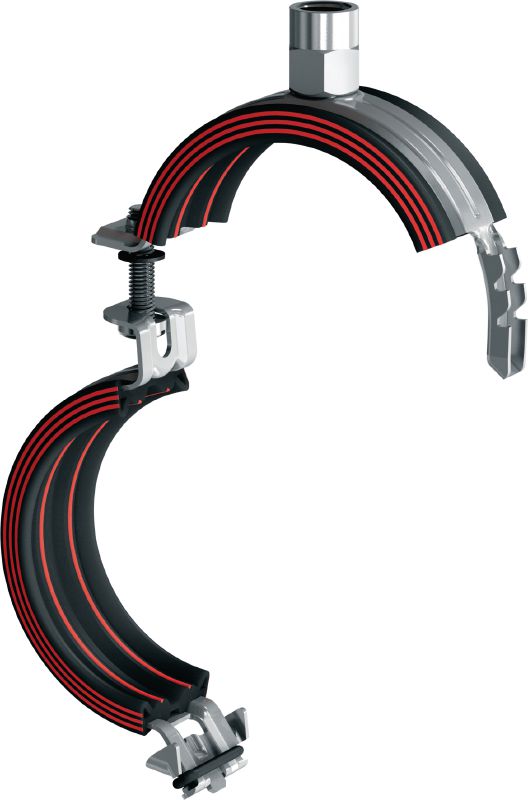

  • Extra-wide opening – pivoting half-ring gives you easier, unhindered access when inserting pipes into the pipe clamp

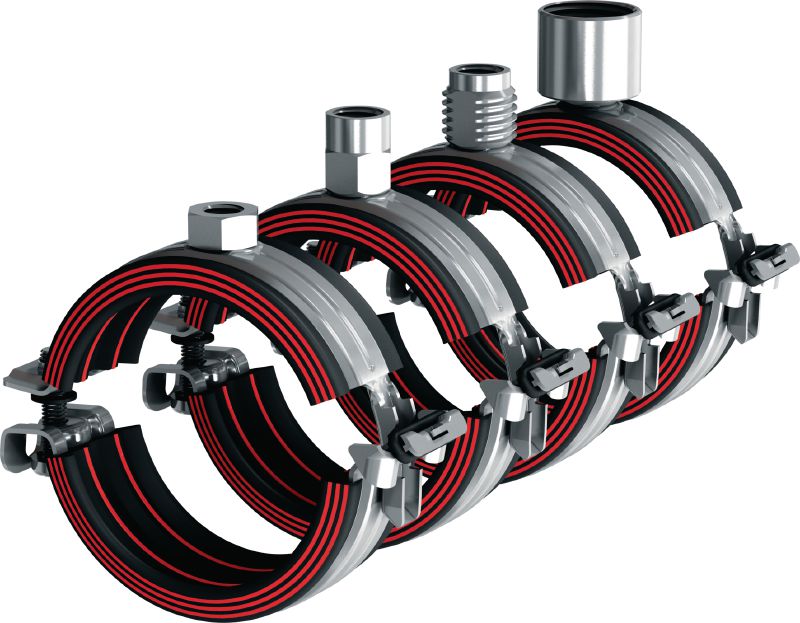

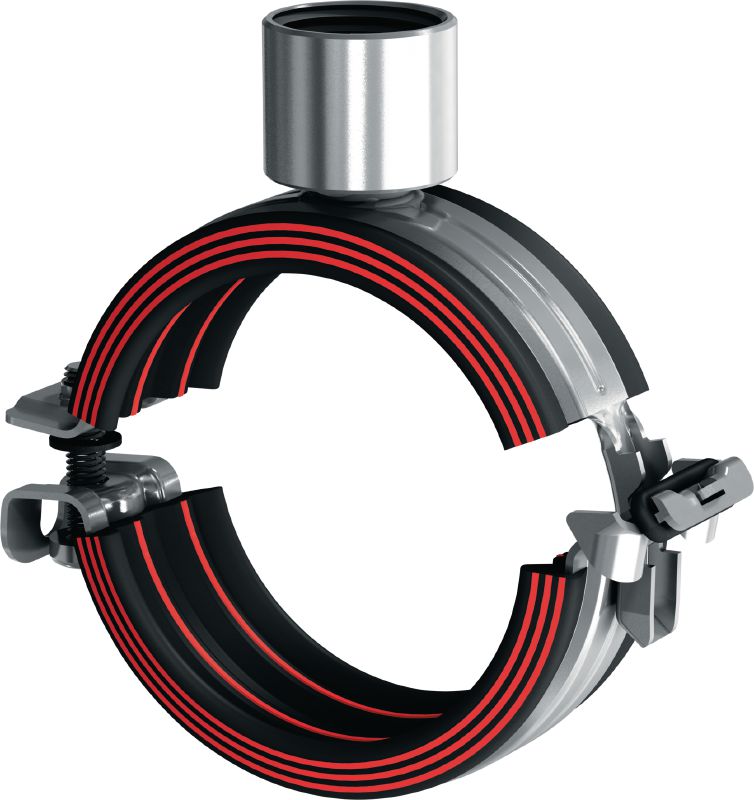

  • More flexibility – pipe clamps available with a variety of connection head options
  • Complete clamping range – from the smallest to largest diameter across the entire product range
  • Profiled rubber inlay with tested sound decoupling – more secure, low-friction surface for easier positioning of the pipe

Applications

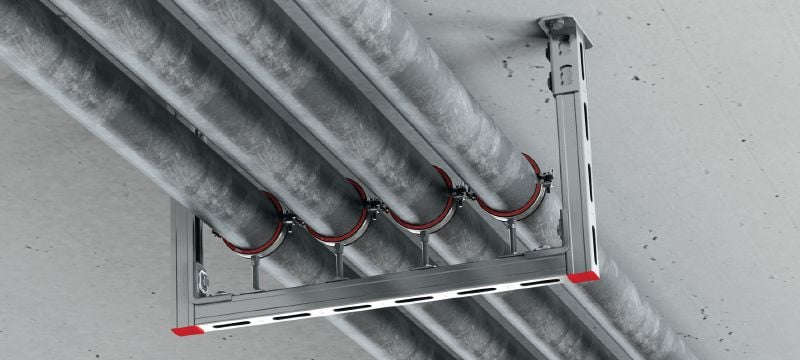

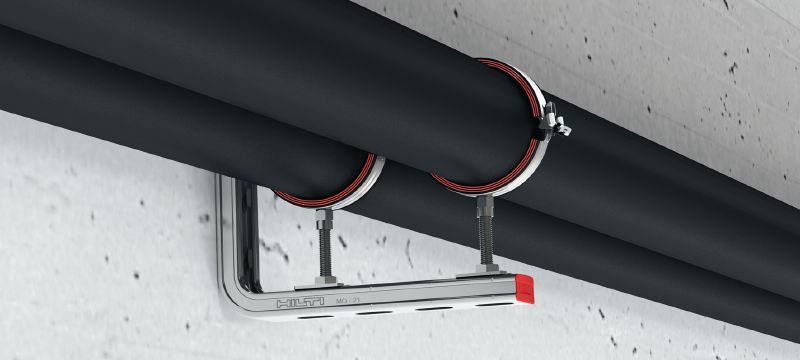

  • medium-duty pipe installations up to 6"

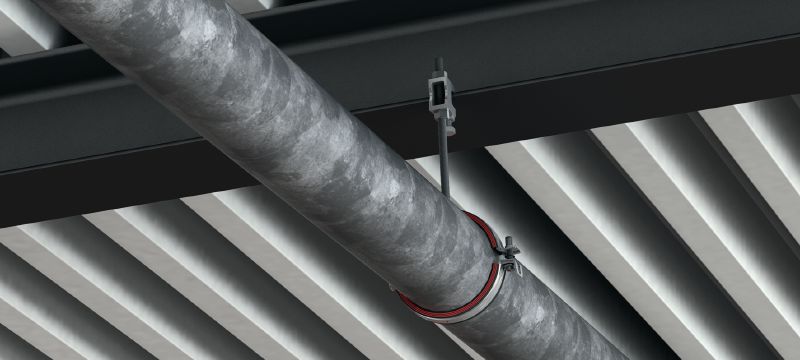

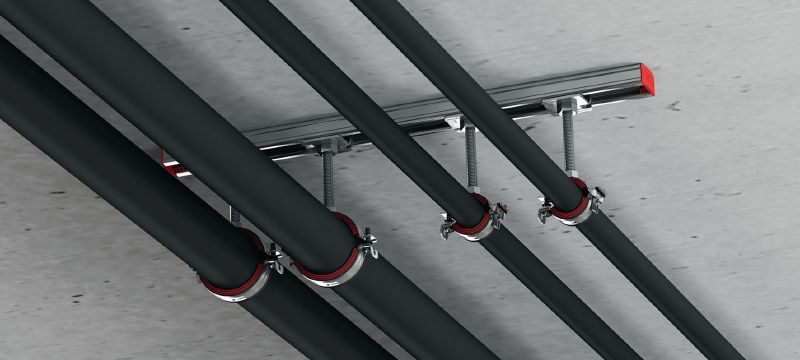

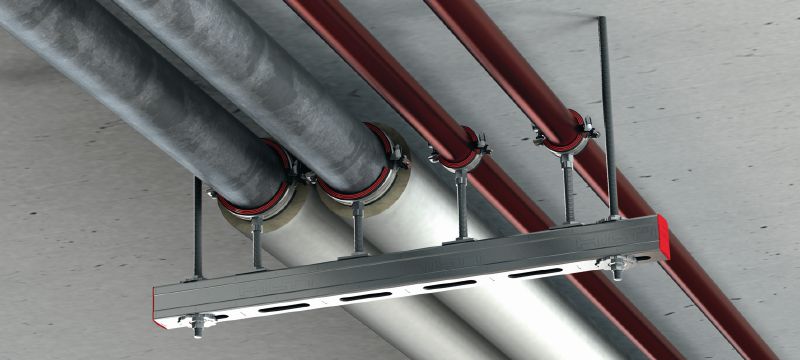

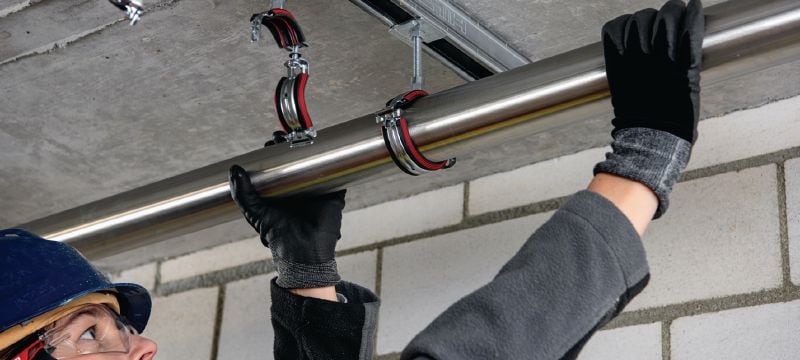

  • Fastening fresh water, waste water, sanitary and heating pipes in residential and industrial construction
  • Installing pipes in areas with fire safety requirements, such as escape and rescue routes
  • Recommended for use in dry, interior environments
  • Please note: externally threaded O16 versions require MP-GA thread adapters (available separately) for coupling to M16 threaded rods or ½" threaded pipes
