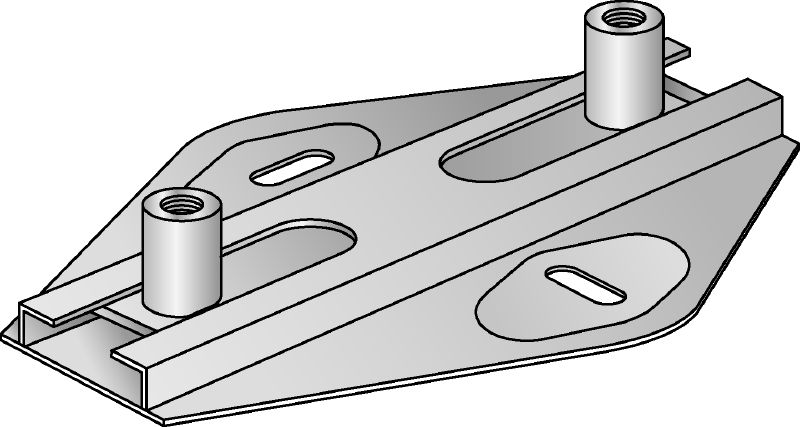

MSG 1,75 Double slide connector
Slide connector MSG 1,75 M12/16D #248210
Galvanised double slide connector for light-duty heating and refrigeration applications
- Material composition: S235JRG - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- M12, M16
Height - H
- 35 mm
Maximum load - F
- 1.75 kN
Pack size
- 10 pc
Quantity
Packs
Total Piece
10
Discounted net
AUD 594.00
AUD 59.40 / 1 Piece
Technical Data
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 130 °C
Base material type
Concrete, Steel, Wood
Coefficient of sliding friction
0.18
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Load classes and capacities matched to Hilti pipe clamps
- Stiffened base plate fits MQ modular support system
- Smooth sliding movement on integrated plastic guide
- Slide cannot pull out
Applications
- Mounting pipes subject to thermal elongation and contraction
- single-point fastening of pipes or in combination with modular support systems
- Recommended for use in dry, interior environments
