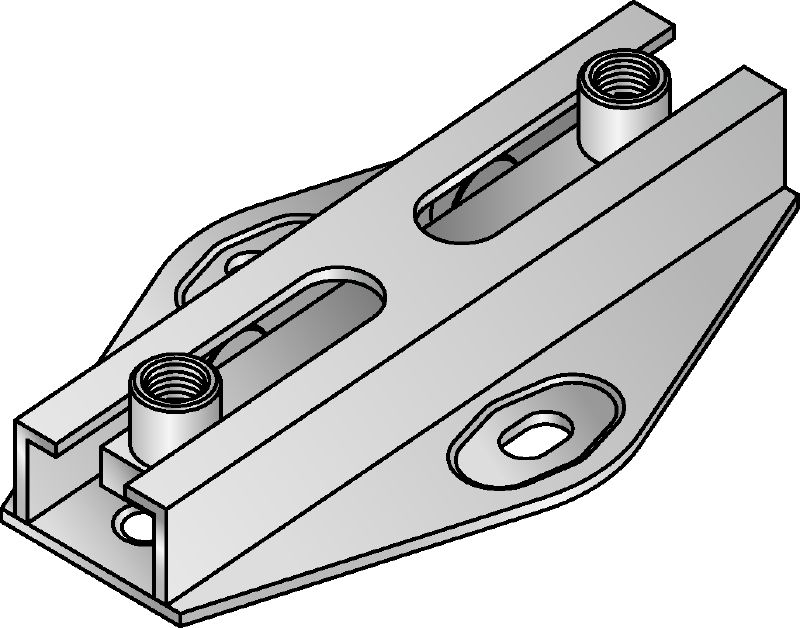

MRG-D6-R double roll connector
Double roll connector MRG-D6-R #304087
Stainless steel (A4) double roll connector for heavy-duty heating and refrigeration applications
- Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
- Surface finish: Outdoor Plus - Stainless Steel
- Environmental conditions: Outdoor high pollution (C4 – high / C5)
Choose options
Thread connection - M
- M12, M16
Height - H
- 44 mm
Maximum load - F
- 6 kN
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
Discounted net
AUD 2,925.00
AUD 585.00 / 1 Piece
Technical Data
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Temperature resistance
-40 - 300 °C
Base material type
Concrete, Steel, Wood
Coefficient of sliding friction
0.15
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Load classes and capacities matched to Hilti pipe clamps
- Stiffened baseplate fits MQ modular support system
- Smooth rolling movement on coated runner in both directions in axial pipe direction
- High temperature resistance up to 300°C – no plastic parts
Applications
- Mounting pipes subject to thermal elongation and contraction
- single-point fastening of pipes or in combination with modular support systems
- Recommended for use in corrosive environments
