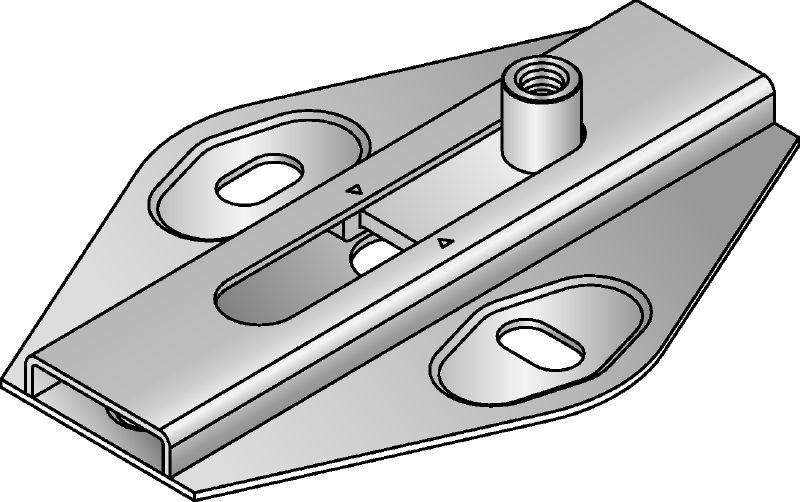

MSG 1,0 slide connector

Name: MSG 1,0 slide connector
Brand: Hilti
SKU: r1364

New product

Item #r1364

Galvanised slide connector for light-duty heating and refrigeration applications

Material composition: S235JRG - DIN EN 10025
Surface finish: Indoor Coated - Electro galvanised
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

More technical data

Features

Can be used for suspended or standing installation applications
Load classes and capacities matched to Hilti pipe clamps
Stiffened baseplate fits MQ modular support system
Smooth sliding movement on integrated plastic guide
Slide cannot pull out

Applications

Mounting pipes subject to thermal elongation and contraction
single-point fastening of pipes or in combination with modular support systems

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Slide connector MSG 1,0 M12/16

- PDF Operating Instruction MSG 1,0 M12/M16, [ 858.9 kB ]
