MQK-41 bracket

Bracket MQK-41/300 #369609

Configurator
Technical Data
Documents
Features & Applications
Related Products
29739.tif
IS_HNA_202_o.eps
eps-file
14703.eps
IS_HNA_202.eps

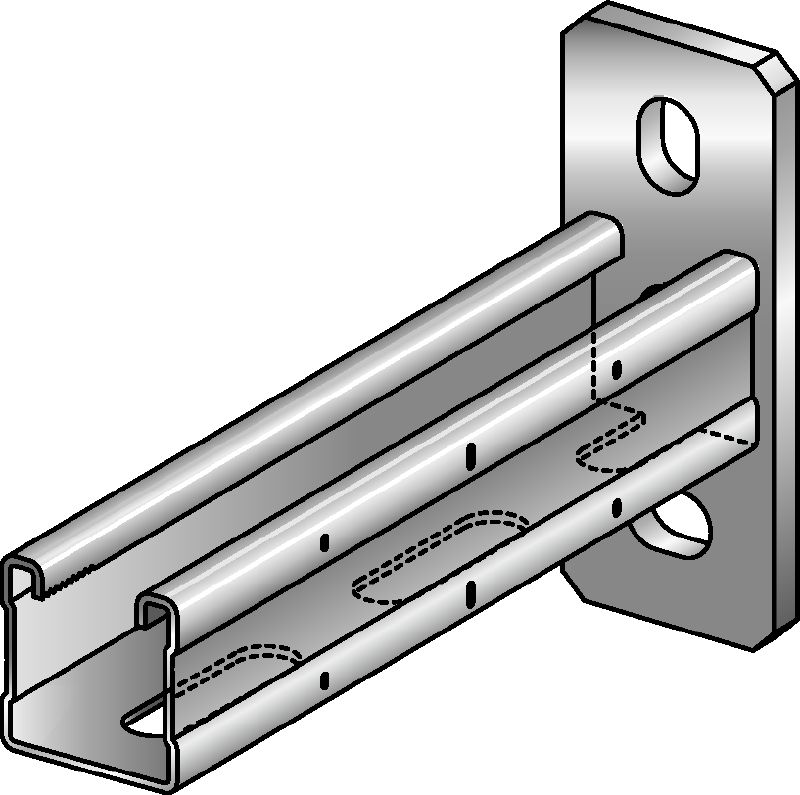

Galvanised C-Channel bracket for medium-duty applications

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Profile
  • MQ-41
Length - L
  • 300 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 1,868.80
AUD 23.36
/
1 Piece

Technical Data

Details
Technical illustrations
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Profile
MQ-41

Documents

Approval document
Brochure
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Single channel, slotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Recommended for installation in dry interiors
  • Installing cable trays, air ducts and pipe supports
