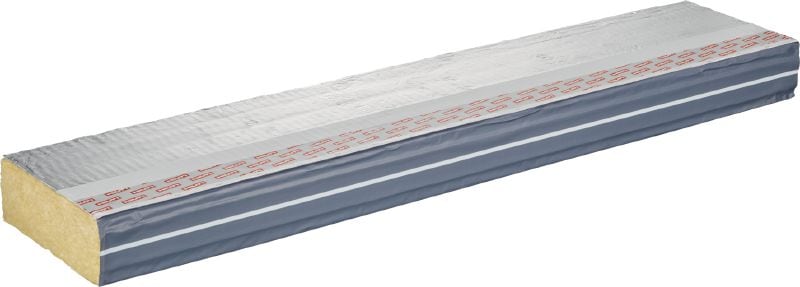

CP 674 V Fire cavity barrier (ventilated)
Cavity barrier CP 674V 100-25 #2312926
Pre-formed intumescent fire cavity barrier for ventilated façades
- Length: 1000 mm
- Application: Ventilated façade
- Movement: No
ultimate
Choose options
Width
- 100 mm
Pack size
- 30 pc
Quantity
Packs
Total Pieces
30
Discounted net
AUD 3,270.00
AUD 109.00 / 1 Piece
Technical Data
Length
1000 mm
Application
Ventilated façade
Movement
No 1
Storage and transportation temperature range
-10 - 40 °C
Product class
Ultimate
- according to HTC 1250
Documents
pdf Product Guide_CP 674_2021_en, English [ 1.3 MB ]
Features & Applications
Features
- Faster, easier installation – cavity barriers arrive on-site ready to fasten in place using the included stainless steel brackets
- Verified fire resistance – tested according to Association for Specialist Fire Protection (ASFP) TGD 19
- Extensive range – barriers and brackets available for most common cavity widths
- Design support available – contact your local Hilti Building Envelope Specialists for advice on complex passive fire protection detailing
Applications

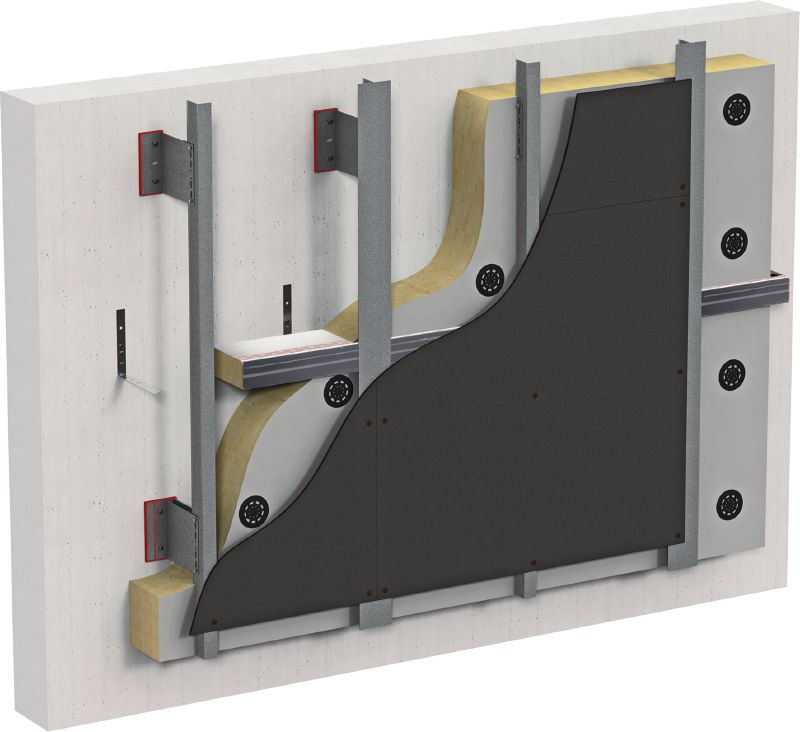

- Sealing building envelope cavities to better prevent the spread of fire via the façade
- Firestopping ventilated rainscreen cladding facades with gaps of 25 mm or less
- Providing up to 60 minutes fire integrity and 30 minutes insulation according to TGD19
- Providing up to 90 minutes fire integrity and 60 minutes insulation according to BS476-20
