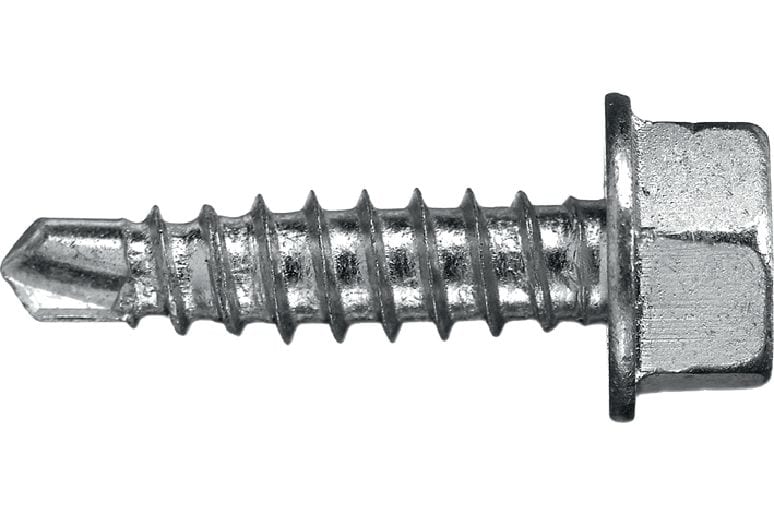

S-MD 01 Z Self-drilling metal screws
Self-drill screw S-MD01Z 4,8x13 #224501
Self-drilling screw (zinc-plated carbon steel) without washer for thin metal-to-metal fastenings (up to 3 mm)
- Screw drive/recess type: Hexagon 8
- Base materials: Carbon steel
- Environmental conditions: Dry indoor
premium
Choose options
Drilling capacity range DC
- 1.2 - 2.75 mm
Thickness fastened range MF
- 1.2 - 4 mm
Length
- 13 mm
Pack size
- 1000 pc
Quantity
Packs
Total Pieces
1000
Discounted net
AUD 102.00
AUD 0.10
/
1 Piece
Technical Data
Screw drive/recess type
Hexagon 8
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
4.8 mm
Length
13 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none
Documents
pdf ETA-10/0182_for_SM_screws_2019-05-02_(de-en-fr), German, English, French [ 6.9 MB ]
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- Drill point
- Reliable, approved fastenings
- Fast and robust drill tip
- Greater working convenience
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Galvanised carbon steel for fastening in dry, indoor environments
- Thin metal-to-metal connections (up to 3 mm)
- Sheet metal thickness 1.2 to 2.75 mm
- Steel sheeting on steel substructures indoors, screw fastenings for liner trays
