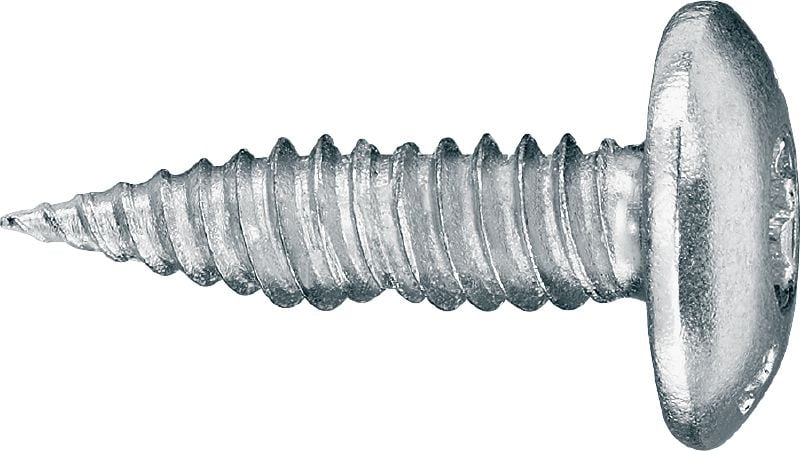

S-MS 01PS Self-drilling sheet metal screws
Self-drilling screw (A2 stainless steel) without washer for chipless fastening of thin metal sheets (up to 2x 1.0 mm)
- Screw drive/recess type: TX 25
- Base materials: Carbon steel, Aluminium
- Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
premium
Choose options
Drilling capacity range DC
- 0.8 - 2 mm
Thickness fastened range MF
- 0.8 - 4 mm
Length
- 20 mm
Pack size
- 1000 pc
Quantity
Packs
Total Pieces
1000
Discounted net
Technical Data
Screw drive/recess type
TX 25
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
4.8 mm
Length
20 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none
Documents
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English, German [ 4.4 MB ]
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- Fast and sharp screw tip for chipless fastening and no work for cleaning metal chips
- Pan head for improved aesthetics and better accessibility in tight spaces
- Attractive final appearance – screw head can be coloured to match the façade
- High load values
Applications
- Fastening thin metal sheets (up to 2x 1.0 mm)
- Stainless steel (A2) for fastening in mildly corrosive environments
- Fastening liner trays, joints between trapezoidal profile sheets and longitudinal overlaps of wall cassettes
- Fastening overlap joints in loadbearing (decking) sheets
- Joints between trapezoidal profile sheets
For approval or certificate information, please see individual items.
