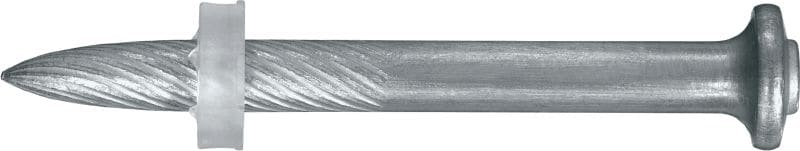

X-U P8 Steel/concrete nails
Ultimate-performance single nail for fastening to concrete and steel using powder-actuated tools
- Base materials: Concrete (soft), Concrete (tough), Steel
- Minimum thickness of base material (concrete): 80 mm
- Minimum thickness of base material (steel): 6 mm
premium
Customers also searched for concrete nail, premium nail, powder actuated nail or single shot.
Technical Data
Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Washer size
8 mm
Point type
Ballistic point, knurled
Approvals
ABS, COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 2
Product class
Premium
Documents
Features & Applications
Features
- Galvanised nails for fastenings on concrete or steel
- Fully-knurled point for higher application limits on steel and suitability for use on hard concrete
- High application limits, high ultimate tensile loads
- One nail for almost any application
- Thermo-pulled ballistic point for optimum driving characteristics
Applications
- Fastenings on concrete and steel
- Fastening metal track for plasterboard/dry lining to concrete
- Fastening wall ties
- Fastening wood to concrete
- Setting up formwork and safety barriers
For approval or certificate information, please see individual items.
