X-P P8 Universal nails

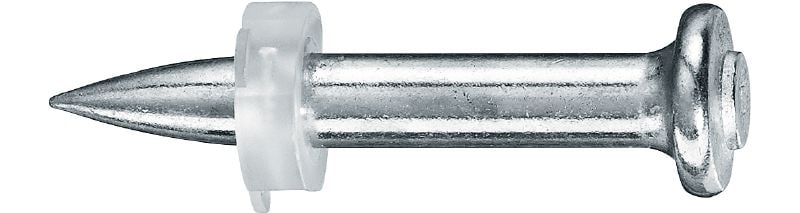

Concrete nail X-P 34 P8 #2150368

L091565 (170517)
DX 2
L070702.tiff
DX 2
L090220_cropped (104288)

Ultimate-performance single nail for fastening to concrete and other base materials using powder-actuated tools

  • Base materials: Concrete (soft), Concrete (tough), Masonry (solid limestone brick)
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Choose options

Fastener shank length
  • 34 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 153.00
AUD 1.53
/
1 Piece

Technical Data

Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Washer size
8 mm
Point type
Long conical tip
Approvals
ICC-ES
For use with (tools)
DX 2, DX 351, DX 351 M/E, DX 36, DX 460 F8, DX 462 F8, DX 5 F8
Product class
Ultimate

Documents

pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf X-P Data Sheet, English [ 2.1 MB ]

Features & Applications

Features

  • Designed for fastening on tough concrete (tested and approved for 8000 psi concrete, up to 1" embedment) and steel
  • Long conical nail tip designed for best drivability in tough concrete
  • Highest hardness (59 HRC) for best penetration in tough concrete
  • Provides effective embedment depths of 3/4", 1", 1 1/4" and 1 1/2" when used with tracks up to 14 ga thick
  • Highest load performance on tough concrete

Applications

  • Fastening to soft or tough concrete and steel

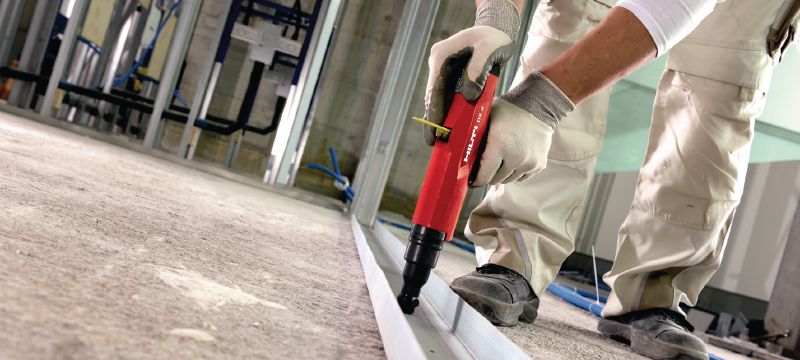

  • Fastening metal track for plasterboard/dry lining to concrete
  • Fastening wall ties
  • Fastening wood to concrete
  • Setting up formwork and safety barriers
