X-X MX Masonry nails

Configurator
Technical Data
Documents
Features & Applications
Related Products
L125625 (224765)
L125623 (224767)
L125621 (224764)
L124197_cropped (210111)
L151093_cropped (3558720)
L124208_cropped (210087)
L151084_cropped (3558718)

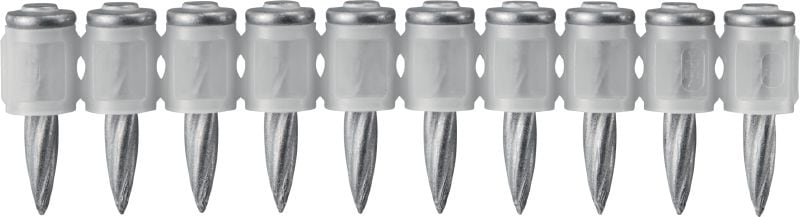

Collated nail for fastening to concrete using powder-actuated nailers

  • Base materials: Concrete (soft), Concrete (tough)
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Customers also searched for XX, X-X, X-X 27 or drywall nail.

Choose options

Fastener shank length
  • 27 mm
Pack size
  • 1 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 127.00

Technical Data

Base materials
Concrete (soft), Concrete (tough)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Washer size
8 mm
Point type
Helix tip
For use with (tools)
DX 351, DX 5, DX 6
Product class
Ultimate

Documents

Approval document
Technical information
Operating Instruction
Material safety datasheet
pdf ETA-23/0911 for X-X Fasteners for drywall track & deflection head fastening to concrete, French, English, Italian, Polish [ 3.9 MB ]

Features & Applications

Features

  • Ultimate performance backed up by strong approval base for the use with drywall tracks in special applications (Seismic, Deflection head, cracked concrete)
  • Innovative helix nail tip – for better drivability when fastening to tough concrete
  • High hardness (57.5 HRC) nails for better penetration in tough concrete
  • High installation success rate for high productivity and cost savings
  • Higher productivity in serial applications thanks to nail collation for fastening tools with a magazine

Applications

  • Fixed track fastening
  • Deflection head fastening with gypsum strips
  • Plasterboard track fastening for use in seismic conditions
  • Plasterboard track fastening in cracked concrete
  • Deflection head track fastening

For approval or certificate information, please see individual items.
