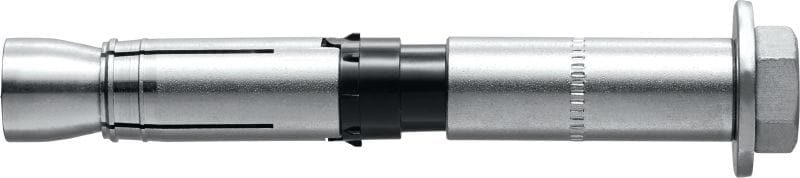

HSL-3-R Heavy-duty wedge anchor
Ultimate-performance removable heavy-duty wedge anchor with approvals for fire, seismic and cracked concrete (A4 stainless steel, hex head)
- Material, corrosion: Stainless steel, A4
- Head configuration: Hex head
- Approvals / test reports: ETA, Fire, ICC-ES report (concrete)
Choose options
Anchor size
- M8
- M10
- M12
- M16
- M20
Anchor length
- 93 mm
- 124 mm
- 127 mm
- 145 mm
- 149 mm
- 170 mm
- 200 mm
Pack size
- 6 pc
- 10 pc
- 20 pc
- 40 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 552.00
Technical Data
Material, corrosion
Stainless steel, A4
Head configuration
Hex head
Approvals / test reports
ETA, Fire, ICC-ES report (concrete)
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes
Documents
Features & Applications
Features
- Combining high tension and shear load resistance along with an easy and reliable installation, HSL-3 are a safe and cost efficient alternative to classical fastening solution such as studs or chemical anchors
- Excels in cracked concrete from C20/25 to C50/60
- Extreme shear load resistance thanks to high strength sleeve
- Backed by both international ETA and ICC-ESR approvals
- Collapsing element prevents anchor from spinning in the hole and ensures reliable clamping of the fixture
Applications
- Structural steel
- Curtain walls
For approval or certificate information, please see individual items.
