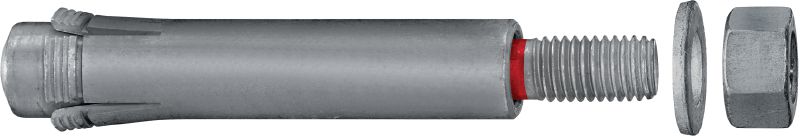

HMU-PF Undercut anchor
High-performance undercut anchor for cracked concrete (hot-dip galvanised)
- Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, Seismic
Choose options
Anchor size
- M12
- M16
Standard embedment depth
- 80 mm
- 100 mm
- 125 mm
Max. fixture thickness at standard embedment depth
- 20 mm
- 30 mm
- 35 mm
- 60 mm
- 65 mm
Pack size
- 12 pc
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 326.00
Technical Data
Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
Seismic loading
Yes
Fatigue loading
Yes
PROFIS software
Yes
Type of fastening
Pre-fastening
Documents
Features & Applications
Features
- More reliable mechanical interlock due to consistent high quality undercut
- Comes with a hot-dip galvanised coating as standard for improved resistance against corrosion
- Cost-efficient heavy-duty anchoring solution for large-scale, repetitive fastening applications
Applications
- Medium- to heavy-duty fastenings in cracked or uncracked concrete
- Metro applications including overhead catenary systems, fire protection pipes and 3rd rail
- Utilities fastenings requiring additional corrosion protection
For approval or certificate information, please see individual items.
