HUS3-P 6 Concrete screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L112899 (193601)
SID 22-A_app3_L047668.tif
L036091.tif

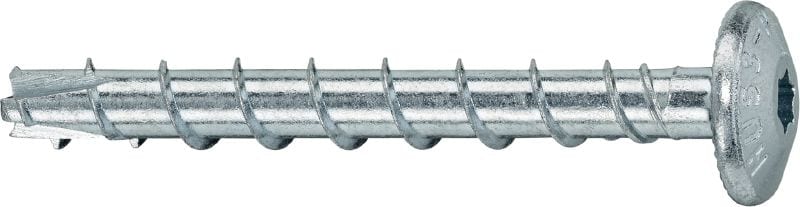

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, pan head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Pan head
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • 6 mm
Anchor length
  • 40 mm
  • 60 mm
  • 80 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 150.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Pan head
Approvals / test reports
ETA, Fire
Base materials
Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Type of fastening
Through-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Approval document
Technical information
Brochure
Instruction for use
pdf ETA 13/1038 for HUS3-H/C/HF/A/I/I-Flex/P/PS/PL screw anchor (ETAG 13/1038, Option 1), English, German, French, Polish [ 14 MB ]
pdf ETA 10/0005 for HUS3 screw anchor size 6 multiple applications, German, English, French [ 11.1 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • Flat head configuration for easy adjustment of new channel system components
  • Reliable and easy to set – HSE product profile available
  • Reduced edge and spacing distances

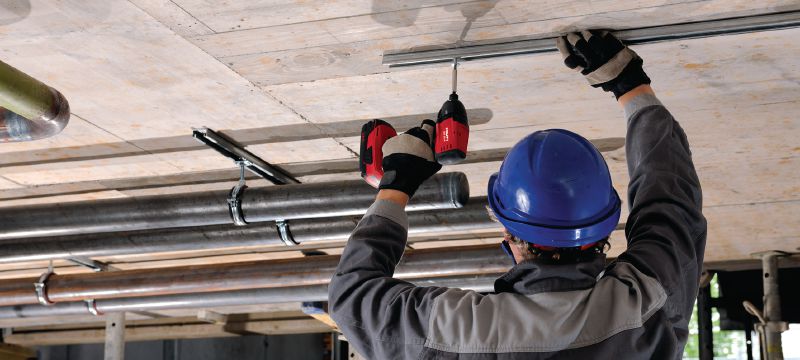

  • Ideal for overhead installation – greatly simplifies the work

Applications

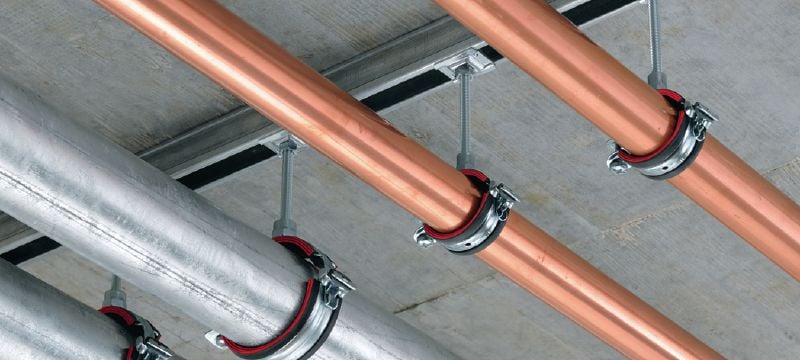

  • Fastening channels directly to the ceiling for the installation of pipes or ventilation ducts
  • Fastening handrails or railings and other ornamental steelwork
  • Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
