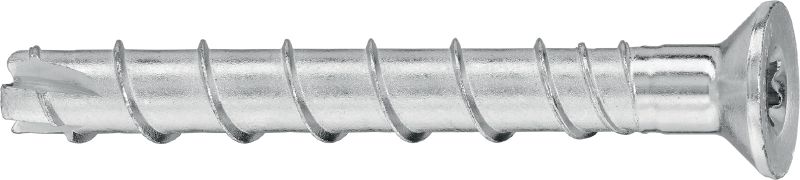

HUS3-C 8/10 Screw anchor
Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, countersunk head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Countersunk Torx
- Approvals / test reports: ETA, Fire, Seismic
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk Torx
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Yes
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Tested/approved for diamond drilling
No
Documents
Features & Applications
Features
- Higher productivity – less drilling and fewer operations than with conventional anchors
- Countersunk head for neat appearance when fastening through in-place parts
- Can be set more reliably without need for a torque wrench
- Three embedment depths for maximum design flexibility
- Adjustable screw: adjustability is included in the ETA approval
Applications

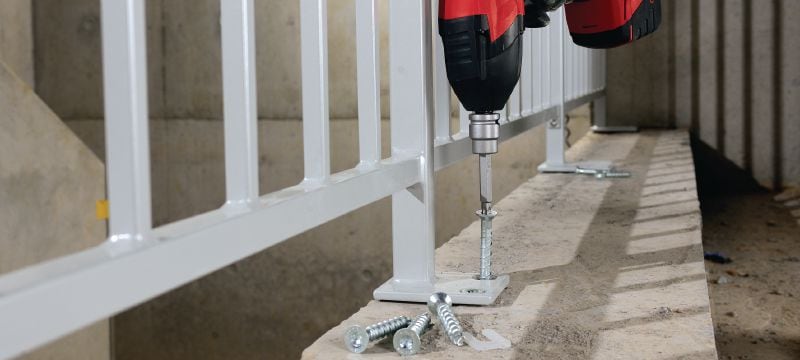

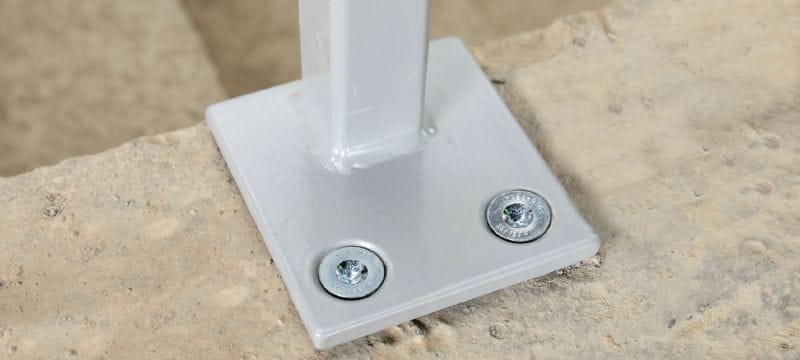

- Railings and balustrades
- Architectural metal
- Glazing
For approval or certificate information, please see individual items.
