HDA-PR Undercut anchor
Undercut anchor HDA-PR M10x100/20 #339346
Ultimate-performance pre-set undercut anchor for dynamic loads (stainless steel)
- Material, corrosion: Stainless steel, A4
- Head configuration: Externally threaded
- Approvals / test reports: ETA, ICC-ES report (concrete), Nuclear (NQA-1), Seismic
Choose options
Anchor size
- M10
- M12
- M16
Standard embedment depth
- 100 mm
- 125 mm
- 190 mm
Max. fixture thickness at standard embedment depth
- 20 mm
- 30 mm
- 40 mm
- 60 mm
Wrench size
- 17 mm
- 19 mm
- 24 mm
Pack size
- 4 pc
- 8 pc
- 12 pc
Quantity
Packs
Total Piece
12
Discounted net
AUD 4,370.40
AUD 364.20 / 1 Piece
Technical Data
Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, ICC-ES report (concrete), Nuclear (NQA-1), Seismic
Max. fixture thickness at standard embedment depth
20 mm
Fatigue loading
Yes
PROFIS software
Yes
Documents
Features & Applications
Features
- Combines the flexibility and immediate loading of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
- Close spacing and small edge distances thanks to low expansion forces
- Self-undercutting facilitates fast and reliable installation without the need for additional tools
- The keying effect provides a secure hold even in cracked concrete under dynamic loading
- Manufactured under the NQA-1 nuclear quality assurance program with comprehensive approvals
Applications
- Safety-relevant, heavy-duty fastening for dynamic loading in cracked or uncracked concrete and corrosive environments, including applications in nuclear power plants

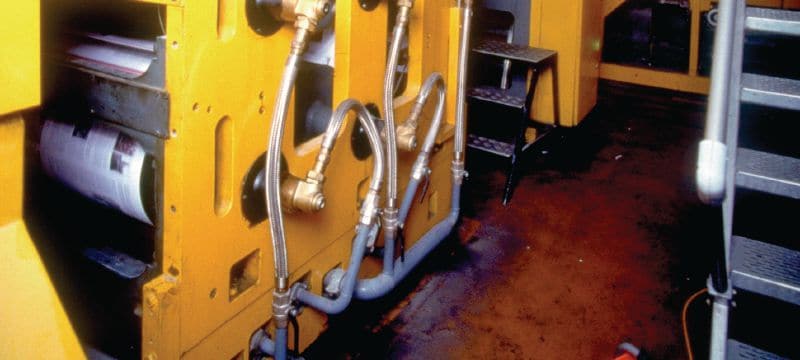

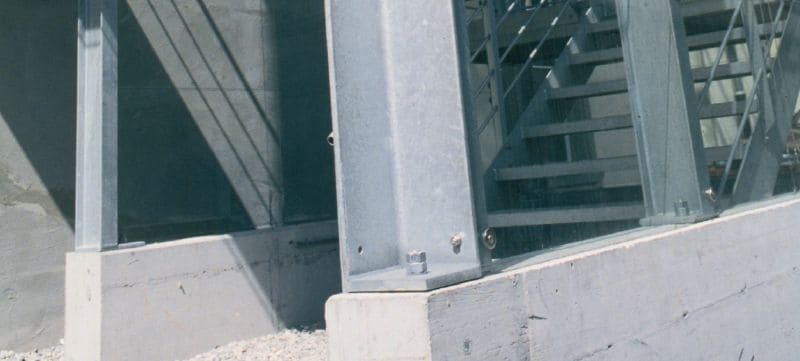

- Anchoring supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fastening points, elevator tracks, bridge retrofitting etc.
