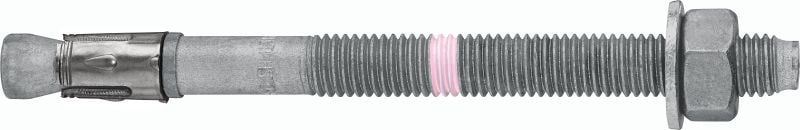

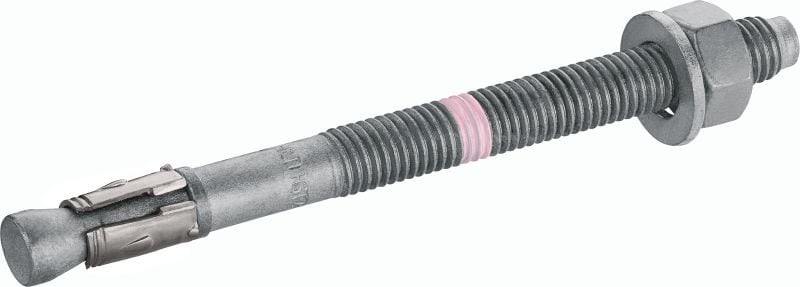

HST2-F V3 wedge anchor
High-performance wedge anchor (M8-M16) for static and seismic loads in cracked concrete (hot-dip galvanised)
- Material, corrosion: Carbon Steel, Hot-Dip Galvanised
- Head configuration: Externally threaded
- Installation tools: TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
Choose options
Anchor size
- M8
- M10
- M12
- M16
Anchor length
- 55 mm
- 70 mm
- 85 mm
- 90 mm
- 100 mm
- 105 mm
- 110 mm
- 115 mm
- 120 mm
- 125 mm
- 130 mm
- 140 mm
- 145 mm
- 175 mm
- 185 mm
- 205 mm
Pack size
- 16 pc
- 25 pc
- 40 pc
- 50 pc
- 80 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 126.25
Technical Data
Material, corrosion
Carbon Steel, Hot-Dip Galvanised
Head configuration
Externally threaded
Installation tools
TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench, SIW 6AT-22 Mid-Torque impact wrench
PROFIS software
Yes
Documents
Features & Applications
Features
- High-performance – enhanced wedge and sleeve design for improved pull-out loads in cracked concrete conditions, allowing you to optimise anchor length and embedment
- Faster and easier installation – instal our full range of anchors quickly with our Adaptive torque compatible tools and without the need for borehole cleaning
- Variable embedment depths – instal with shallow anchor embedment for productivity or deep anchor embedment for increased performance with flexible edge and spacing distances
- Efficient designs – pair with PROFIS Engineering software to simplify the design of steel-concrete connections
- Corrosion resistant – hot-dip galvanised for use outdoors and assessed for a working life of up to 25 years in moderately corrosive C3 environments
Applications

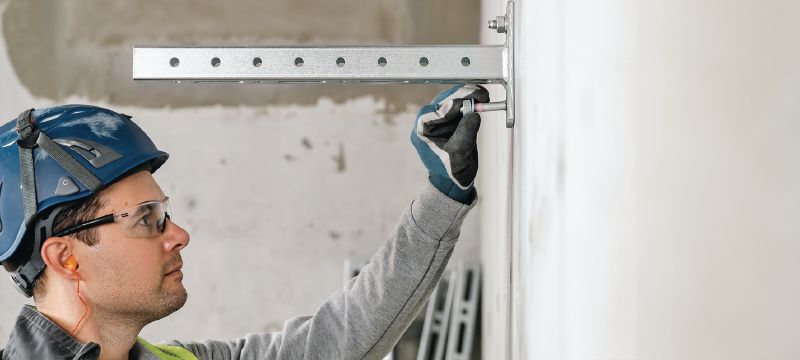

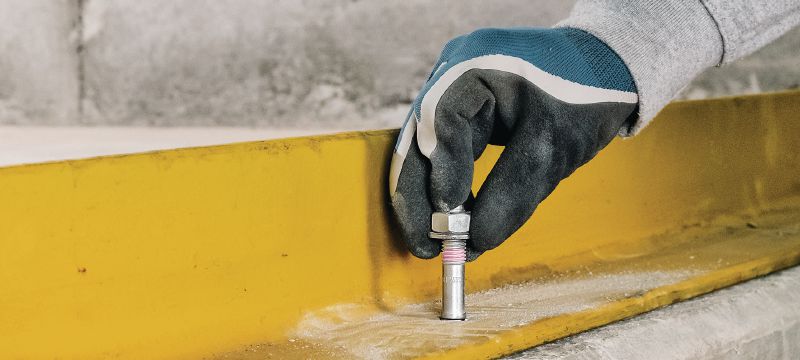

- Fastening baseplates, handrails, façade systems and mechanical, electrical or plumbing supports to concrete
- Fastening in cracked and uncracked concrete required for building code compliance
- Qualified to resist seismic actions and loads (M10-M16)
- Suitable for indoor and outdoor use
For approval or certificate information, please see individual items.
