new

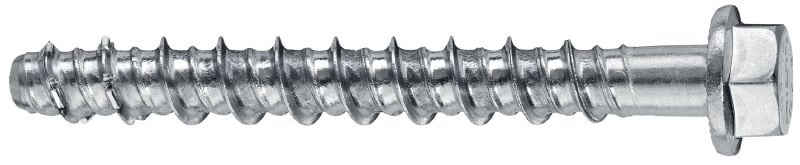

HUS4-HR Screw anchor
Screw anchor HUS4-HR 14x80 10/- #2357644
High-performing hexagonal head screw anchor for fastening to concrete (stainless steel)
- Material, corrosion: Stainless Steel, 316
- Head configuration: Hex head
- Socket size: 21 mm
Choose options
Anchor size
- 6 mm
- 8 mm
- 10 mm
- 14 mm
Anchor length
- 35 mm
- 45 mm
- 55 mm
- 60 mm
- 65 mm
- 70 mm
- 75 mm
- 80 mm
- 85 mm
- 95 mm
- 105 mm
- 115 mm
- 130 mm
- 135 mm
Pack size
- 8 pc
- 25 pc
- 50 pc
Quantity
Packs
Total Piece
8
Discounted net
AUD 216.00
AUD 27.00 / 1 Piece
Technical Data
Material, corrosion
Stainless Steel, 316
Head configuration
Hex head
Socket size
21 mm
Drill bit diameter
14 mm
Approvals / test reports
ETA, Fire
PROFIS software
Yes
Material composition
Stainless steel, A4
Documents
Features & Applications
Features
- Removable and high corrosion resistance – ideal for outdoor applications
- Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
- Improved setting with less blocking – thanks to smaller core diameter and new thread design
- Hexagonal head – with an integrated washer
- Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs
Applications

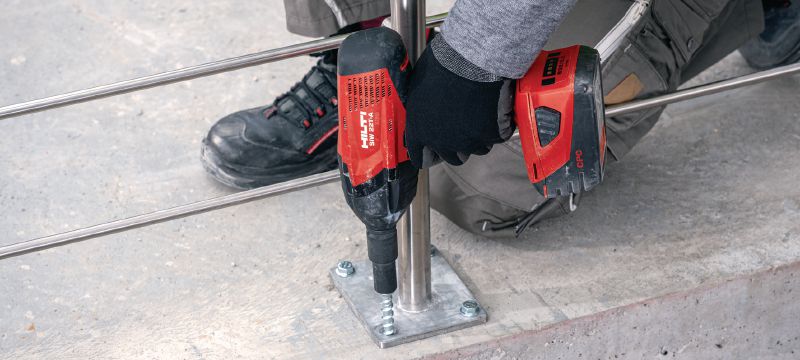

- Fastening of baseplates – such as secondary steelwork, fences, handrails and racking systems
- Suitable for use in uncracked and cracked concrete
- Assessed for use in a range of conditions: static, quasi-static, seismic (C1) and fire
- Suitable for dry indoor and outdoor use, including high corrosion environments
