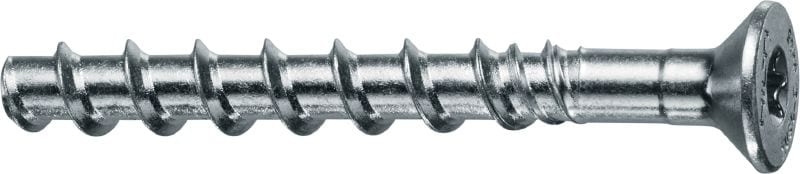

HUS4-C Screw anchor
High-performing countersunk head screw anchor for fastening to concrete and masonry (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Countersunk Torx
- Approvals / test reports: ETA, Fire, Seismic
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk Torx
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
- Simpler to install – less drilling, no cleaning, no high-accuracy torque wrench and no hammering required
- Improved setting with less blocking – thanks to smaller core diameter and new thread design
- Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
- Cost-saving design – pair with PROFIS Engineering software to optimize designs and reduce material costs
Applications
- Fastening non-structural baseplates – such as handrails, staircases and balustrades
- Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use
For approval or certificate information, please see individual items.
