HSC-IR Shallow undercut anchor

Safety anchor HSC-IR M10x50 #31153

Configurator
Technical Data
Documents
Features & Applications
Related Products
6143.tif
HSC-IR
43709_s.tif
6265.tif
HDA
HSC-IR

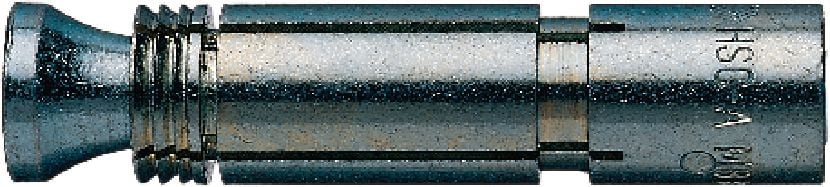

Ultimate-performance shallow undercut anchor (stainless steel, internal thread)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Internally Threaded
  • Approvals / test reports: ETA, Fire

Choose options

Anchor size
  • M10
  • M12
Standard embedment depth
  • 50 mm
  • 60 mm
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 1,725.00
AUD 69.00 / 1 Piece

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Internally Threaded
Approvals / test reports
ETA, Fire
PROFIS software
Yes

Documents

Technical information
Approval document
Brochure
Instruction for use
pdf Tech_HSC_2023_en, English [ 966.2 KB ]

Features & Applications

Features

  • Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
  • Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
  • Requires a plain cylindrical drilled hole, no separate undercutting operation

Applications

  • Safety-relevant, medium-duty fastenings in cracked or uncracked concrete and corrosive environments, especially where shallow embedment and/or small edge distance or close spacing is required

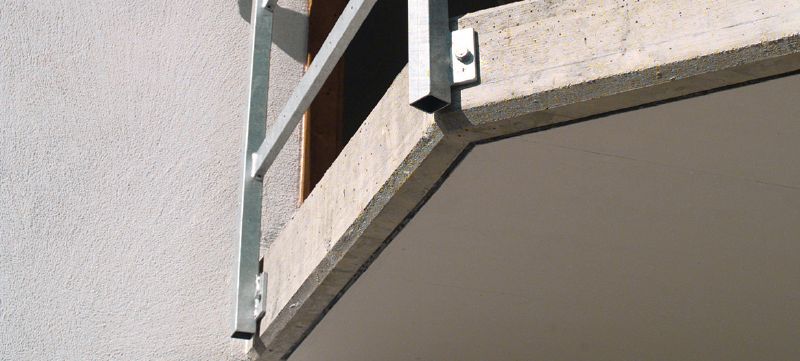

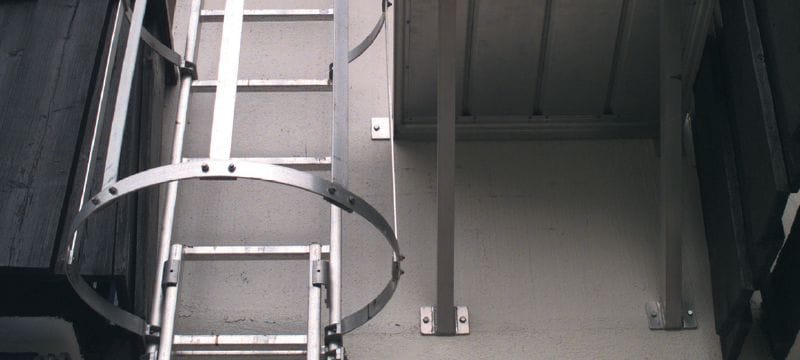

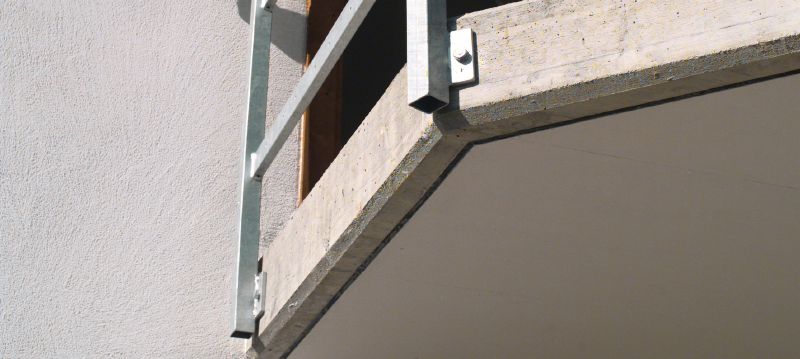

  • Examples: stair hand rails, balcony safety railings, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.
