X-FCS Grating saddle clip
Grating saddle clip with tensile and shear resistance
- Application: Grating
- Approvals: ABS, BV, DNV GL, LR
- For use with (tools): DX 460, DX 5, DX 6
premium
Technical Data
Application
Grating
Approvals
ABS, BV, DNV GL, LR
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Coastal areas, Outdoor, areas with heavy industrial pollution, Close proximity to roads
Product class
Premium
Documents
Features & Applications
Features
- Body with special key design to provide excellent robustness
- Grating fastening with tensile and shear resistance capacity

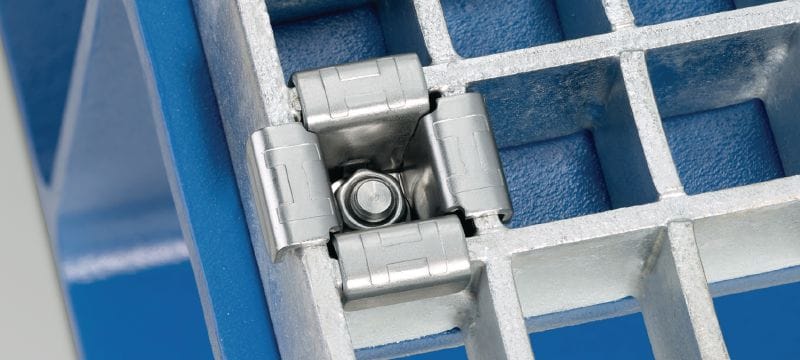

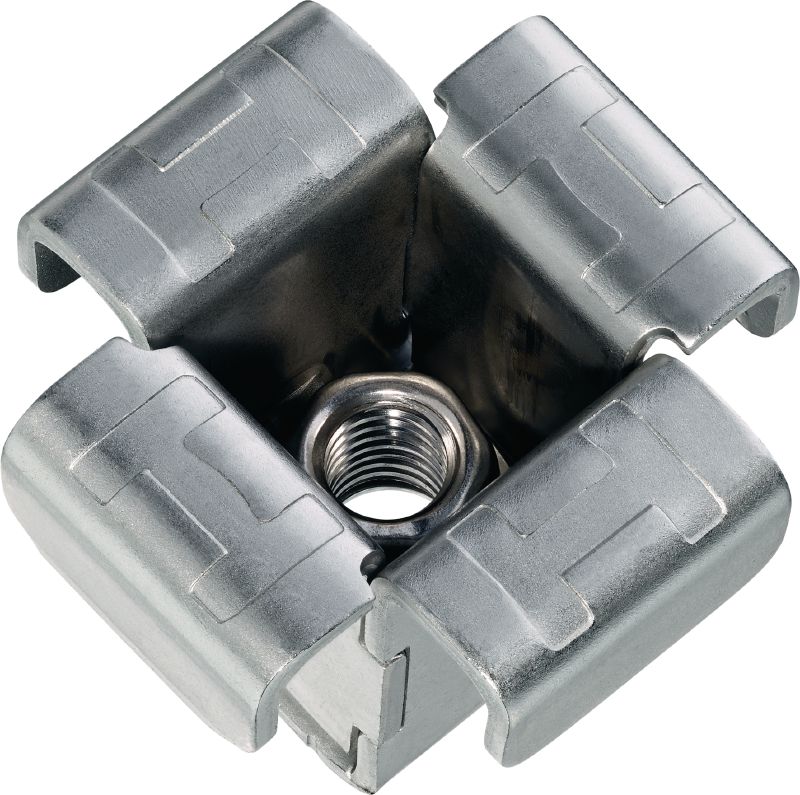

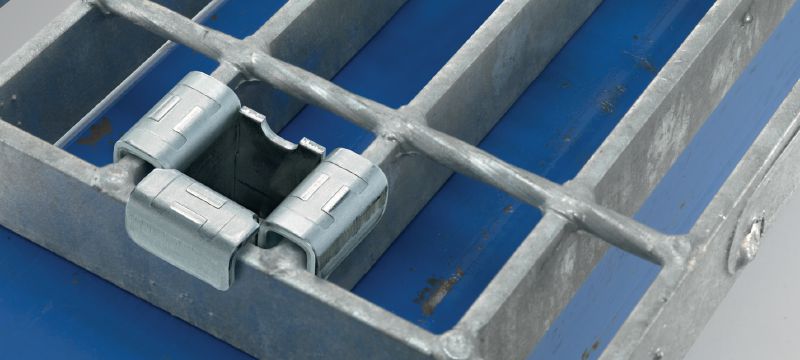

- Two versions – three ears for rectangular grating, or four ears for square grating
- Size suitable for most common grating sizes
- Tightened with a standard M12 nut setter – for ease, speed and reliability
Applications
- Fastening grating in shear-relevant zones
- Fastening grating subject to equipment movement, e.g. trolley zone
- Fastening grating vertically, e.g. during transportation and launch
For approval or certificate information, please see individual items.
