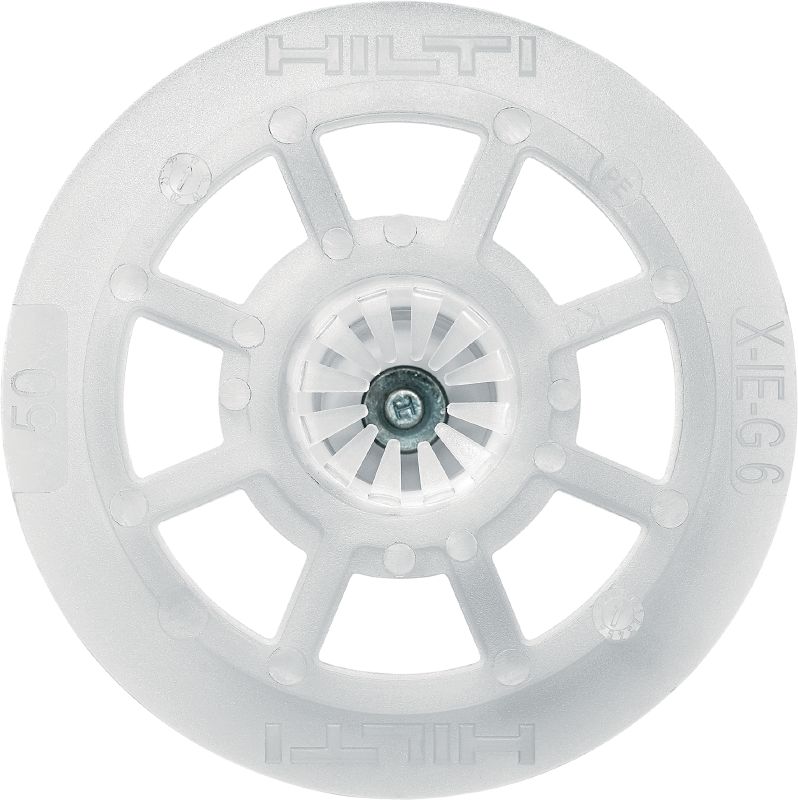

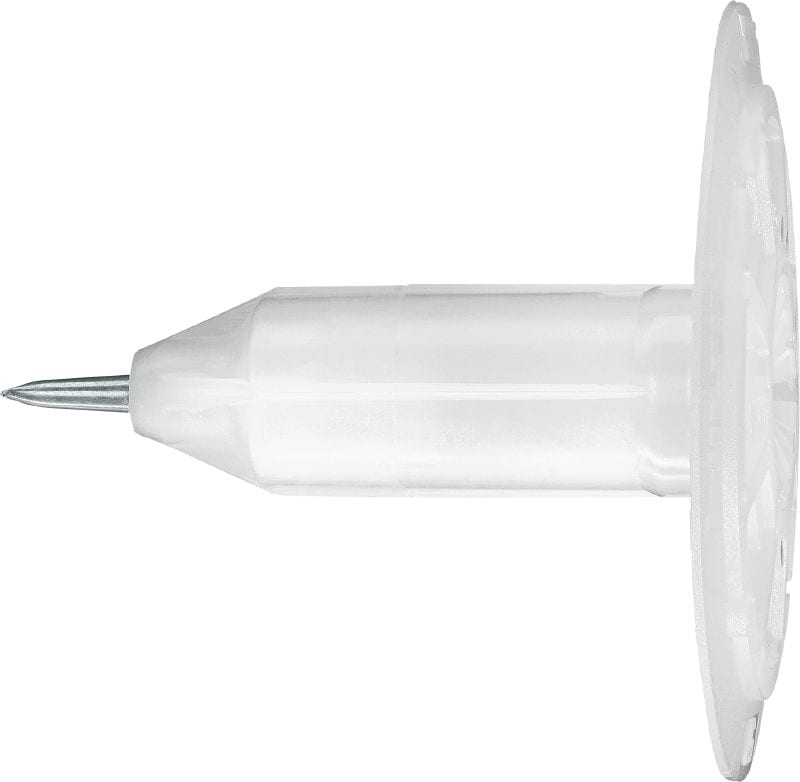

X-IE-G 6 Insulation fastener
Insulation fasteners pre-mounted with X-P G2 high-performance nails for fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fiber-cement faced boards, to soft concrete and to masonry
- Application: Rigid Board Insulation, Mineral Wool Insulation
- Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
- Base materials: Concrete (soft)
premium
Technical Data
Application
Rigid Board Insulation, Mineral Wool Insulation
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Base materials
Concrete (soft)
For use with (tools)
GX-IE
Minimum thickness of base material (concrete)
60 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Colour
Colourless
Product class
Premium
Documents
Features & Applications
Features
- Quick and easy fastening method for insulation applications – up to five times faster than conventional methods
- Suitable for 25-200 mm thick insulation
- Fastener tip designed to improve fastening quality and ease penetration into insulation material
- No holes in the fastener shank – helping prevent mold and moisture penetration in the insulation material (applies to fastener lengths from 40-200 mm)
- Unique "fin" self-sealing design on the plate – allowing one-step fastening
Applications
- One system for fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fibre-cement faced boards to soft concrete and to masonry

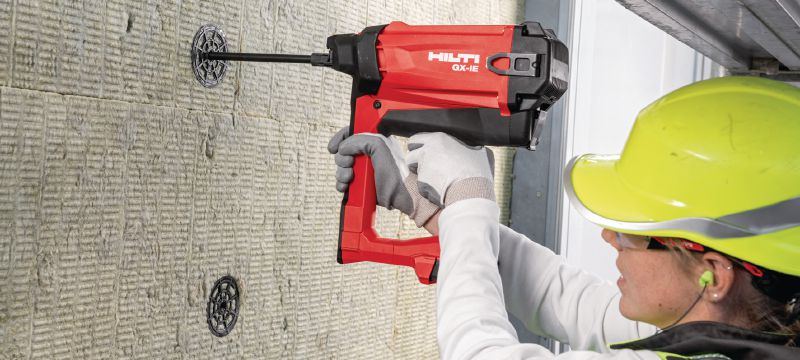

- Fastening insulation material to walls and ceilings
- Fastening insulation material in light-ventilated façade application (LVF)

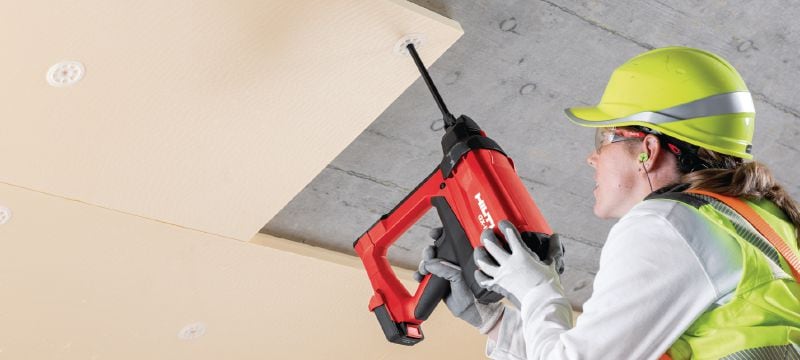

- Fastening insulation material to the bottom of concrete slab (ceiling)

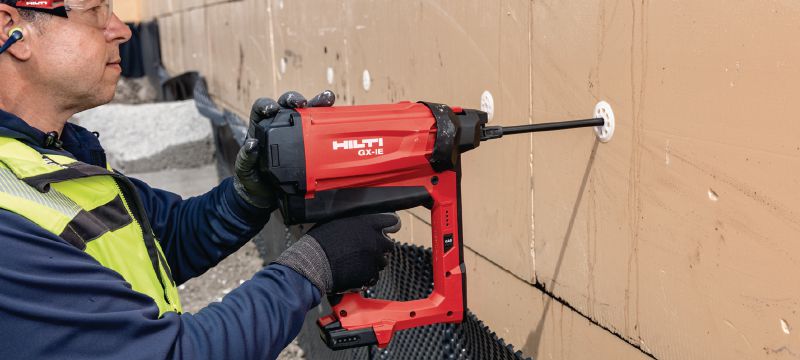

- Fastening basement perimeter wall insulation (foundation wall)
For approval or certificate information, please see individual items.
Related Products
Gas nailer for insulation fastening on soft and some tough concrete and cold-formed steel studs (insulation board thickness 25-150 mm| 1" – 5 7/8")
Insulation fasteners pre-mounted with X-P G3 high-performance nails for fixing soft mineral wool on soft and some tough concrete
