FX 3 Support plates

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130683 (2527147)
L131033_cropped (2806679)

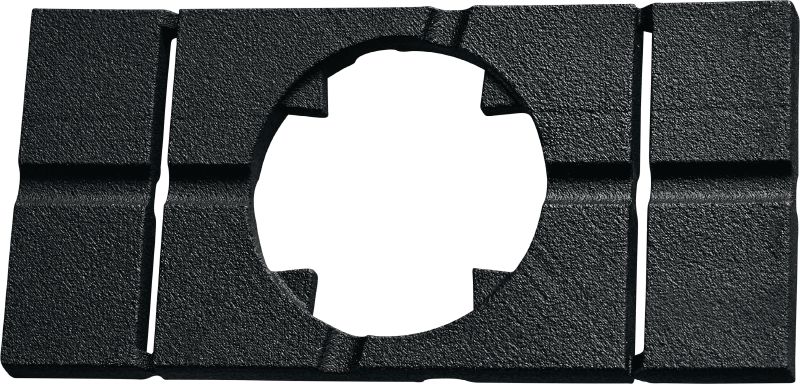

Support plates to create a stable base for narrow material when fastening with F-BT-MR SN fusion threaded studs

  • Application: Multi-purpose fastening (electrical, mechanical elements and support system fastenings)
  • For use with (tools): FX 3
  • Material composition: Ultramid® A3WG10

Choose options

Length
  • 100 mm
Pack size
  • 200 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 988.00

Technical Data

Application
Multi-purpose fastening (electrical, mechanical elements and support system fastenings)
For use with (tools)
FX 3
Material composition
Ultramid® A3WG10
Environmental conditions
Outdoor, areas with heavy industrial pollution
Base materials
Carbon steel

Documents

Technical information
Operating Instruction
pdf Cordless Stud Fusion (CSF) Technical Manual 09/2025, English [ 6.2 MB ]
pdf Cordless Stud Fusion (CSF) Technical Manual 05/2023, Revision 2 02/2025, English [ 5.8 MB ]
pdf Cordless Stud Fusion (CSF): F-BT Visual Examination Catalogue - OTR/5724148/03, 2025-05-02, including grinding, English [ 1.3 MB ]
pdf Cordless Stud Fusion (CSF): F-BT Visual Examination Catalogue - OTR 5724148/02, 2022-11-14 , English, Arabic, French, German, Indonesian, Italian, Korean, Spanish, Thai, Turkish, Vietnamese [ 3.6 MB ]

Features & Applications

Features

  • Provides a stable base for fastening narrow material when using F-BT studs with sealing washer
  • Helps you maximize the performance of multiple studs and fastened materials (suitable for Stud Fusion only)

Applications

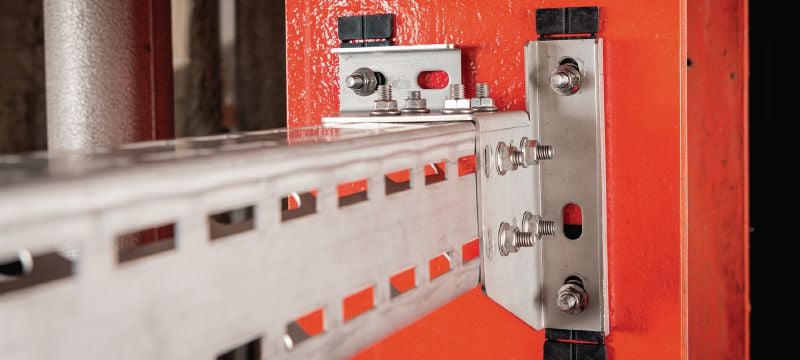

  • Fastening to steel in polluted/corrosive environments (up to C5) involving higher tensile loads or thinner base materials
  • Steel fastening in oil and gas offshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
  • Steel fastening in oil and gas onshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
  • Shipbuilding – false ceiling fixing, inspection grids, water spray separators, outfitting, supports for electric/piping/ventilation services

For approval or certificate information, please see individual items.
