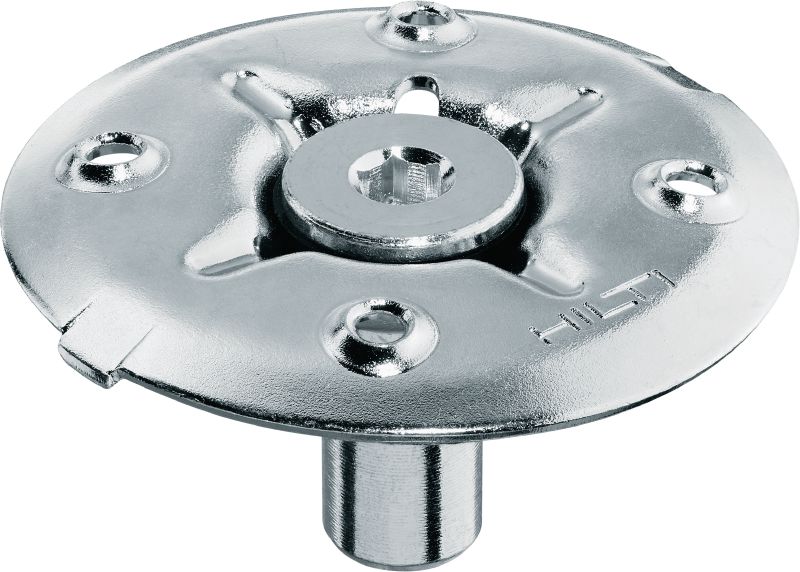

X-FCM-F Grating fastener disc (coated)
Grating fastener disc for use with threaded studs in mildly corrosive environments
- Application: Grating
- Approvals: ABS, BV, DNV GL, LR
- For use with (tools): DX 351
ultimate
Choose options
Grating height
- 23 - 28 mm
- 28 - 33 mm
- 32 - 37 mm
- 38 - 43 mm
- 48 - 53 mm
Grating width range
- 18 - 40 mm
Corrosion protection
- Duplex coating, equivalent to 45 µm hot-dip galvanised
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 1,640.00
Technical Data
Application
Grating
Approvals
ABS, BV, DNV GL, LR
For use with (tools)
DX 351
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanised
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate
Documents
Features & Applications
Features
- Duplex-coated disc provides corrosion resistance
- Locking tabs on the disc help to prevent self-loosening
- Non-slip disc surface
- Cordless solution
Applications

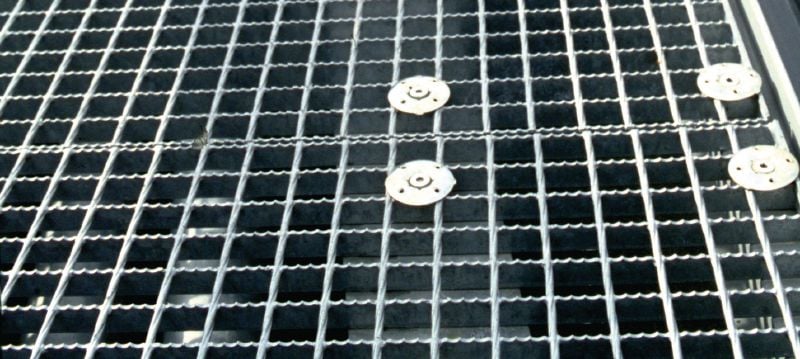

- Grating fastener disc for use in mildly corrosive environments with suitable M8 threaded stud
- Fasting grating with height of 25-50 mm
For approval or certificate information, please see individual items.
