HAC Front-of-slab rebar channel

Configurator
Technical Data
Documents
Features & Applications
Related Products
CRFoS, HAC, Anchor Channel, Corner, Front of Slab, Rebar
L058949_v1 (186182)
HAC_CRFoS (76126)

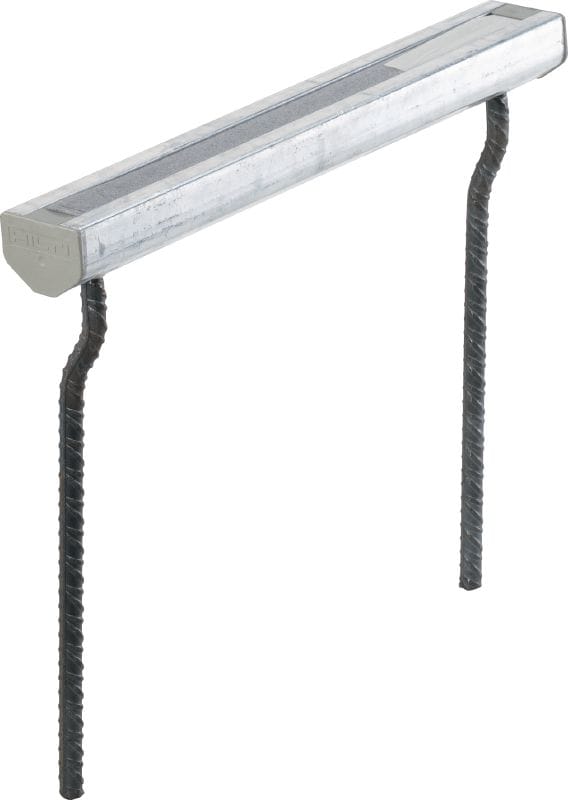

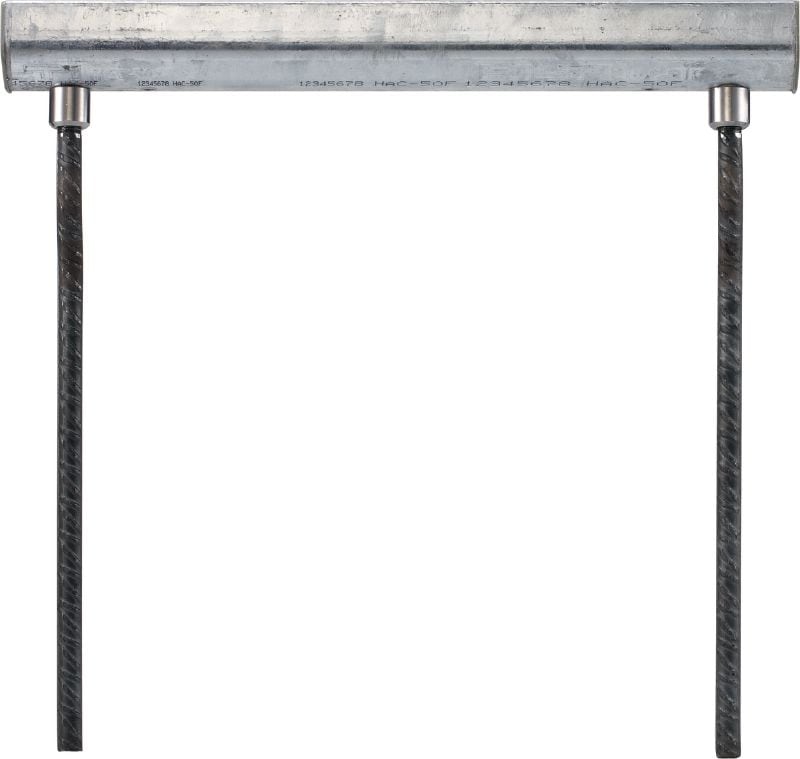

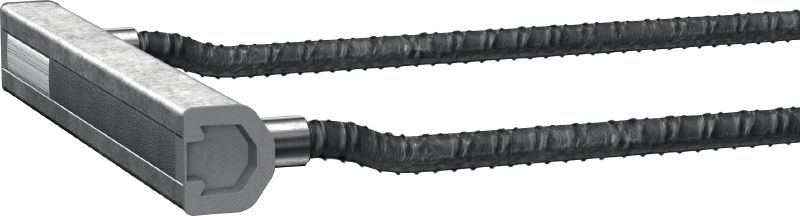

Anchor channel HAC-70 380/300 CRFoS, Cast-in, Front of slap, Corner, Rebar

Cast-in anchor channels in standard sizes and lengths for front-of-slab applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised
  • PROFIS software: Yes

Choose options

Channel profile
  • HAC-50
  • HAC-60
Length
  • 250 mm
  • 300 mm
  • 350 mm
  • 450 mm
  • 550 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 150.00

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised
PROFIS software
Yes

Documents

Technical information
Operating Instruction
pdf HAC_HAC-C(-P) Field_Fixes, English [ 44.5 MB ]
pdf Anchor Channel Design Guide, English [ 9.1 MB ]

Features & Applications

Features

  • Safety-tested system of standard HAC anchor channels in combination with rebar
  • Efficient and intuitive to design with PROFIS Anchor Channel software – a powerful planning tool based on the ESR-3520 compliance evaluation as well as AC232 and ACI 318 requirements
  • Two separate corner channels cater to the needs of various building angles
  • LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece

Applications

  • Front-of-slab applications for curtain wall façades
  • Front-of-slab applications in composite slabs

For approval or certificate information, please see individual items.
