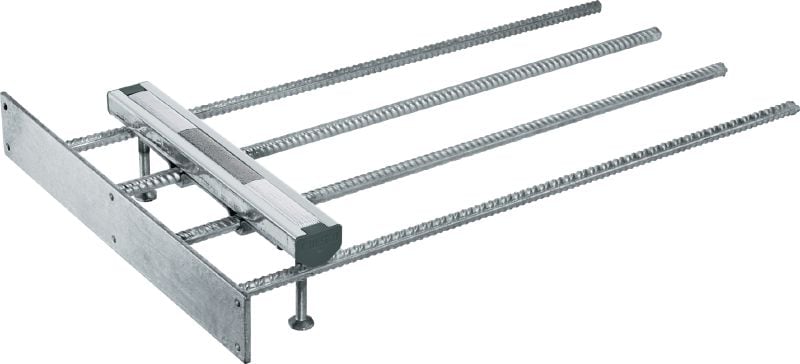

HAC-V Top-of-slab reinforcing bar channel

cast-in anchor channels in standard sizes and lengths for top-of-slab applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised
  • Channel profile: HAC-V 40 EDGE Lite, HAC-V 50 EDGE
  • PROFIS software: Yes

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised
Channel profile
HAC-V 40 EDGE Lite, HAC-V 50 EDGE
PROFIS software
Yes

Documents

Features & Applications

Features

  • Helps overcome many limits of concrete capacity or slab geometry
  • Confinement of concrete edge allows for designs with higher load requirements
  • Suitable for small edge distances and thin concrete slabs
  • Available for various edge distances and preassembled for quicker installation
  • Upgraded performance – tension resistance up to 20% higher than previous HAC anchor channels

Applications

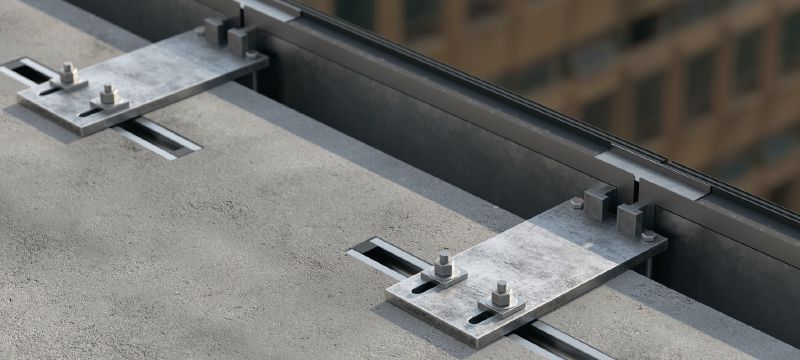

  • Installing curtain wall brackets in top-of-slab position with anchor channels
  • Fastening to thin concrete slabs
  • Fastening of balustrade base plates on top of thin concrete members
  • Seismic-relevant applications and 3D loads

For approval or certificate information, please see individual items.
