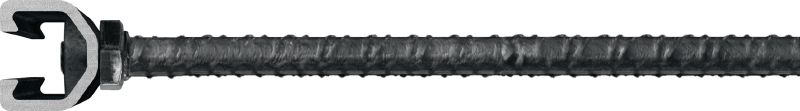

HAC-V Front-of-slab reinforcing bar channel
cast-in anchor channels for front-of-slab applications
- Material, corrosion: Carbon Steel, Hot-Dip Galvanised
- Channel profile: HAC-V 50 XT, HAC-V-T 50 XT, HAC-V-T 70 XT, HAC-V 70 XT, HAC-V 50 XTS, HAC-V-T 50 XTS, HAC-V 70 XTS, HAC-V-T 70 XTS
- PROFIS software: Yes
Technical Data
Material, corrosion
Carbon Steel, Hot-Dip Galvanised
Channel profile
HAC-V 50 XT, HAC-V-T 50 XT, HAC-V-T 70 XT, HAC-V 70 XT, HAC-V 50 XTS, HAC-V-T 50 XTS, HAC-V 70 XTS, HAC-V-T 70 XTS
PROFIS software
Yes
Documents
Features & Applications
Features

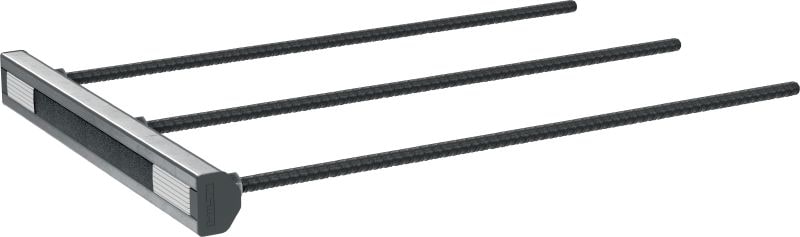

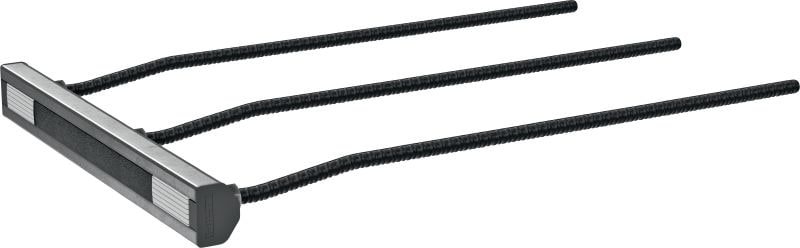

- Safety-tested system of standard HAC anchor channels in combination with reinforcing bar
- Efficient and intuitive to design with PROFIS anchor channel software – a powerful planning tool based on the ESR-3520 compliance evaluation as well as AC232 and ACI 318 requirements

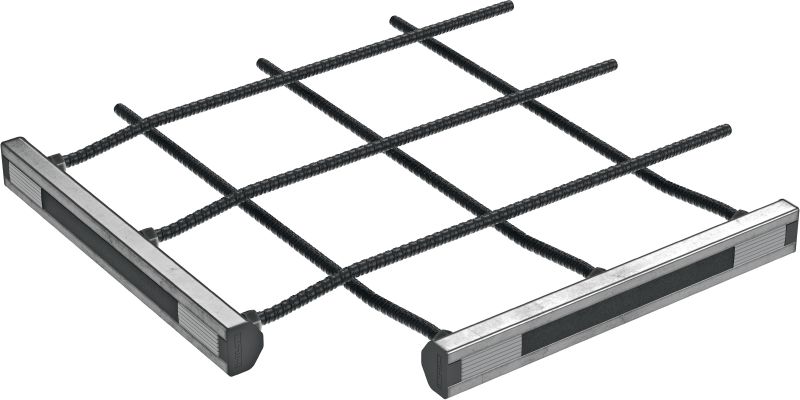

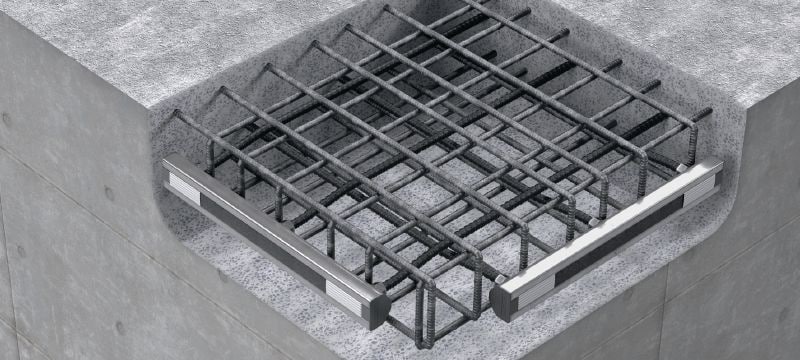

- Two separate corner channels cater to the needs of various building angles
- LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
- Engineering support available – use PROFIS anchor channel software to streamline the design process or contact your local Hilti team for project-specific advice
Applications

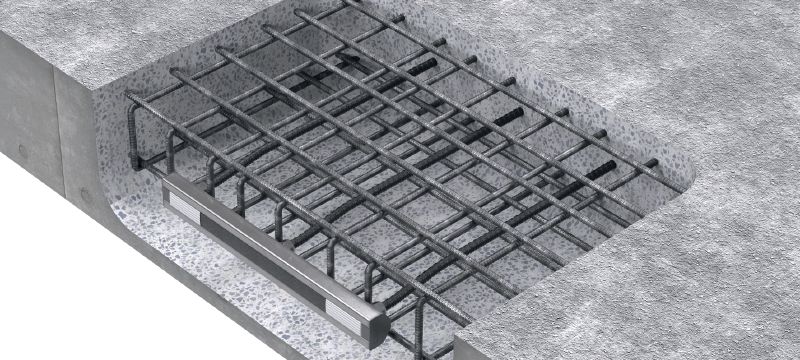

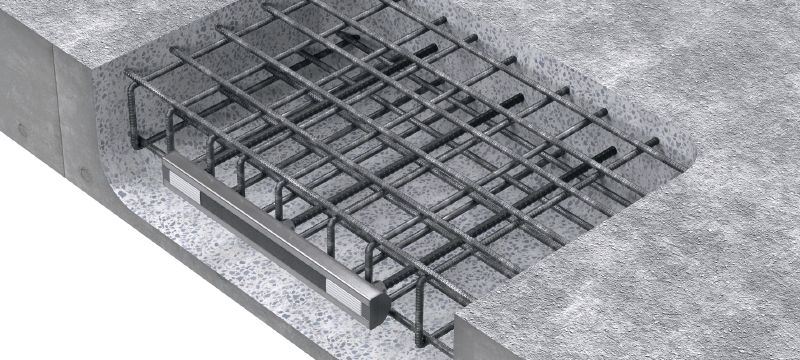

- Front-of-slab applications for curtain wall façades in concrete
- Front-of-slab applications in composite slabs
For approval or certificate information, please see individual items.
