HIT-Glass Positioning aid

Configurator
Documents
Features & Applications
Related Products
L601451 (3606424)
2396734_picture (3668114)
L151989_cropped (3629816)
L151990_cropped (3629836)
L151995_cropped (3629874)

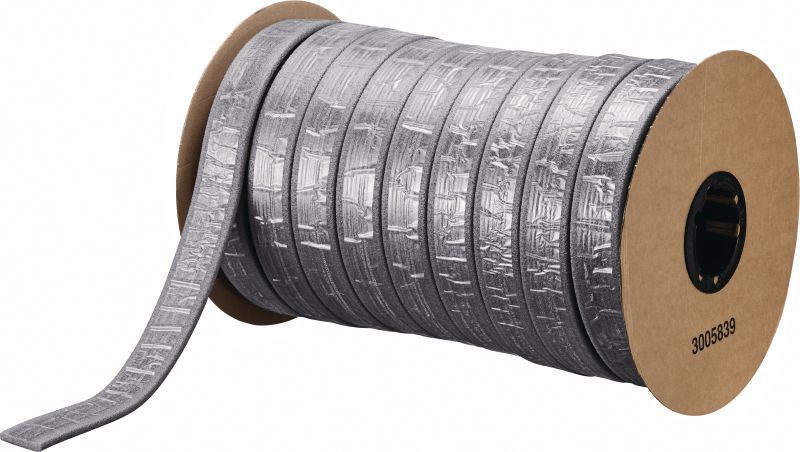

Foam positioning aid to centre and align glass panes in the metal shoe, for use with the HIT-HY 270 adhesive anchor

Choose options

Thickness
  • 9.5 mm
  • 13 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 230.00

Documents

pdf PDS_Hilti HIT-GLASS, English [ 755.6 KB ]

Features & Applications

Features

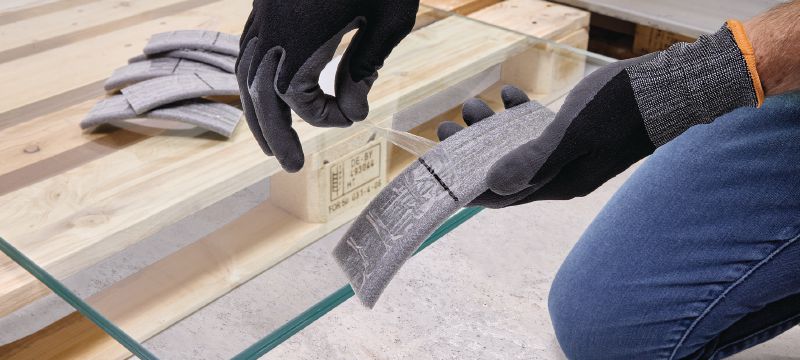

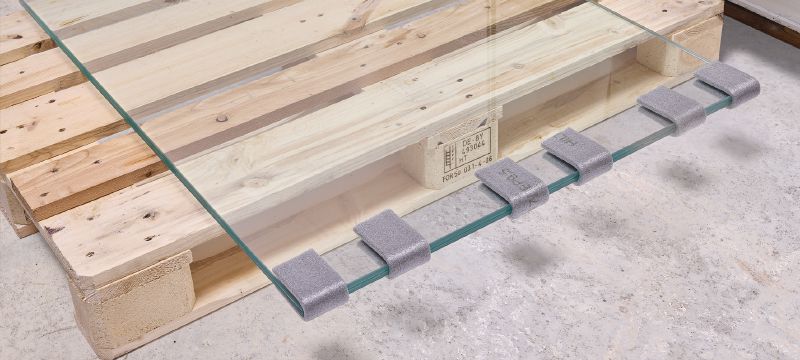

  • Faster glass pane alignment – the positioning aid quickly aligns and holds glass panes securely in the metal profile, enabling easier injection of HIT-HY 270 mortar

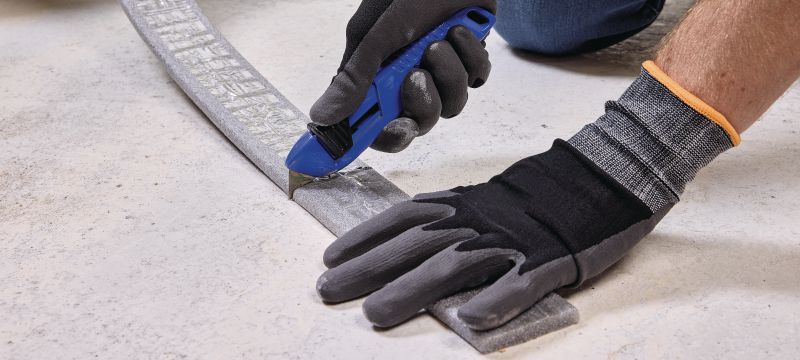

  • Greater flexibility – available as a continuous profile, allowing you to cut the foam to your desired length to adapt to your specific application needs

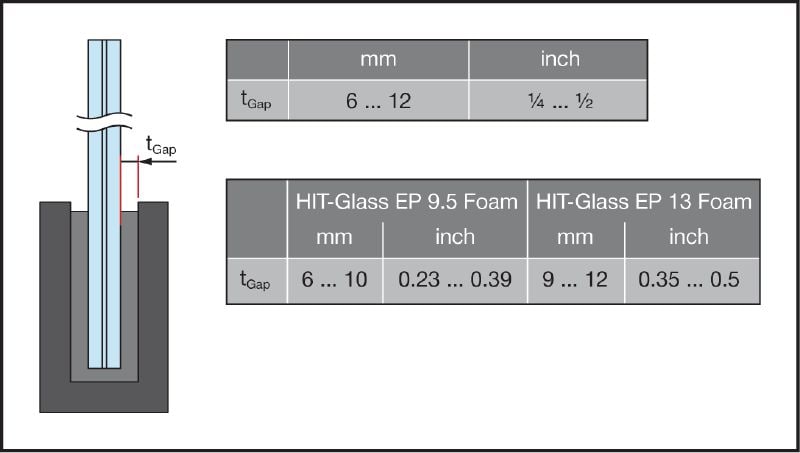

  • Multiple sizes available – foam available in two thicknesses, helping you accommodate the gap between the glass pane and metal profile

Applications

  • Ideal for serial installation of glass panels into metal shoes
  • Fastening glass panes for internal and external glass balustrades and handrails
  • Fastening glass panes on curved and vertically inclined surfaces (up to 35°) in glass balustrade applications

For approval or certificate information, please see individual items.
