MFT-FOX VI L bracket

LCG003216_v1 (221950)
CG003325_v3_cropped (221908)
CG003331_v2_cropped (221898)
L141263_cropped (224361)
LCG002836_v3_cropped (221931)
L141273_cropped (224372)
LCG002837_v4_cropped (221933)
L141283_cropped (224388)
LCG003199_v2_cropped (221938)
L141370_cropped (224478)
LCG003201_v2_cropped (221940)
LCG003202_v2_cropped (221942)
LCG003203_v2_0_cropped (221945)
LCG003203_v2_cropped (221946)
LCG003226_v1_cropped (221961)
25_MFT_FOX_VI_200_L_6_5_11 (221853)

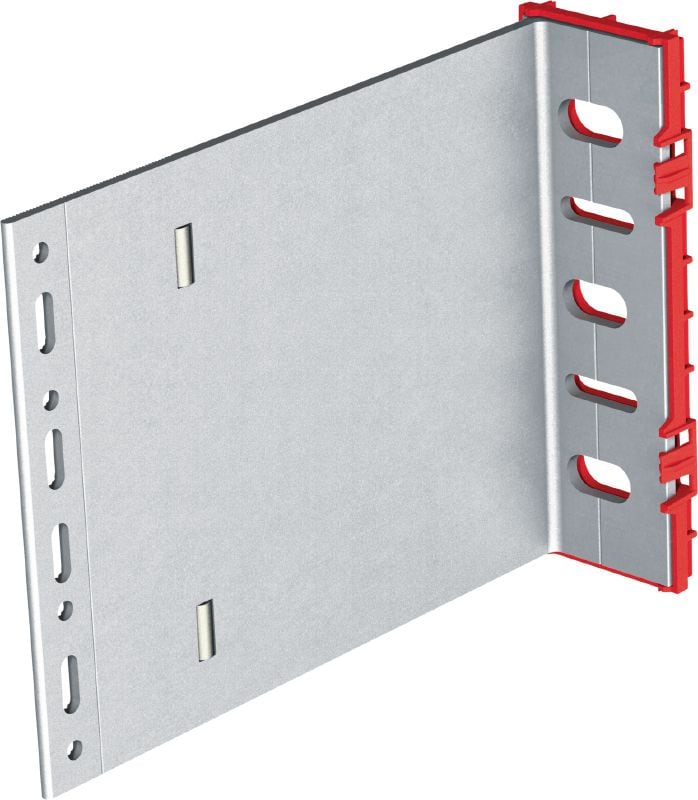

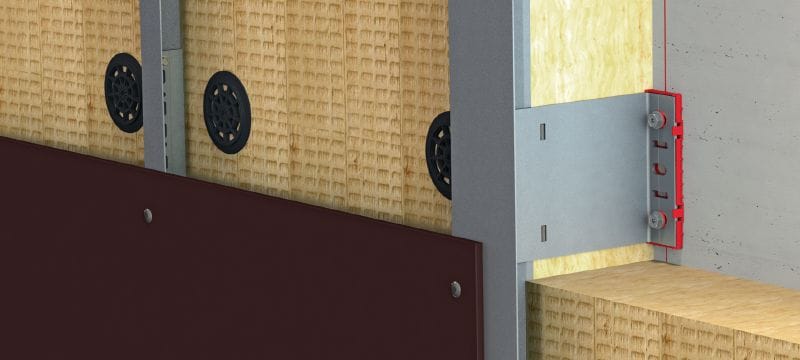

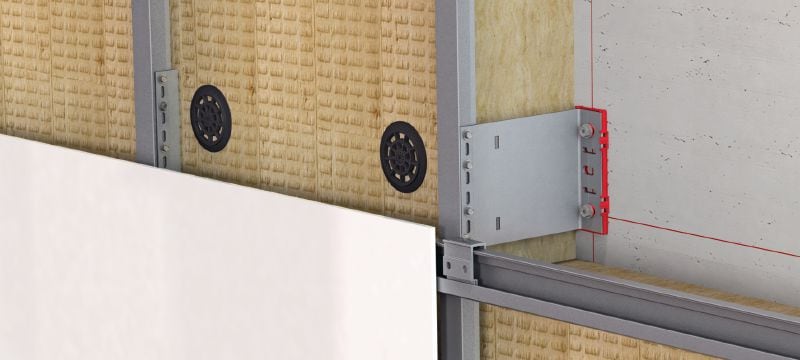

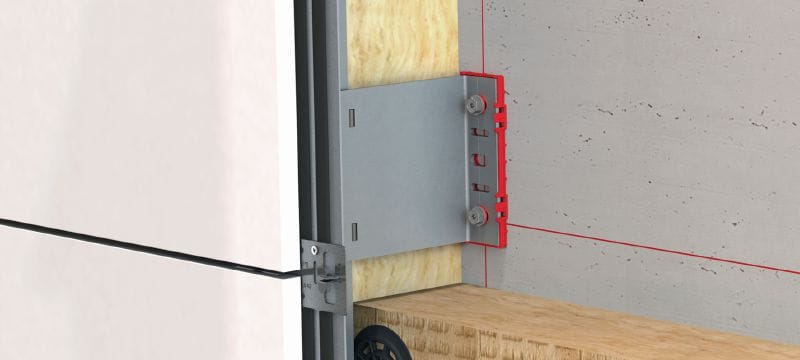

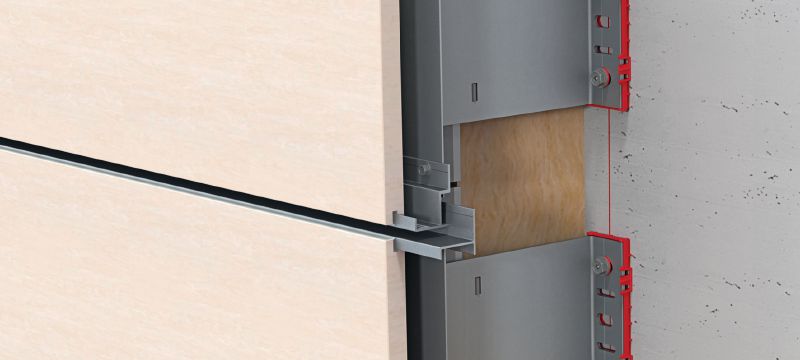

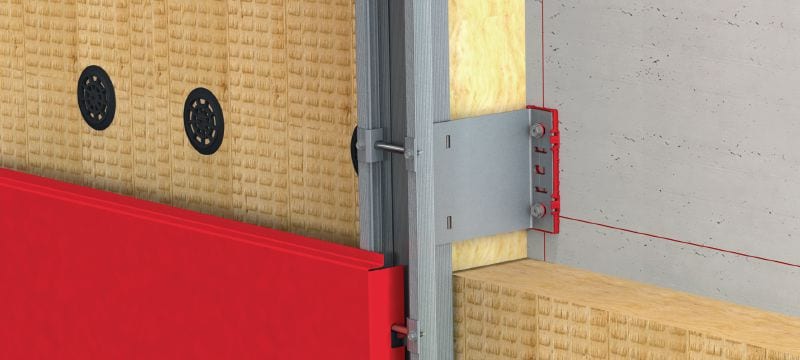

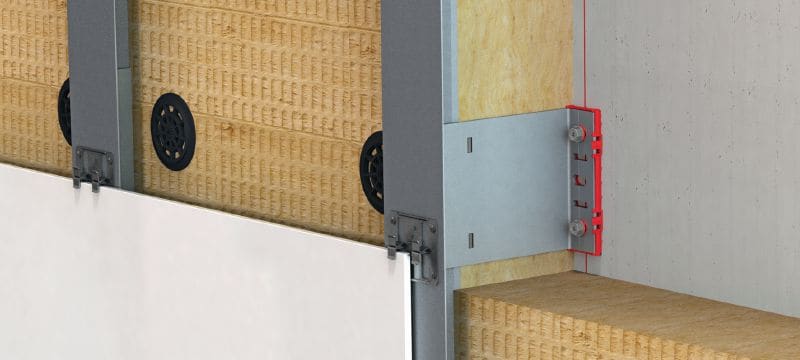

Versatile wall bracket for installing rainscreen façade substructures

  • Material composition: EN AW-6063 T66
  • Insulation material: Polypropylene
  • Thickness insulation material: 6 mm

Choose options

Length
  • 80 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 572.50
AUD 11.45
/
1 Piece

Technical Data

Material composition
EN AW-6063 T66
Insulation material
Polypropylene
Thickness insulation material
6 mm
Width
53 mm
Height
155 mm

Documents

pdf ETA-22-0816 EN, English [ 2.8 MB ]

Features & Applications

Features

  • Labour saving – optimised bracket design and innovative fastening solutions help to lower your total cost of installation
  • Easier installation – optimised helping hand and clearer markings to simplify bracket fastening and rail alignment

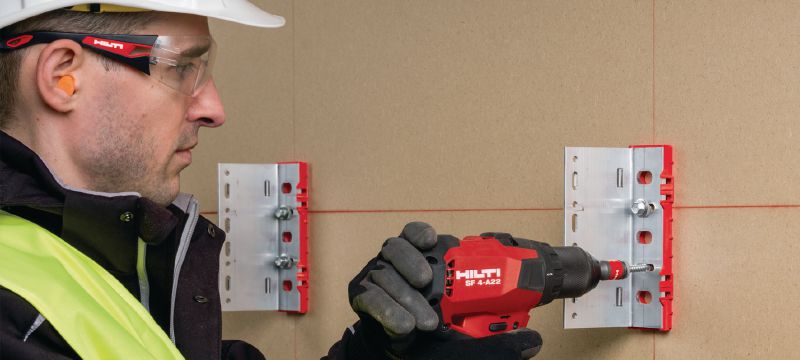

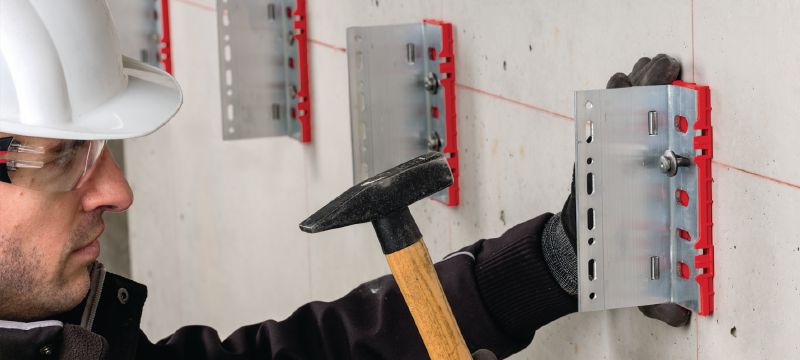

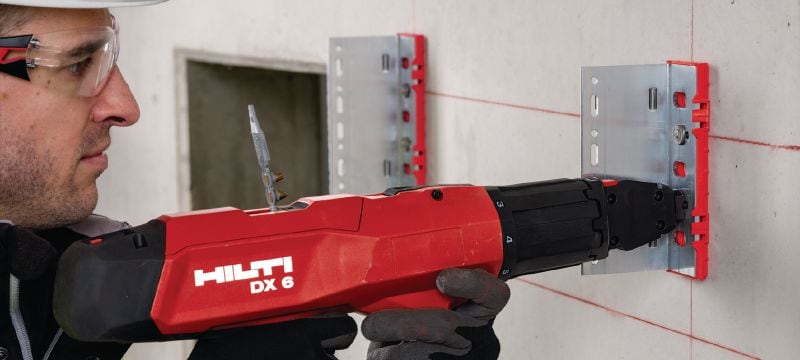

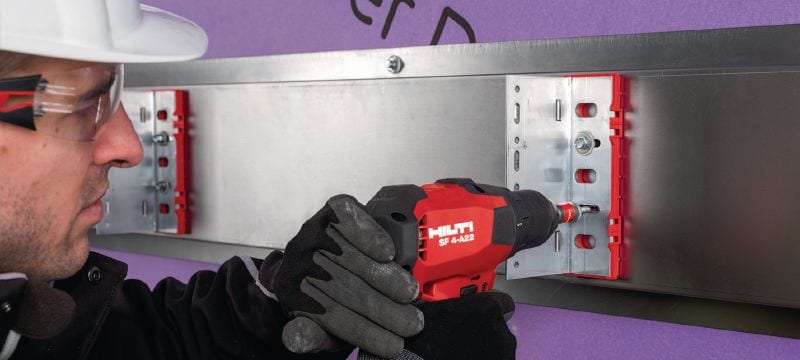

  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
  • Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure

Applications

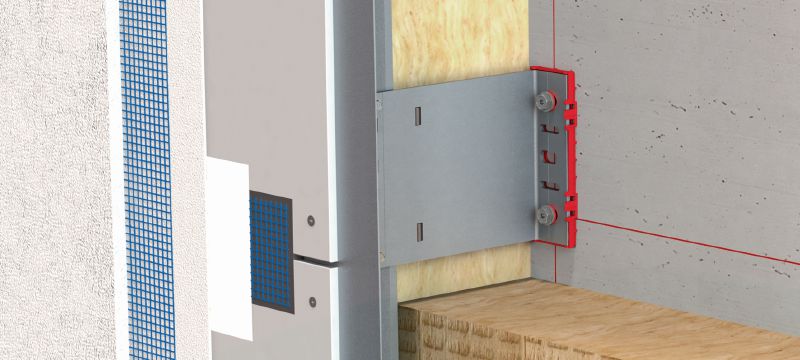

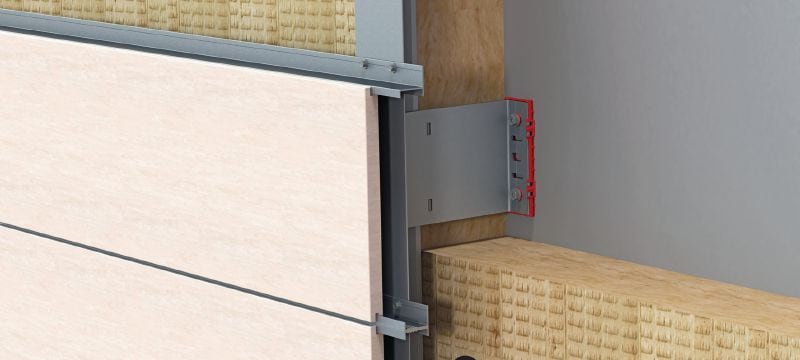

  • Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood

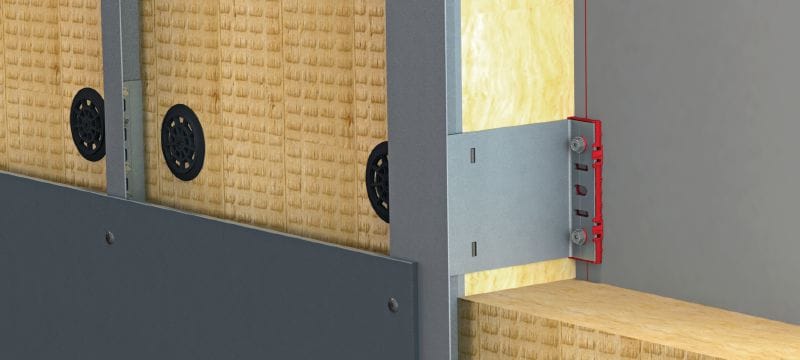

  • Mounting façade substructures on the primary structure (helping hand bracket)

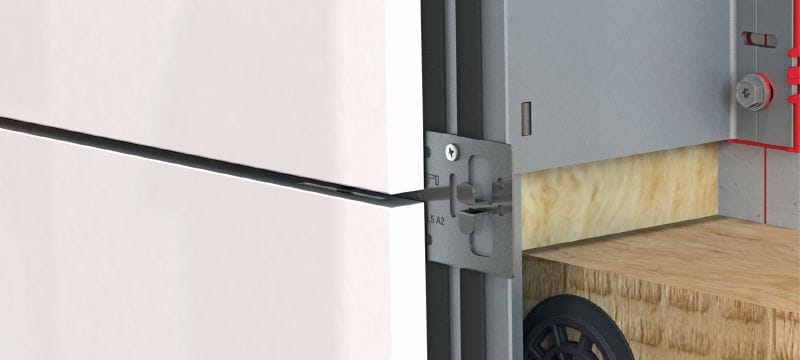

  • Installing vertical support rails
  • Suitable for all façade cladding

For approval or certificate information, please see individual items.
