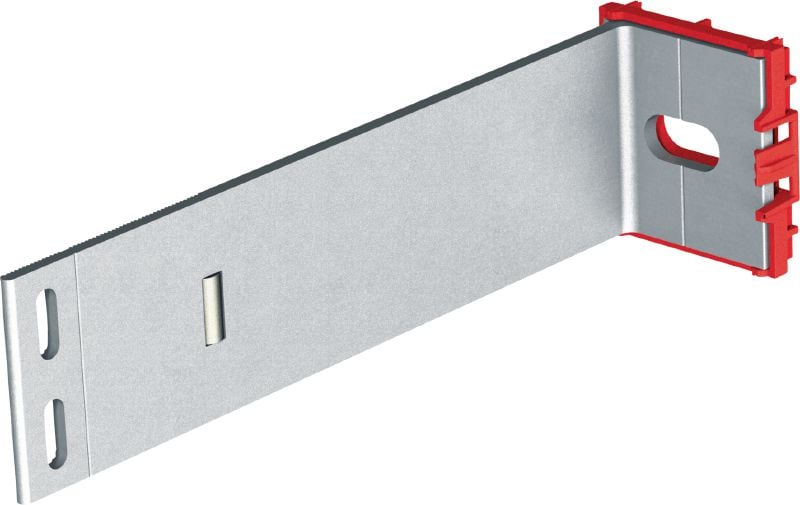

MFT-FOX VI S bracket

Versatile wall bracket for installing rainscreen façade substructures

Length

Hole diameter - D

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 343.00

Technical Data

Material composition

Aluminium EN AW-6063 T66

Insulation material

Polypropylene

Thickness insulation material

6 mm

Width

53 mm

Height

55 mm

pdf ETA-22-0816 EN, English [ 2.8 MB ]

Labour saving – optimised bracket design and innovative fastening solutions help to lower your total cost of installation
Easier installation – optimised helping hand and clearer markings to simplify bracket fastening and rail alignment

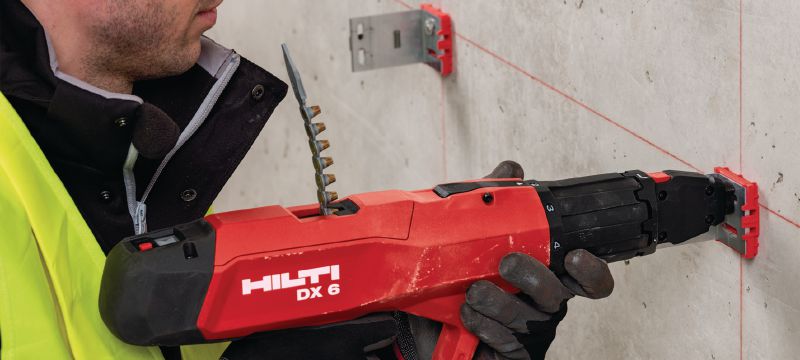

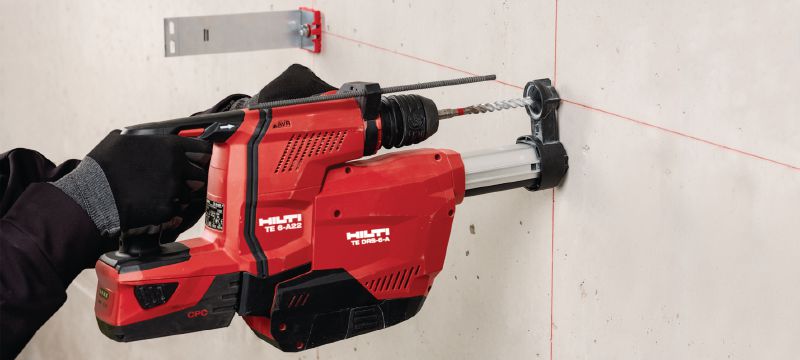

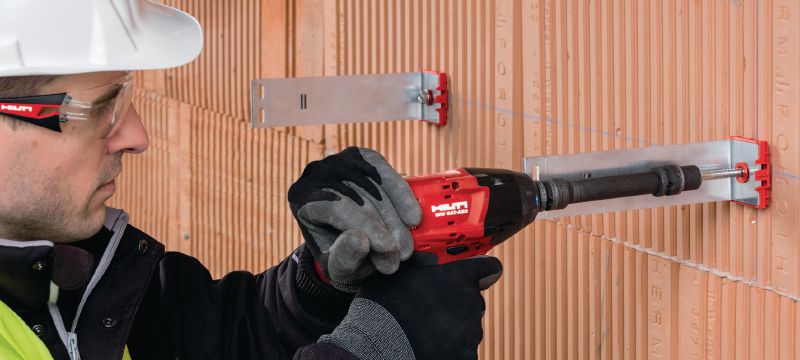

Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure

Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood

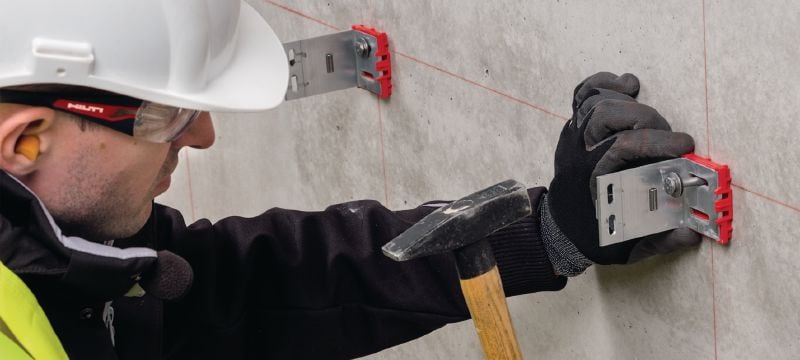

Mounting façade substructures on the primary structure (helping hand bracket)
Installing vertical support rails
Suitable for all façade cladding

For approval or certificate information, please see individual items.
