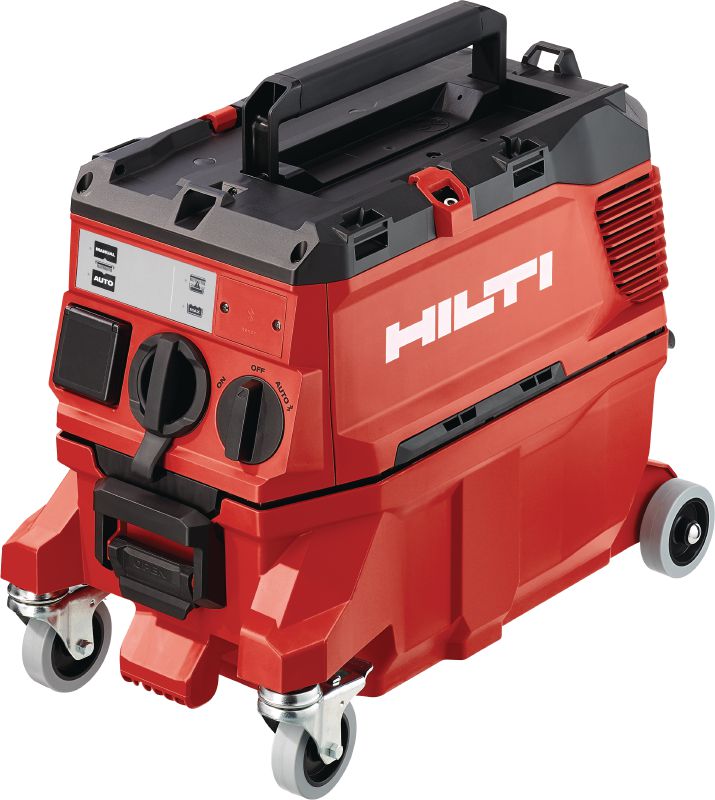

VC 20M-X M-Class dust extractor

Powerful dust extractor for connection with power tools and jobsite clean ups (wet & dry), 15l tank

Air Flow Motor Alone: 74 l/s
Air Flow at Hose End: 39 l/s
Max. Vacuum: 24.5 kPa

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 2,470.00

Technical Data

Air Flow Motor Alone

74 l/s

Air Flow at Hose End

39 l/s

Max. Vacuum

24.5 kPa

Water capacity

9 l

Container capacity

15 l

Dust capacity

15 kg

Dust class

Application

Cleaning, Drilling and breaking, Wood sawing, Cutting and grinding (light, up to 125 mm / 5 in), Drywall and wood sanding, Wet coring, Socket cutting

Integrated power socket

Yes

Max socket output power

1200 W

Power source

Corded

Suction capacity

74 l/s

Supply cord length

7000 mm

Dimensions (LxWxH)

530 x 290 x 415 mm

Weight according EPTA-Procedure 01/2003 without battery

11 kg

Documents

pdf Operating Instruction VC 20X; VC 40X (05), Arabic, Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Kazakh, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Serbian [ 6.1 MB ]

Download

Features & Applications

Features

Sturdy wet/dry dust extractor – built to handle dust extraction and clean-ups in the toughest jobsite conditions
Designed for agility – compact and light enough to move easily around all construction sites
Automatic filter cleaning – adaptive filter cleaning maintains consistent suction performance and activates only when necessary, helping reduce noise and work interruptions
Increased versatility – simply attach your VC 20M-X vacuum top to a VC continuous bag system for more capacity and faster bag swaps to match your application
Easy organisation and transport – keep your gear stored with built-in accessories, including bungee cords for hose and power cable storage and an optional soft bag for spare filters and more

Applications

Dust extraction from grinding, cutting, slitting, drilling and dry coring tools
Wet and dry cleaning
Removing slurry during wet coring applications
Dust extractor for wood and saw dust
M-Class vacuum – for capturing 99.9% of dust with a grain size under two microns

For approval or certificate information, please see individual items.
