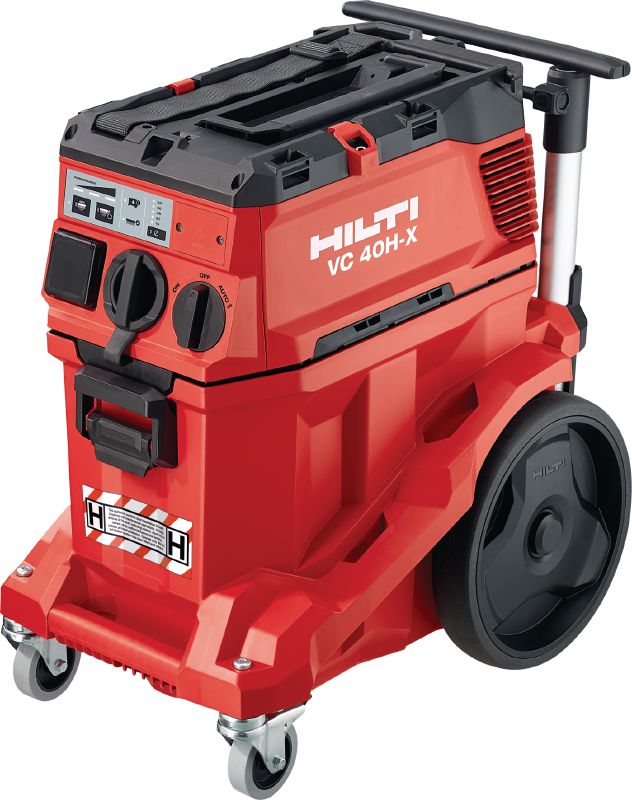

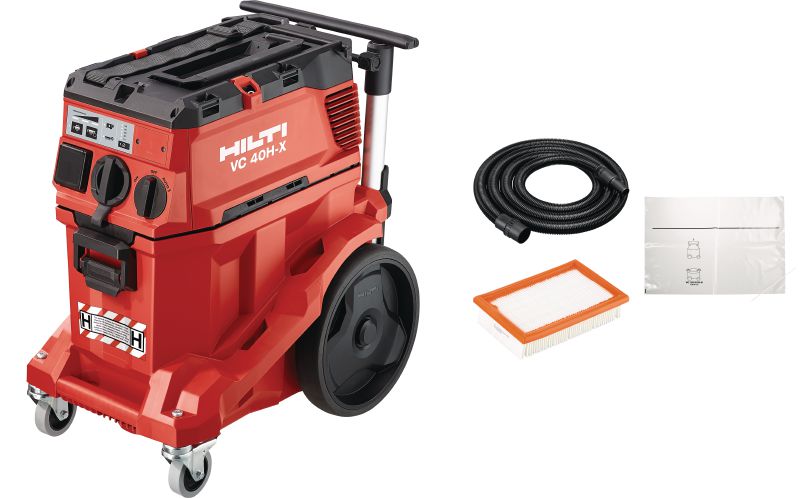

VC 40H-X H-Class dust extractor

Univ. vacuum cleaner VC 40H-X 240V #2320549

Configurator
Technical Data
Documents
Features & Applications
Related Products
L124480_v1 (225034)
L150343 (3446067)
L140245_cropped (211207)
L140298_cropped (211190)
L140318_cropped (211200)

Powerful dust extractor with large container and push-bar for connection with power tools and jobsite clean ups (wet & dry), 30l tank

  • Air Flow Motor Alone: 74 l/s
  • Air Flow at Hose End: 39 l/s
  • Max. Vacuum: 24.5 kPa

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 4,620.00
AUD 4,620.00
/
1 Piece

Technical Data

Air Flow Motor Alone
74 l/s
Air Flow at Hose End
39 l/s
Max. Vacuum
24.5 kPa
Water capacity
22.8 l
Dust capacity
34 kg
Dust class
H
Application
Cleaning, Drilling and breaking, Wood sawing, Cutting and grinding (light, up to 125 mm / 5 in), Drywall and wood sanding, Wet coring, Socket cutting, Cutting and grinding (heavy, above 125 mm / 5 in), Slitting, Water extraction
Integrated power socket
Yes
Max socket output power
1200 W
Power source
Corded
Supply cord length
7000 mm
Dimensions (LxWxH)
560 x 365 x 590 mm
Weight according EPTA-Procedure 01/2003 without battery
14.4 kg

Documents

pdf Operating Instruction VC 20/40H-X, Danish, German, English, Spanish, Finnish, French, Italian, Dutch, Norwegian, Polish, Portuguese, Swedish [ 3.3 MB ]

Features & Applications

Features

  • Sturdy H-class dust extractor built for construction work – integrated push-bar for mobility over longer distances and extra-durable components to withstand the harshest jobsite conditions
  • Extremely durable tyres – help to withstand water, heat and punctures when in use on construction sites
  • Hilti AirBoost automatic, adaptive filter cleaner – cleans the air filter as soon as necessary, keeping dust extraction performance consistently high
  • Performance display – live feedback on the vacuum cleaner's filter status and suction strength
  • Optional auto-start available – enables on/off via Bluetooth® remote control

Applications

  • Dust extraction from grinding, cutting, slitting, drilling and dry coring tools
  • Wet and dry cleaning
  • Removing slurry during wet coring applications
  • Note: this vacuum cleaner is not recommended for use with asbestos. Hilti will not be liable for any damage caused by asbestos
